Documents: SFI-400SS-1-1/2

Series SFI-400 Catalog Page More Info

SFI-400SS-1-1/2 | Sight flow indicator | 1-1/2" body | 5.875" (149 mm) length | 5.000" (127 mm) flange dia. | 2.500" (64 mm) viewing dia. | 8.7 lb (4.0 kg). | Dwyer

Sight flow indicator, 1-1/2" body, 5.875" (149 mm) length, 5.000" (127 mm) flange dia., 2.500" (64 mm) viewing dia., 8.7 lb (4.0 kg).

Brand: DwyerSKU: SFI-400SS-1-1/2

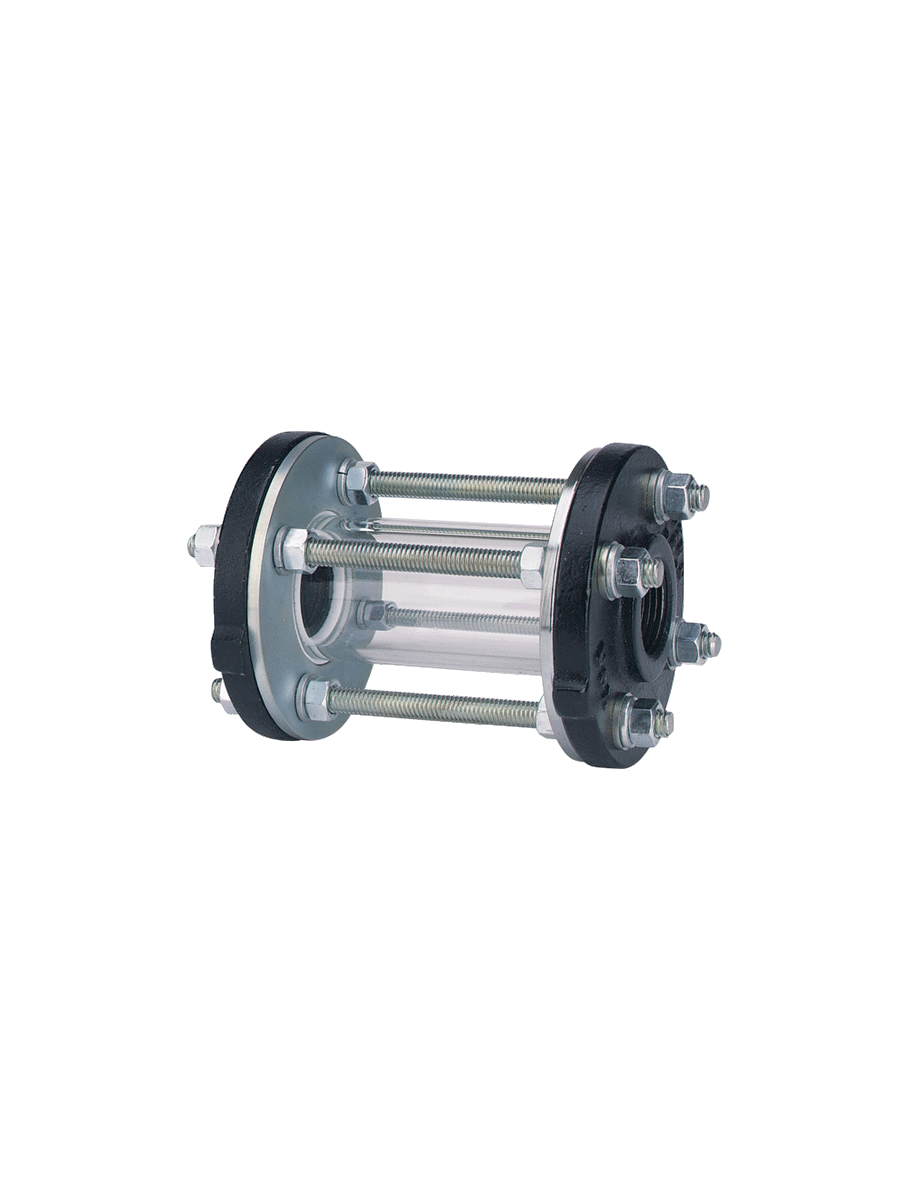

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-400SS-1-1/2

Jump to: Overview & Specifications Reviews

Overview Details for SFI-400SS-1-1/2

See catalog product page for full listing

Series SFI-400 MIDWEST Sight Flow Indicator

Inexpensive Protection for Expensive Equipment and Systems

Series 400 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 400 Series offer threaded or ANSI flanged process connections, tube style viewing, and bodies of cast iron or 316 SS. Featured in the 400 is glass tube construction offering easy flow viewing from any angle.

Specifications

Series: SFI-400 MIDWEST Sight Flow Indicator
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-400 MIDWEST Sight Flow Indicator
Service: Compatible gases and liquids.
Wetted Materials: Tube: Borosilicate; Body: cast iron or 316 SS; Gasket: PTFE.
Temperature Limit: 200°F (93°C).
Pressure Limit: 50 psig (3.45 bar).
Connections: Threaded or flanged.
