Documents: SFI-360-1-1/2

Series SFI-100 & SFI-300 Catalog Page More Info

SFI-360-1-1/2 | Sight flow indicator | 1-1/2" body | 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm) | 7.0 lb (3.2 kg). | Dwyer

Sight flow indicator, 1-1/2" body, 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm), 7.0 lb (3.2 kg).

Brand: DwyerSKU: SFI-360-1-1/2

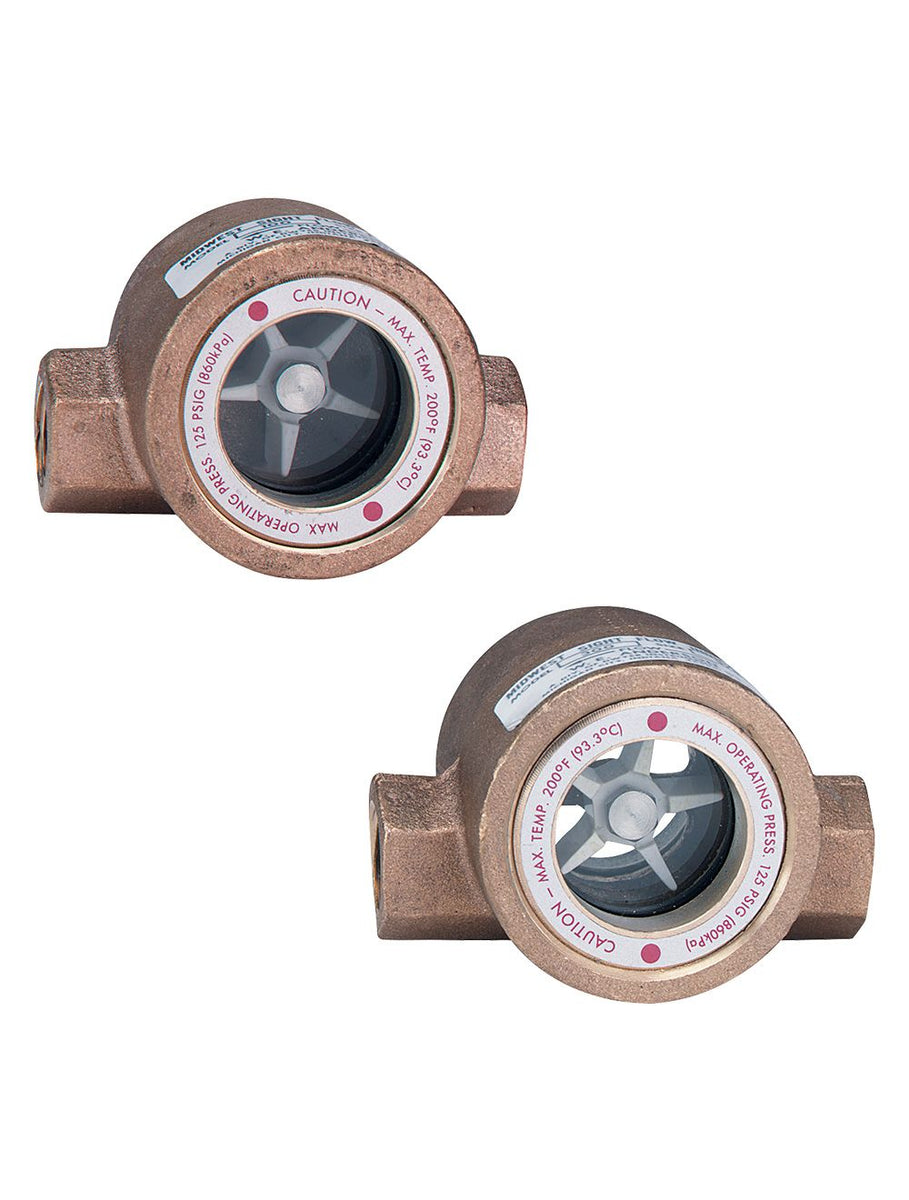

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-360-1-1/2

Jump to: Overview & Specifications Reviews

Overview Details for SFI-360-1-1/2

See catalog product page for full listing

Sight flow indicator | 1-1/2" body | 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm) | 7.0 lb (3.2 kg).

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
