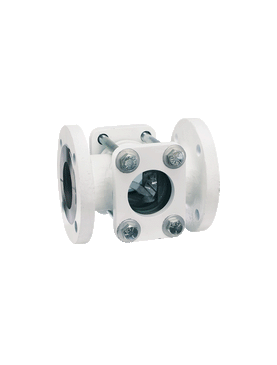

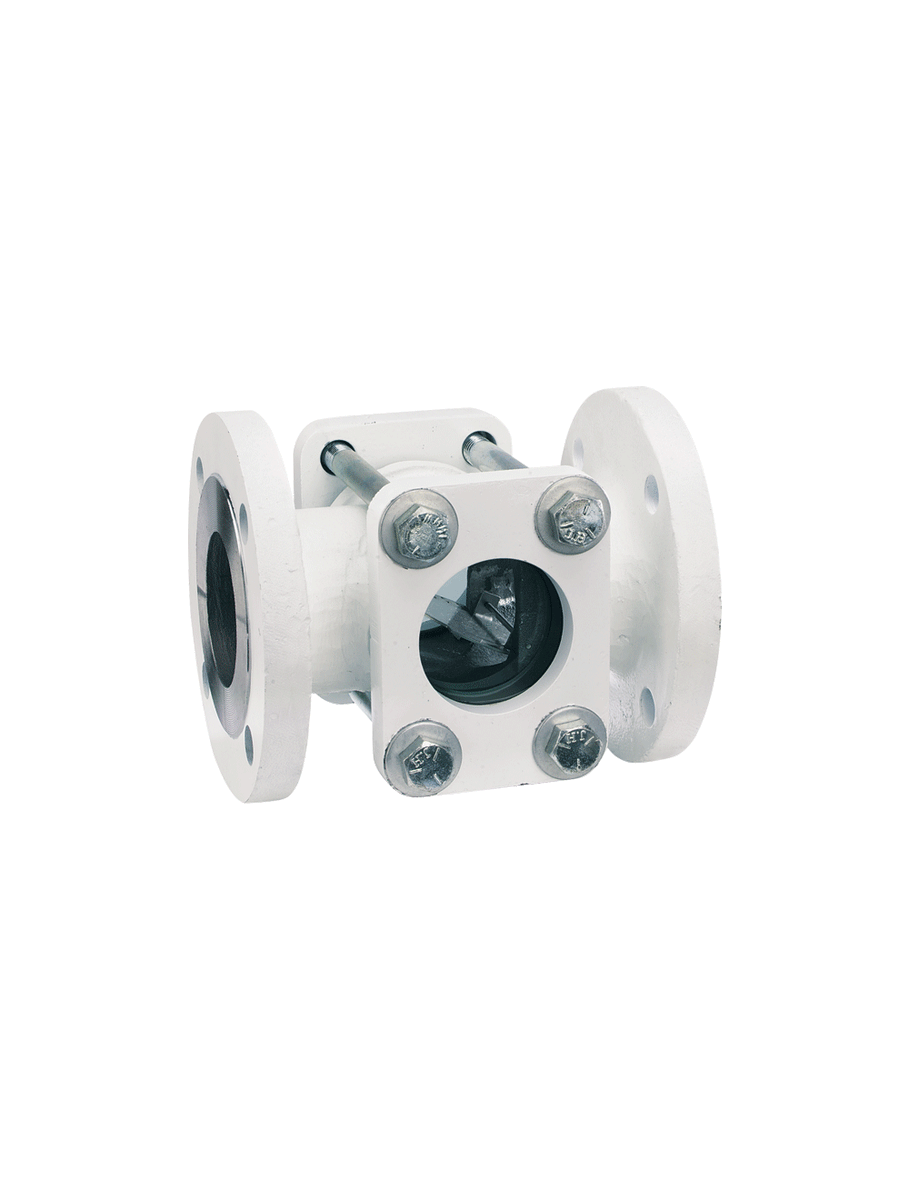

SFI-350FSS-2 | Sight flow indicator | 2" body | 6.500" (165 mm) length | 6.000" (152 mm) flange dia. | 2.313" (58 mm) viewing dia. | 16 lb (7.5 kg). | Dwyer

Sight flow indicator, 2" body, 6.500" (165 mm) length, 6.000" (152 mm) flange dia., 2.313" (58 mm) viewing dia., 16 lb (7.5 kg).

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-350FSS-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SFI-350FSS-2 Documents

Series SFI-300F Catalog Page More Info

Overview

Details for SFI-350FSS-2

See catalog product page for full listing

Series SFI-300F MIDWEST Sight Flow Indicator

Inexpensive Protection for Expensive Equipment and Systems

Series 300°F Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 300°F Series offer ANSI flange process connections, double viewing windows, and bodies of carbon steel or 316 SS. The 350F type has a double window with no moving indicator and the 360F type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

Product Applications

Hydraulic tanks
Pressure vessels
Coolant tanks
Hydraulic lines
Oil reservoirs

Specifications

Series: SFI-300F MIDWEST Sight Flow Indicator
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-300F MIDWEST Sight Flow Indicator
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: 316 SS flapper (360).
Temperature Limit: 200°F (93°C).
Pressure Limit: 150 psig (10.34 bar).
Connections: Flanged.
