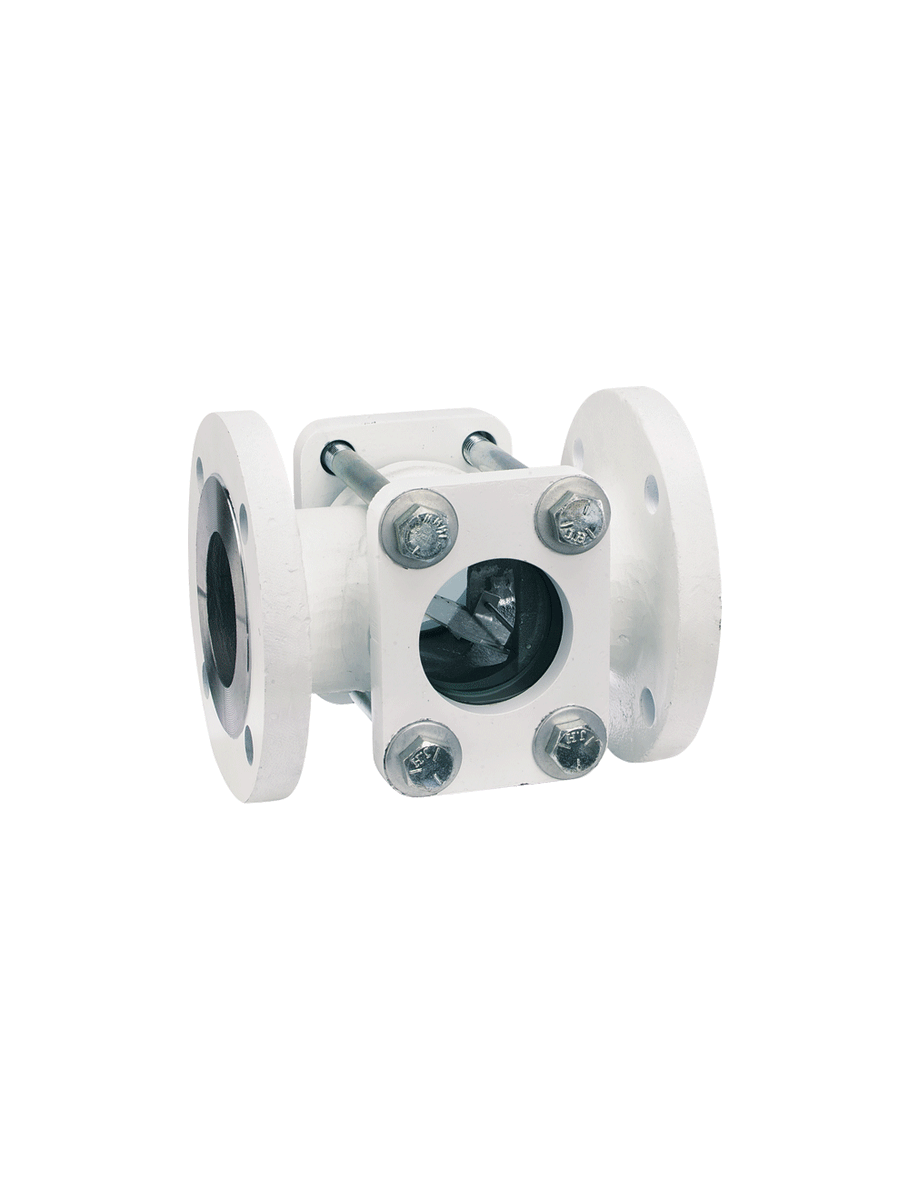

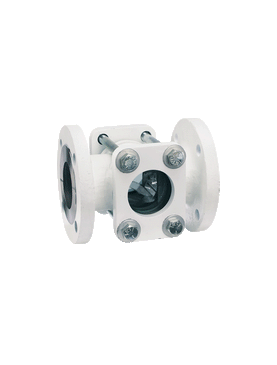

SFI-350FSS-1-1/2 | Sight flow indicator | 1-1/2" body | 6.375" (162 mm) length | 5.000" (127 mm) flange dia. | 2.313" (58 mm) viewing dia. | 12 lb (5.5 kg). | Dwyer
Sight flow indicator, 1-1/2" body, 6.375" (162 mm) length, 5.000" (127 mm) flange dia., 2.313" (58 mm) viewing dia., 12 lb (5.5 kg).
Documents and manuals
Dwyer SFI-350FSS-1-1/2 Documents
Overview
Details for SFI-350FSS-1-1/2
Sight flow indicator | 1-1/2" body | 6.375" (162 mm) length | 5.000" (127 mm) flange dia. | 2.313" (58 mm) viewing dia. | 12 lb (5.5 kg).
Series SFI-300F MIDWEST Sight Flow Indicator
Series 300°F Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 300°F Series offer ANSI flange process connections, double viewing windows, and bodies of carbon steel or 316 SS. The 350F type has a double window with no moving indicator and the 360F type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.
Product Applications
- Hydraulic tanks
- Pressure vessels
- Coolant tanks
- Hydraulic lines
- Oil reservoirs
Specifications
- Series
- SFI-300F MIDWEST Sight Flow Indicator
- Category/Type
- Flow
- Type
- Sight Flow Indicators
- Series
- SFI-300F MIDWEST Sight Flow Indicator
- Service
- Compatible gases and liquids.
- Wetted Materials
- Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: 316 SS flapper (360).
- Temperature Limit
- 200°F (93°C).
- Pressure Limit
- 150 psig (10.34 bar).
- Connections
- Flanged.
