Documents: SFI-350FCS-4

Series SFI-300F Catalog Page More Info

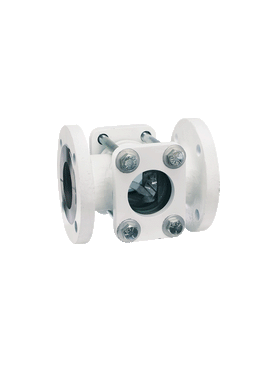

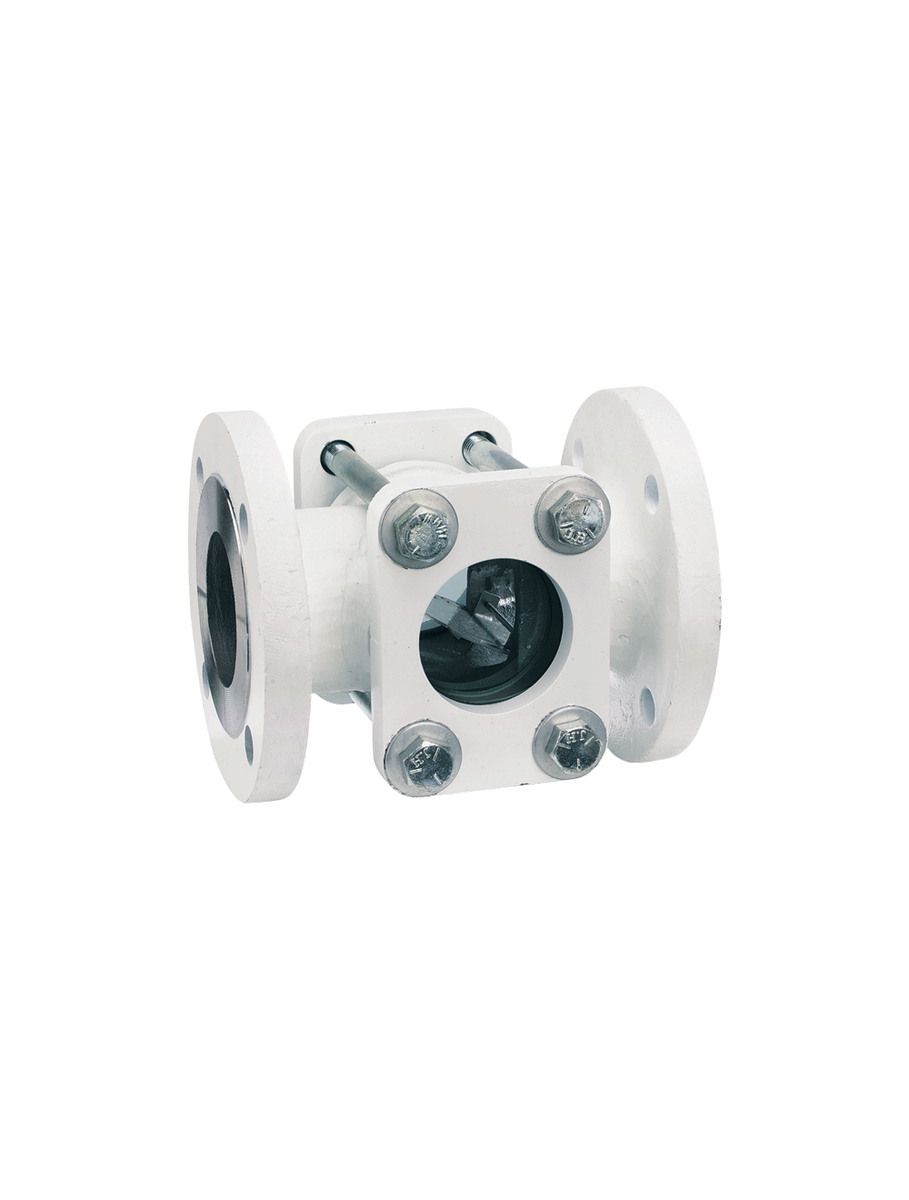

SFI-350FCS-4 | Sight flow indicator | 4" body | 10.250" (260 mm) length | 9.000" (229 mm) flange dia. | 4.000" (102 mm) viewing dia. | 56 lb (25 kg). | Dwyer

Sight flow indicator, 4" body, 10.250" (260 mm) length, 9.000" (229 mm) flange dia., 4.000" (102 mm) viewing dia., 56 lb (25 kg).

Brand: DwyerSKU: SFI-350FCS-4

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-350FCS-4

Jump to: Overview & Specifications Reviews

Overview Details for SFI-350FCS-4

See catalog product page for full listing

Series SFI-300F MIDWEST Sight Flow Indicator

Inexpensive Protection for Expensive Equipment and Systems

Series 300°F Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 300°F Series offer ANSI flange process connections, double viewing windows, and bodies of carbon steel or 316 SS. The 350F type has a double window with no moving indicator and the 360F type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

Product Applications

Hydraulic tanks
Pressure vessels
Coolant tanks
Hydraulic lines
Oil reservoirs

Specifications

Series: SFI-300F MIDWEST Sight Flow Indicator
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-300F MIDWEST Sight Flow Indicator
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: 316 SS flapper (360).
Temperature Limit: 200°F (93°C).
Pressure Limit: 150 psig (10.34 bar).
Connections: Flanged.
