SFI-100T-3/4-A711T | Brass sight flow indicator with A-711T sensor | range 3-35 GPM (11.4-132.5 LPM) | 3/4" female NPT. | Dwyer

Brass sight flow indicator with A-711T sensor, range 3-35 GPM (11.4-132.5 LPM), 3/4" female NPT.

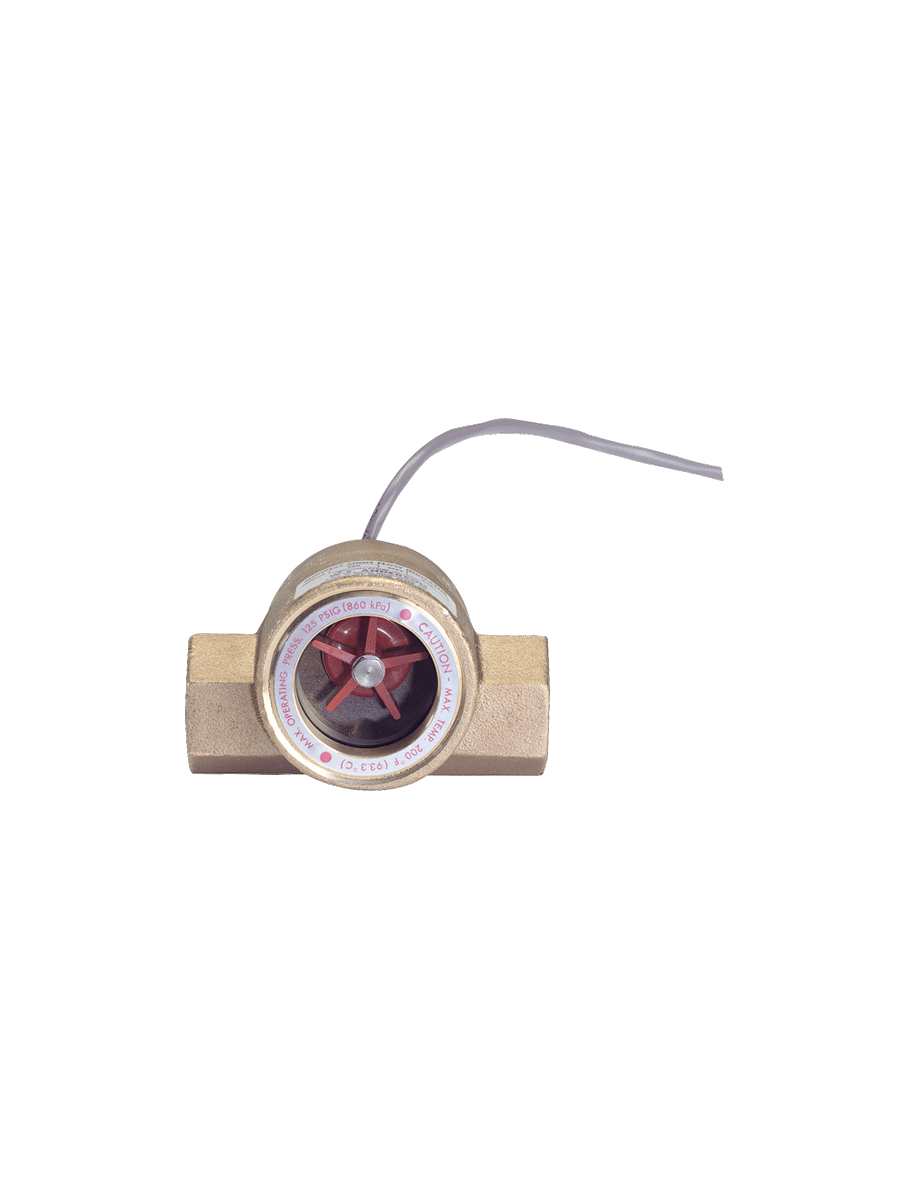

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-100T-3/4-A711T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SFI-100T-3/4-A711T Documents

Instruction Manual Series SFI-100T Catalog Page More Info

Overview

Details for SFI-100T-3/4-A711T

See catalog product page for full listing

Brass sight flow indicator with A-711T sensor | range 3-35 GPM (11.4-132.5 LPM) | 3/4" female NPT.

Series SFI-100T Sight Flow Indicator/Transmitter

Output for Flow Rate and Totalization

The Series SFI-100T Sight Flow Indicators & Transmitters is a low cost and durable flow transmitter that combines our popular 100 Series Sight Flow Indicator with our A-711T output sensor for visual and remote monitoring of flow. The A-711T output sensor has two pulsed voltage signals with one providing a 5 VDC pulse, the other a pulse of the input supply voltage used, ranging from 8 to 28 VDC and a pulsed output with a frequency change proportional to the flow rate.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Monitor chilled or hot water flow
Monitoring water flow in chillers
Cooling and lubrication circuits
HVAC systems

Constructed of a robust, solid brass body and a tempered glass window
Bright red impeller yields great visual indication of flow through the window
Front window can be easily unscrewed to clean out the sight flow indicator
Ideal for outdoor applications with weatherproof body that is unaffected by UV light

Specifications

Series: SFI-100T Sight Flow Indicator/Transmitter
Category/Type: Flow
Type: Flow Transmitters
Series: SFI-100T Sight Flow Indicator/Transmitter
Service: Compatible fluids.
Wetted Materials: Body: Brass; Window: Tempered glass; Rotor: Red UV stabilized PBT; Rotor pin: 316 SS; Thrust washers: 300 series SS; Gasket: Buna-N.
Temperature Limits: -20 to 200°F (-29 to 93°C).
Pressure Limits: 125 psi (8.62 bar).
Viscosity Maximum: 200 SSU.
Weight: SFI Only: 1.5 lb (0.7 kg); with A-711T: 1.8 lb (0.8 kg).
: ELECTRICAL SPECIFICATIONS
Temperature Limits: -20 to 212°F (-29 to 100°C).
Power Requirements: 8 to 28 VDC.
Output Signal: White lead: 5 VDC; Green lead: 8 to 28 VDC equal to supply voltage. Pulsed output with frequency rate proportional to flow rate.
Accuracy: ±5% of FS.
Frequency Output Range: 0 to 100 Hz.
Mounting Orientation: Horizontal.
Electrical Termination: Black lead: Ground; White lead: 5 VDC out pulse; Green lead: 8 to 28 VDC out pulse; Red lead: 8 to 28 VDC supply.
