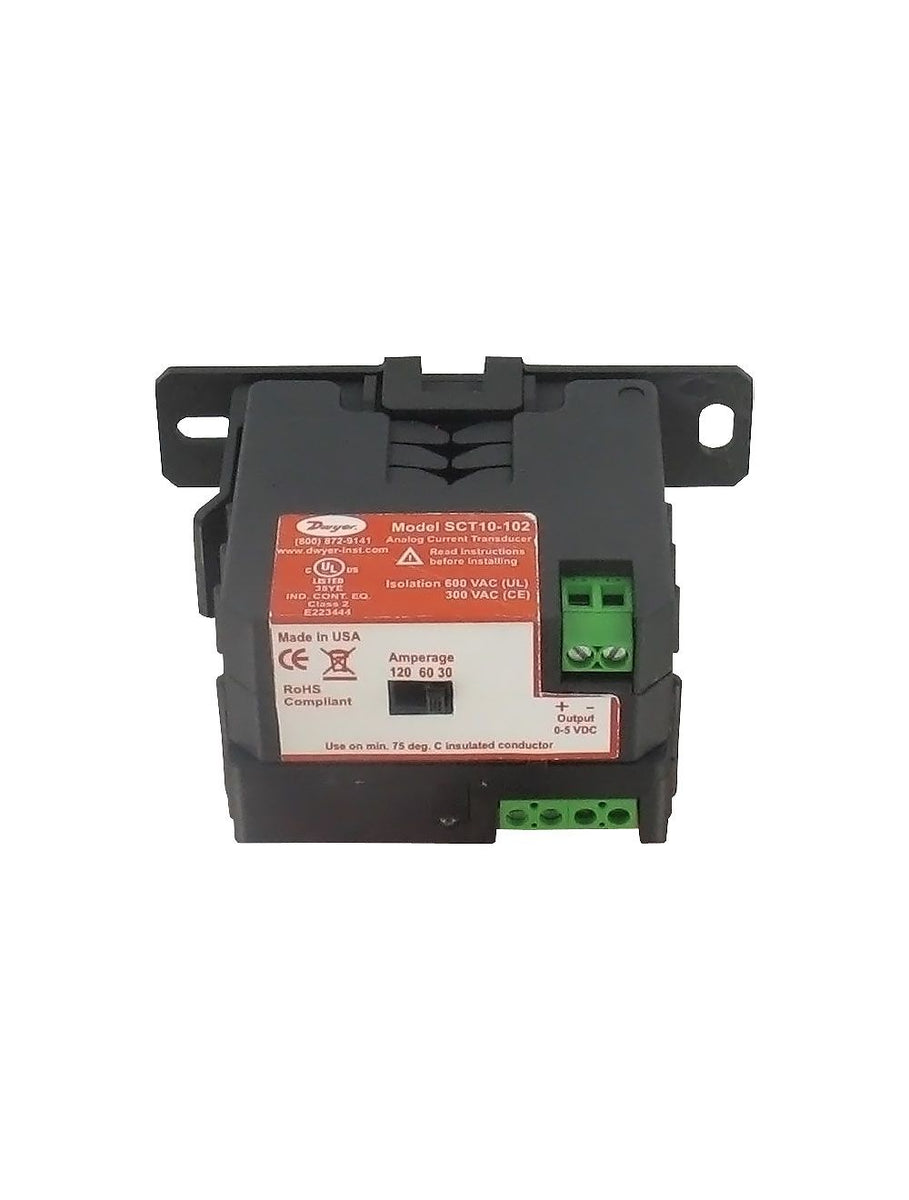

SCT10-102 | Current transducer | split core | 0-5 VDC output | range 30/60/120A | Dwyer

Current transducer, split core, 0-5 VDC output, range 30/60/120A

Brand: DwyerSKU: SCT10-102
Dwyer | SCT10-102
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCT10-102

Overview Details for SCT10-102

See catalog product page for full listing

Current transducer | split core | 0-5 VDC output | range 30/60/120A

Series SCT Current Transformer

Optional Auxiliary, Relay Output, Split Core

The Series SCT Current Transformers continuously measure the current consumption of pumps, fans, boilers, solar panels and chillers for use in energy monitoring. Current or voltage outputs can be scaled using a slider switch to select between three factory set ranges. Split core configuration allows the current transformer to be installed on new and existing installations. Snap-on mounting bracket allows for quick installation of replacement transformers. An optional 10 A command relay can snap onto the current switch, which eliminates the need to mount an additional relay.

Specifications

Series
SCT Current Transformer
Category/Type
Process Control
Type
Current Transformers / Switches
Series
SCT Current Transformer
Amperage Range
30/60/120 A or 20/100/150 A (depending on model).
Continuous Operating Current
120 A or 150 A (depending on model).
Output
4 to 20 mA; 0 to 5 VDC; 0 to 10 VDC (depending on model). Optionalrelay NO SPST; 10 A @ 260 VAC; 5 A @ 30 VDC.
Power Requirements
Self-powered or 24 VDC (depending on model).
Accuracy
±2% from 10 to 100% of selected range.
Temperature Limits
5 to 140°F (-15 to 60°C).
Humidity Limits
0 to 95% non-condensing.
Response Time
2 s.
Isolation Voltage
600 VAC RMS.
Frequency
50/60 Hz.
Enclosure Rating
UL; V-O flammability rated; type 66 nylon.
Agency Approvals
CE; RoHS; cUL; UL.
