SCS-211125 | Split core current switch with adjustable set point | amperage range 1.25 to 135 A. | Dwyer

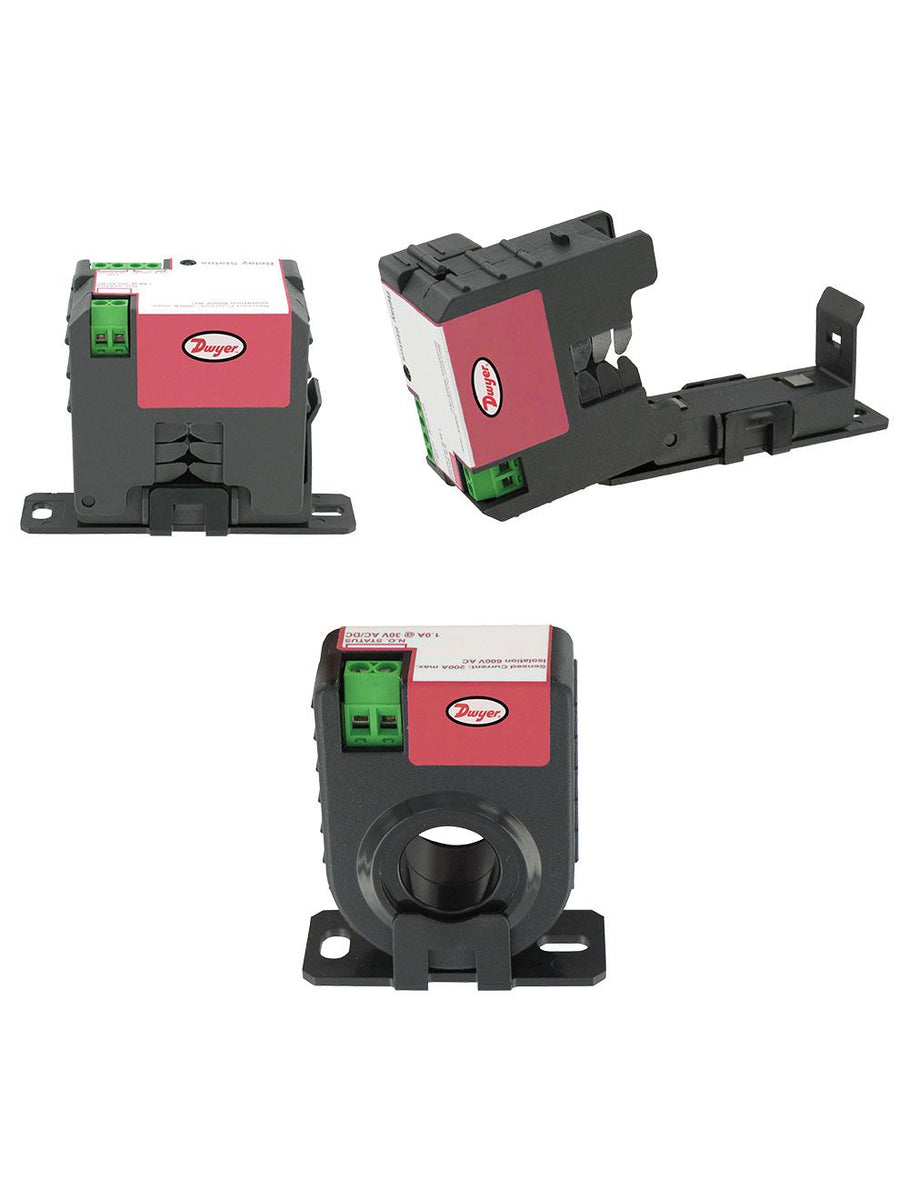

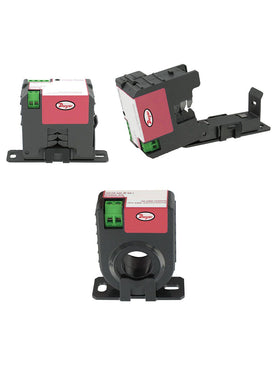

Split core current switch with adjustable set point, amperage range 1.25 to 135 A.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCS-211125
Documents and manuals
Dwyer SCS-211125 Documents
Overview
Details for SCS-211125
See catalog product page for full listing
Split core current switch with adjustable set point | amperage range 1.25 to 135 A.
Series SCS Current Switch
Optional Relay Output, Solid or Split Core Case
The Series SCS Low Cost Current Switches are ideal for monitoring whether fans, pumps, or motors are operating. The current flowing through the core of the device powers the circuit without an external power supply. All models have a built in solid state output and are easy to install. Optional LED's and 10 Amp relay modules are available. The Series SCS is available in both Split and Solid Core configurations.
Product Applications
- BAS
- HVAC
- Integral mounting flange for quick installation
- Solid core or split core configurations
Specifications
- Series
- SCS Current Switch
- Category/Type
- Process Control
- Type
- Current Transformers / Switches
- Series
- SCS Current Switch
- Output
- Isolated; 1 A @ 30 VAC/DC max; NO.
- External Relay
- SPST N.O.; 10A at 260 VAC (5A at 30 VDC).
- Power Requirements
- None; self-powered.
- Temperature Limits
- 5 to 140°F (-15 to 60°C).
- Isolation Voltage
- 600 VAC RMS.
- Frequency
- 50/60 Hz.
- Enclosure Rating
- UL; 94 V-O flammability rated; ABS plastic housing.
- Agency Approvals
- CE; cUL; UL.
