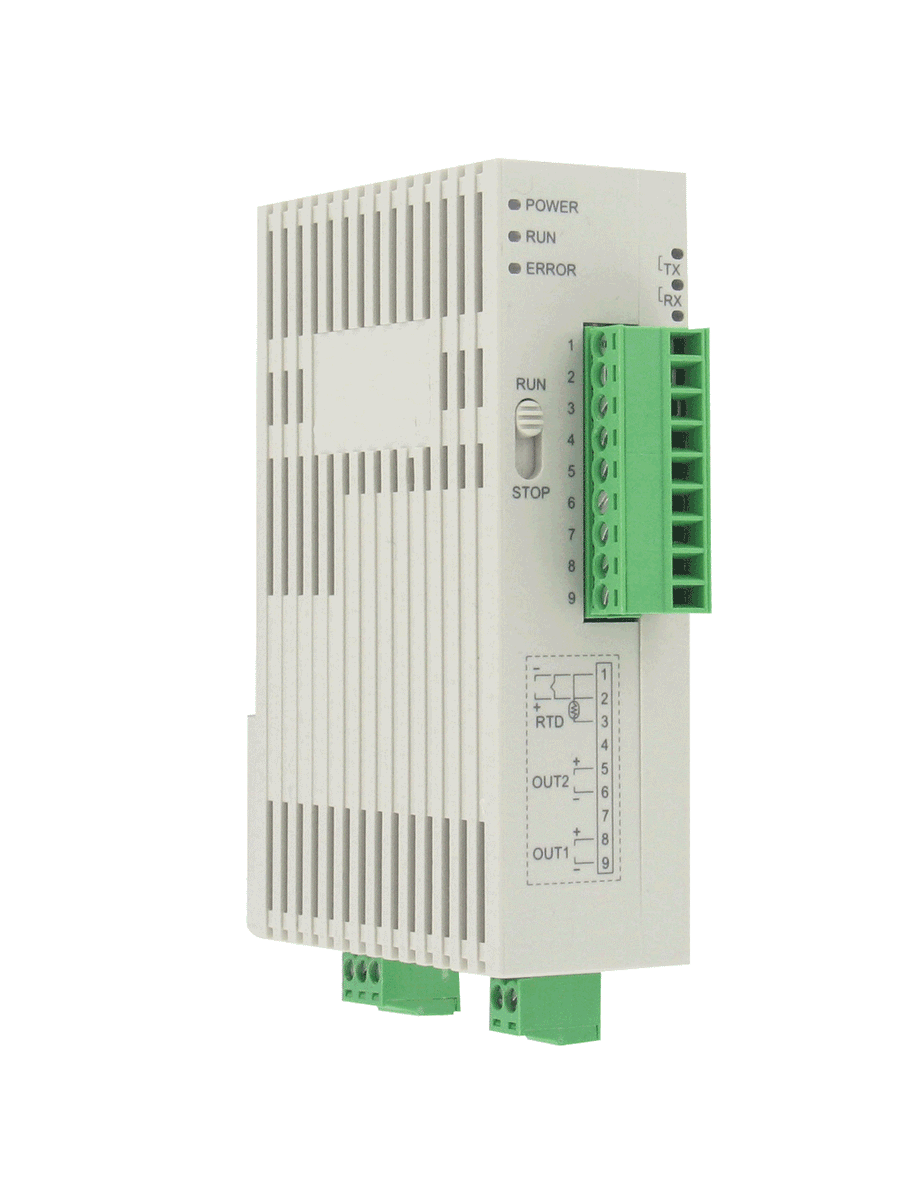

SCD-1053 | DIN rail temperature/process master controller | (1) current output and (1) relay output. | Dwyer
DIN rail temperature/process master controller, (1) current output and (1) relay output.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCD-1053
Documents and manuals
Dwyer SCD-1053 Documents
Overview
Details for SCD-1053
See catalog product page for full listing
DIN rail temperature/process master controller | (1) current output and (1) relay output.
Series SCD DIN Rail Temperature/Process Controller
Universal Inputs, Up to 8 PID Loops, Modbus® Communications
The Series SCD DIN Rail Temperature/Process Controllers offer multiple PID loops in a compact size. Each SCD-1000 master controller can be combined with up to seven SCD-2000 slave controllers without any wires. Each controller has one universal input, one relay output and one user selected output.
Product Applications
- Oven, boiler, or chiller control
- Hot plates/melt pots
- Packaging equipment
- Environmental chambers
- Medical equipment
- Food service equipment
- Expandable from 1 to 8 process control loops
- Universal transmitter or temperature sensor inputs
- RS-485 Modbus® communication
- Dual loop or single loop/alarm output control
Specifications
- Series
- SCD DIN Rail Temperature/Process Controller
- Category/Type
- Process Control
- Type
- Process Controllers
- Series
- SCD DIN Rail Temperature/Process Controller
- Inputs
- Thermocouple; RTD; DC linear voltage; and DC currents.
- Supply Voltage
- 24 VDC.
- Power Consumption
- 3 W.
- Operating Temperature
- 32 to 122ºF (0 to 50ºC).
- Memory Backup
- Non-volatile.
- Control Output Ratings
- Relay: 3 A @ 250 VAC resistive; Voltage pulse: 12 VDC; max. output current: 40 mA; Current: 4 to 20 mA output; Linear voltage: 0 to 10 VDC.
- Communication
- RS-485 Modbus® A-5-11/RTU communication protocol.
- Weight
- 2.7 oz (76.5 g).
- Agency Approvals
- CE; RoHS; cULus.
