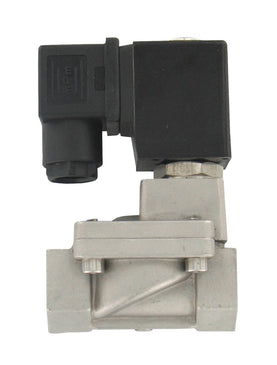

SBSV-S8F1 | 2-way 316SS solenoid valve | 1-1/2" | 7.28-188.5 psi | FKM seal | 110 VAC | Dwyer
2-way 316SS solenoid valve, 1-1/2", 7.28-188.5 psi, FKM seal, 110 VAC
Documents and manuals
Dwyer SBSV-S8F1 Documents
Overview
Details for SBSV-S8F1
2-way 316SS solenoid valve | 1-1/2" | 7.28-188.5 psi | FKM seal | 110 VAC
Series SBSV-S SS Solenoid Valves – 2-Way Guided NC
The Series SBSV-S Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in SS with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SBSVS valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.
Product Applications
- Wide variety of applications, suitable air, gas, water and other liquids
- Can be oriented in any position
- Compact design
- Field replaceable coils
Specifications
- Series
- SBSV-S SS Solenoid Valves – 2-Way Guided NC
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Solenoid
- Series
- SBSV-S SS Solenoid Valves – 2-Way Guided NC
- Service
- Compatible gases and liquids.
- Line Size
- 1/8 to 2" NPT.
- End Connections
- Female NPT.
- Operating Pressure
- >1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar);3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar).
- Pressure Limit
- 246.6 psi (17 bar).
- Wetted Material
- Body: 316 SS; Spring; 304 SS; Seal: Fluoroelastomer.
- Temperature Limits
- >Process: 176°F (80°C);Ambient: 32 to 149°F (0 to 65°C).
- Power Requirements
- Standard: 110 VAC; Optional: 220 VAC; 24 VDC; 24 VAC consult factory. See Series SRC Solenoid Coils.
- Power Consumption
- See table on catalog page.
- Enclosure Rating
- NEMA 13 (IP54).
- Electrical Connection
- DIN connection.
- Other Materials
- Nylon.
- Mounting Orientation
- Any position; best if solenoid vertically abovevalve.
- Weight
- See table on catalog page.
- Type of Operation
- NC.
- Agency Approvals
- CE.
