SBSV-S3F1 | 2-way 316SS solenoid valve | 3/8" | 7.28-188.5 psi | FKM seal | 110 VAC | Dwyer

2-way 316SS solenoid valve, 3/8", 7.28-188.5 psi, FKM seal, 110 VAC

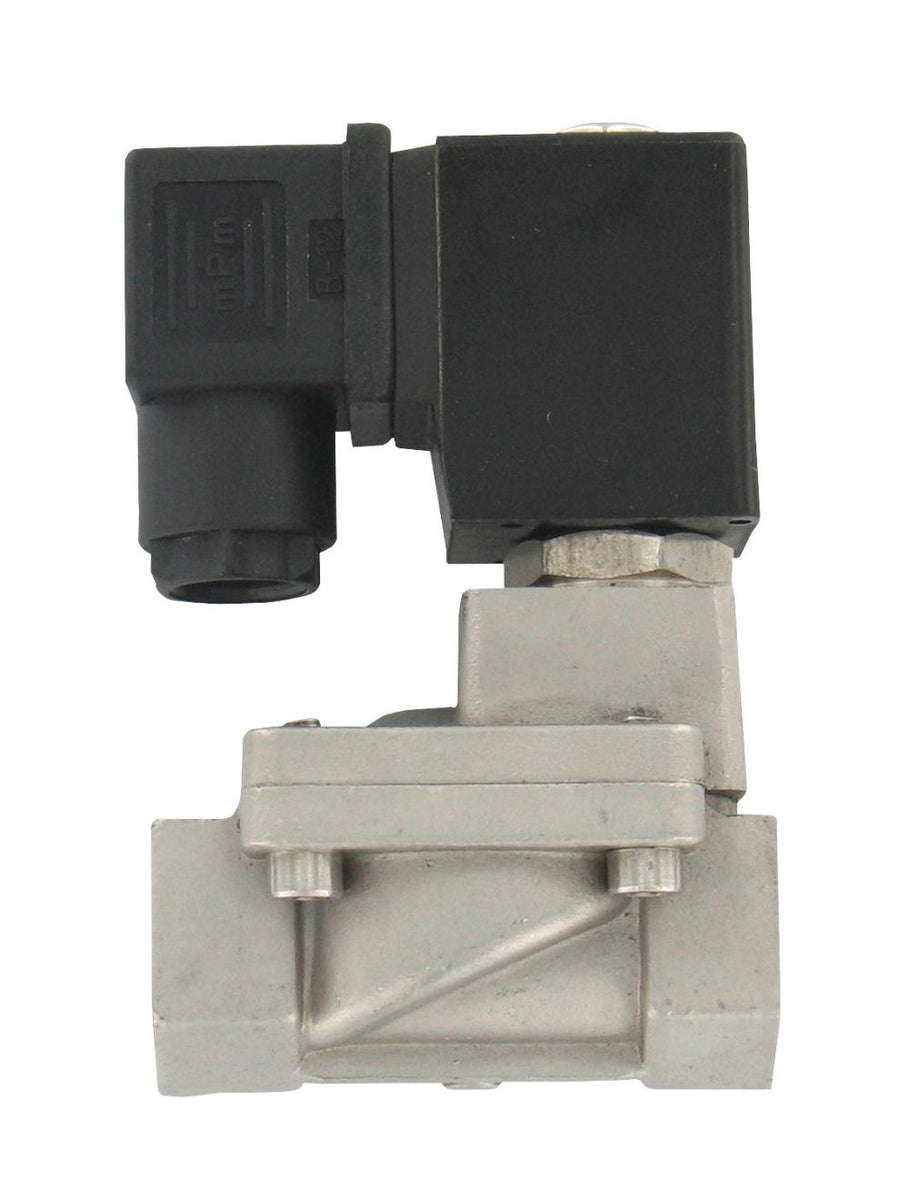

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SBSV-S3F1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SBSV-S3F1 Documents

Instruction Manual Series SBSV-S Catalog Page More Info

Overview

Details for SBSV-S3F1

See catalog product page for full listing

2-way 316SS solenoid valve | 3/8" | 7.28-188.5 psi | FKM seal | 110 VAC

Series SBSV-S SS Solenoid Valves – 2-Way Guided NC

Compact Design, Immune to Mounting Orientation

The Series SBSV-S Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in SS with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SBSVS valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

Product Applications

Wide variety of applications, suitable air, gas, water and other liquids

Can be oriented in any position
Compact design
Field replaceable coils

Specifications

Series: SBSV-S SS Solenoid Valves – 2-Way Guided NC
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SBSV-S SS Solenoid Valves – 2-Way Guided NC
Service: Compatible gases and liquids.
Line Size: 1/8 to 2" NPT.
End Connections: Female NPT.
Operating Pressure: >1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar);3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar).
Pressure Limit: 246.6 psi (17 bar).
Wetted Material: Body: 316 SS; Spring; 304 SS; Seal: Fluoroelastomer.
Temperature Limits: >Process: 176°F (80°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements: Standard: 110 VAC; Optional: 220 VAC; 24 VDC; 24 VAC consult factory. See Series SRC Solenoid Coils.
Power Consumption: See table on catalog page.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position; best if solenoid vertically abovevalve.
Weight: See table on catalog page.
Type of Operation: NC.
Agency Approvals: CE.
