SBSV-B4N3 | 2-way brass solenoid valve | 1/2" | 7.25-188.5 psi | nbr seal | 24 VAC | Dwyer
2-way brass solenoid valve, 1/2", 7.25-188.5 psi, nbr seal, 24 VAC
Documents and manuals
Dwyer SBSV-B4N3 Documents
Overview
Details for SBSV-B4N3
2-way brass solenoid valve | 1/2" | 7.25-188.5 psi | nbr seal | 24 VAC

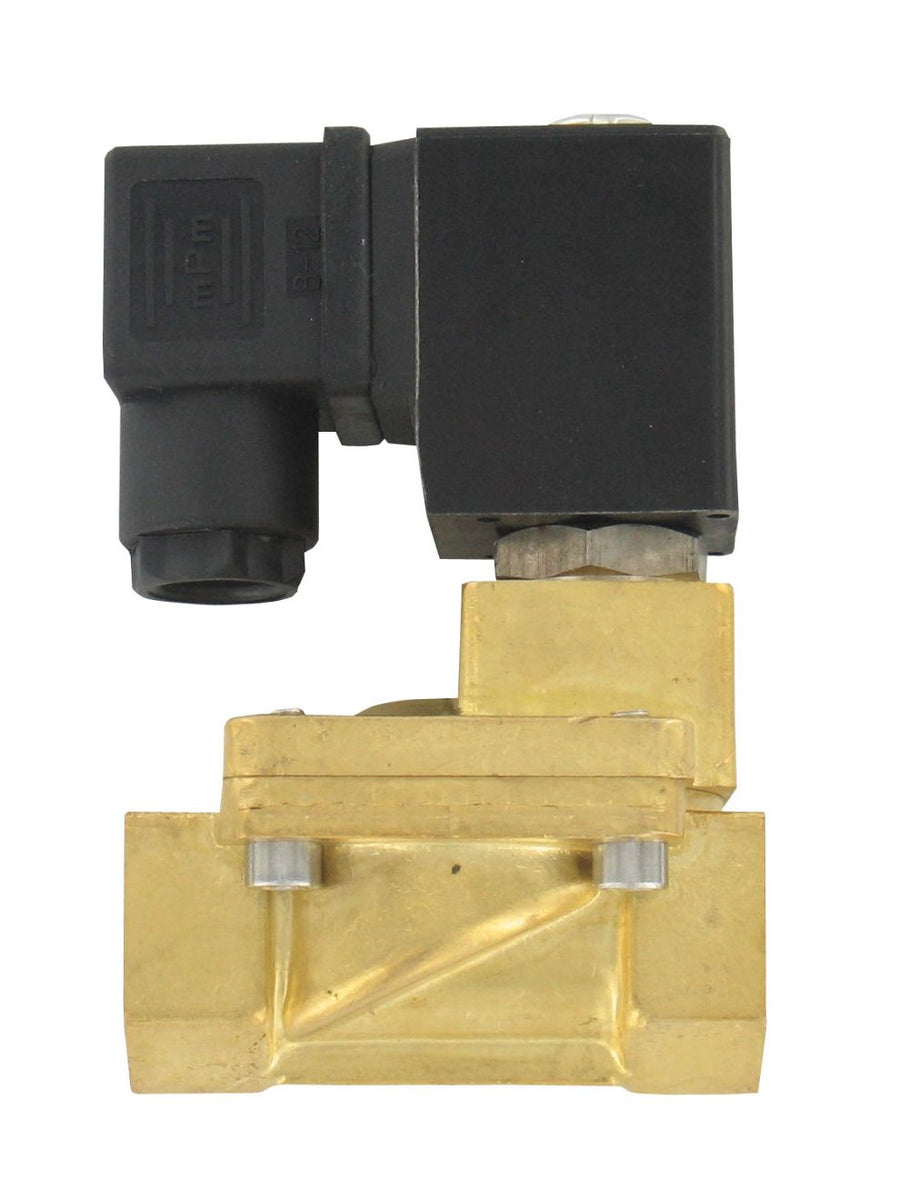

Series SBSV-B Brass Solenoid Valves – 2-Way Guided NC
The Series SBSV-B Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in brass with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and noncorrosive coolants. The Series SBSV-B valves come assembled with an NBR seal, having a maximum process temperature of 176°F (80°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Wide variety of applications, suitable air, gas, water and other liquids
- Can be oriented in any position
- Compact design
- Field replaceable coils
Specifications
- Series
- SBSV-B Brass Solenoid Valves – 2-Way Guided NC
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Solenoid
- Series
- SBSV-B Brass Solenoid Valves – 2-Way Guided NC
- Service
- Compatible gases and liquids.
- Line Size
- 1/8 to 2" NPT.
- End Connections
- Female NPT.
- Operating Pressure:
- 1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar);3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar).
- Pressure Limit
- 246.6 psi (17 bar).
- Wetted Material
- Body: Brass; Spring: 304 SS; Seal: NBR.
- Temperature Limits
- Process: 176°F (80°C);Ambient: 32 to 149°F (0 to 65°C).
- Power Requirements Standard:
- 110 VAC; Optional: 220 VAC; 24 VDC; 24 VACconsult factory. See Series SRC Solenoid Coils.
- Power Consumption
- See table on catalog page.
- Enclosure Rating
- NEMA 13 (IP54).
- Electrical Connection
- DIN connection.
- Other Materials
- Nylon.
- Mounting Orientation
- Any position; best if solenoid vertically above valve.
- Weight
- See table on catalog page.
- Type of Operation
- NC.
- Agency Approvals
- CE.
