SBSV-B2N2 | 2-way brass solenoid valve | 1/4" | 0-188.5 psi | nbr seal | 220 VAC | Dwyer

2-way brass solenoid valve, 1/4", 0-188.5 psi, nbr seal, 220 VAC

Brand: DwyerSKU: SBSV-B2N2

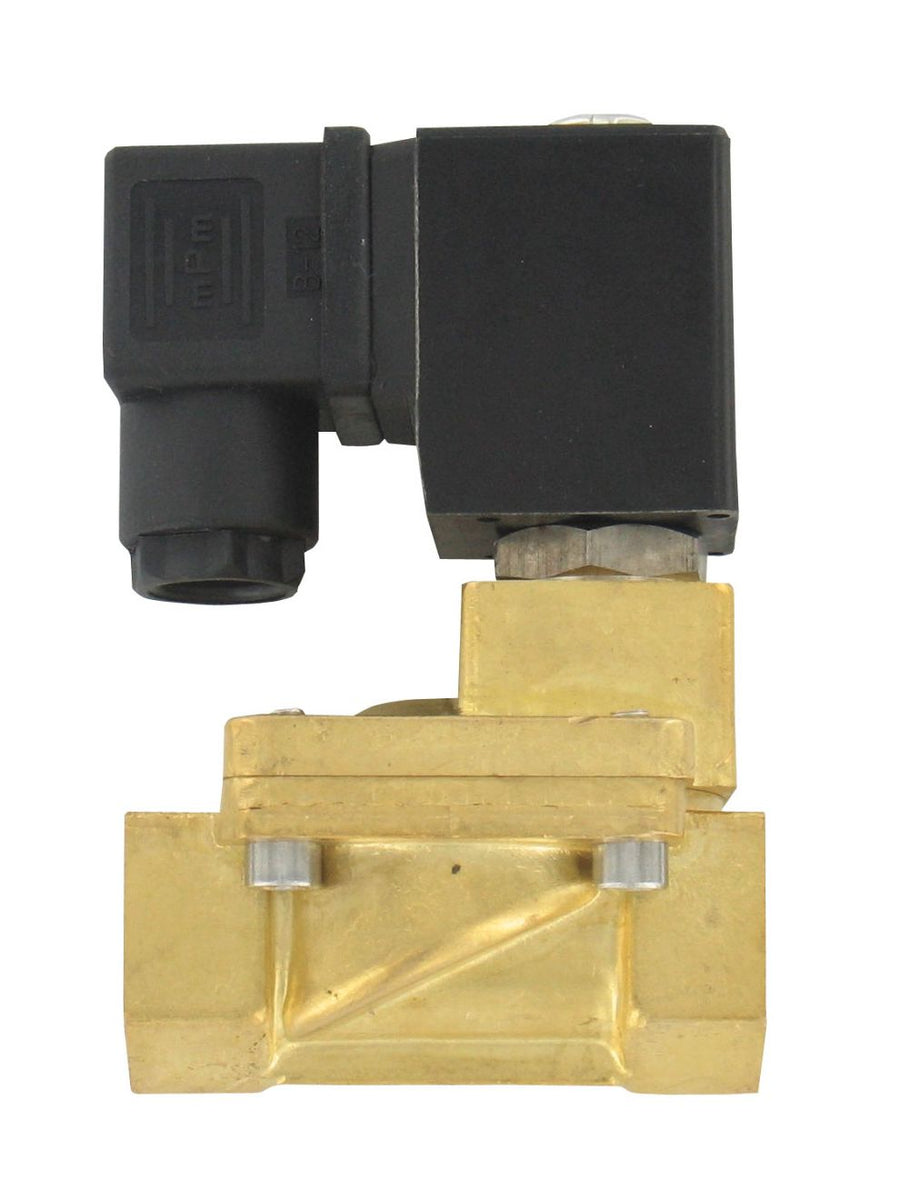

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SBSV-B2N2

Jump to: Overview & Specifications Reviews

Overview Details for SBSV-B2N2

See catalog product page for full listing

2-way brass solenoid valve | 1/4" | 0-188.5 psi | nbr seal | 220 VAC

Series SBSV-B Brass Solenoid Valves – 2-Way Guided NC

Compact Design, Immune to Mounting Orientation

The Series SBSV-B Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in brass with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and noncorrosive coolants. The Series SBSV-B valves come assembled with an NBR seal, having a maximum process temperature of 176°F (80°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Wide variety of applications, suitable air, gas, water and other liquids

Can be oriented in any position
Compact design
Field replaceable coils

Specifications

Series: SBSV-B Brass Solenoid Valves – 2-Way Guided NC
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SBSV-B Brass Solenoid Valves – 2-Way Guided NC
Service: Compatible gases and liquids.
Line Size: 1/8 to 2" NPT.
End Connections: Female NPT.
Operating Pressure:: 1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar);3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar).
Pressure Limit: 246.6 psi (17 bar).
Wetted Material: Body: Brass; Spring: 304 SS; Seal: NBR.
Temperature Limits: Process: 176°F (80°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements Standard:: 110 VAC; Optional: 220 VAC; 24 VDC; 24 VACconsult factory. See Series SRC Solenoid Coils.
Power Consumption: See table on catalog page.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position; best if solenoid vertically above valve.
Weight: See table on catalog page.
Type of Operation: NC.
Agency Approvals: CE.
