SAV-BTA1-NC | Angle seat valve | 1/2" NPT | 1-3/4" actuator dia. | Dwyer

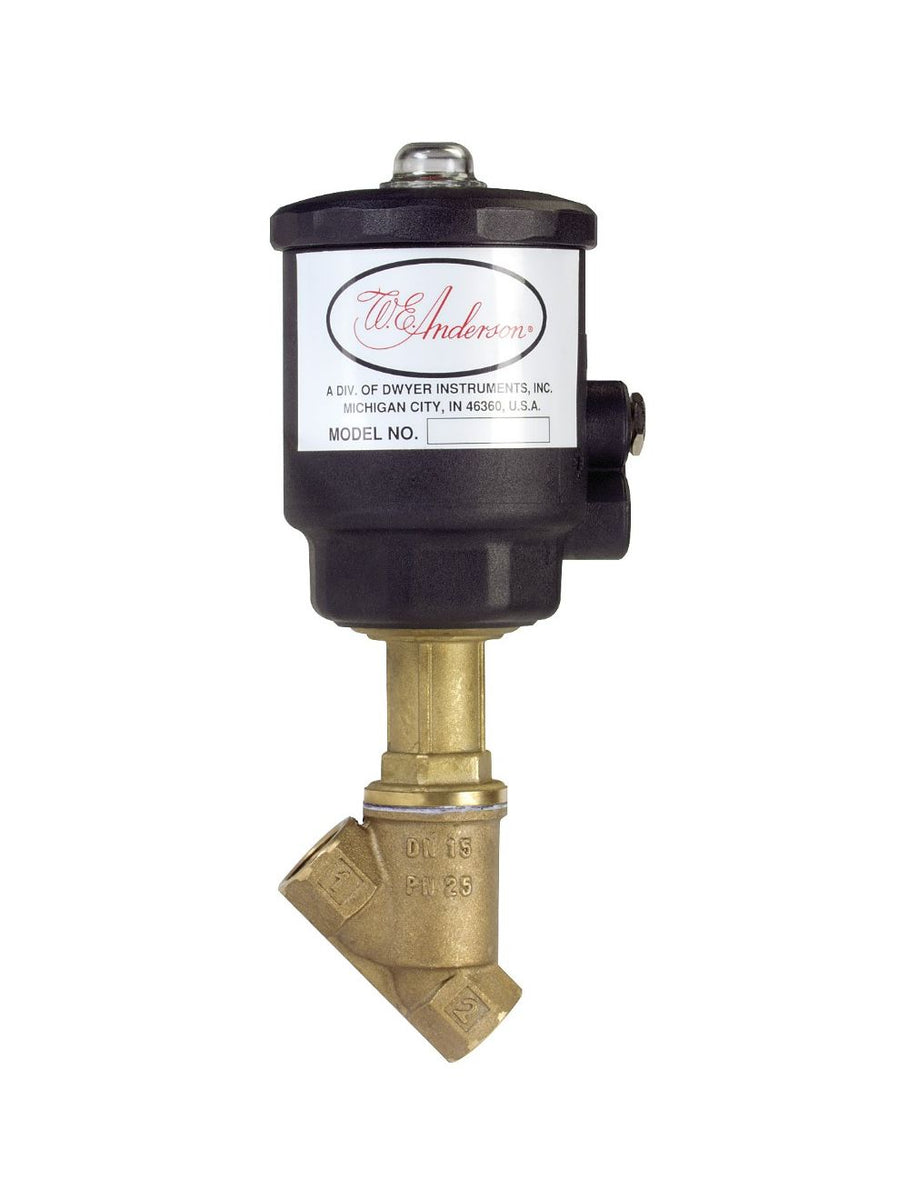

Angle seat valve, 1/2" NPT, 1-3/4" actuator dia.

Brand: DwyerSKU: SAV-BTA1-NC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SAV-BTA1-NC

Jump to: Overview & Specifications Reviews

Overview Details for SAV-BTA1-NC

See catalog product page for full listing

Angle seat valve | 1/2" NPT | 1-3/4" actuator dia.

SERIES SAV-BT ANGLE SEAT VALVE - BRONZE NPT

Low Cost, Compact Design, For Use with Gases and Liquids

Save space while maintaining flow rates with the compact Series SAV-BT Angle Seat Valve. The pneumatic, externally piloted angle seat valve is operated by a single acting actuator with a mechanical spring for fail-safe operation. Select from either normally closed (NC) or normally open (NO) configurations. Bi-directional valves (normally closed) are designed for special applications that require flow in both directions and incorporate an anti-water hammer design for liquid applications flowing under the seat. Normally open valves can also be used to prevent water hammer on valve closure in liquid applications.

Constructed of bronze, 316 Stainless Steel, and PTFE seals, the Series SAV-BT can be used in most gas, liquid, and steam applications. Integral heat sinks dissipate heat protecting the polyamide actuator, ensuring longer life.

The Series SAV-BT can be mounted in any position. For added flexibility, the actuator housing rotates 360 degrees for positioning of the pressure ports. Standard visual indicator shows open or closed position.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Gas or liquid flow control

Can be used in most gas, liquid and steam applications
Integral heat sink protects Polyamide actuator
Can be mounted in any position
Actuator can be rotated 360° for positioning pressure ports

Specifications

Series: SAV-BT ANGLE SEAT VALVE - BRONZE NPT
Category/Type: Valves
Type: Valves
Valve Type: Angle Seat
Series: SAV-BT ANGLE SEAT VALVE - BRONZE NPT
VALVE BODY: Service:
Service: Gases and liquids compatible with wetted materials.
Wetted Materials: Valve Body: bronze; Plug and Stem: AISI 316L Stainless Steel; Stem O-ring: Fluoroelastomer; Seat and Seal: PTFE.
Line Sizes: 1/2" to 2" NPT.
Pressure Limits: See table on Catalog page.
Flow Leakage: Meets ANSI Class VI.
Temperature Limits: 14 to 356°F (-10 to 180°C).
Type: Piston/pneumatic spring.
Pilot Connections: 1-3/4" dia. act.: 1/8" BSP; 2-1/2" dia. act.: 1/4" BSP; 3-9/16" dia. act.: 1/4" BSP.
Pilot Media: Air; water; inert gas.
Pressure Limits: See table on Catalog page.
Temperature Limit: 140°F (60°C).
