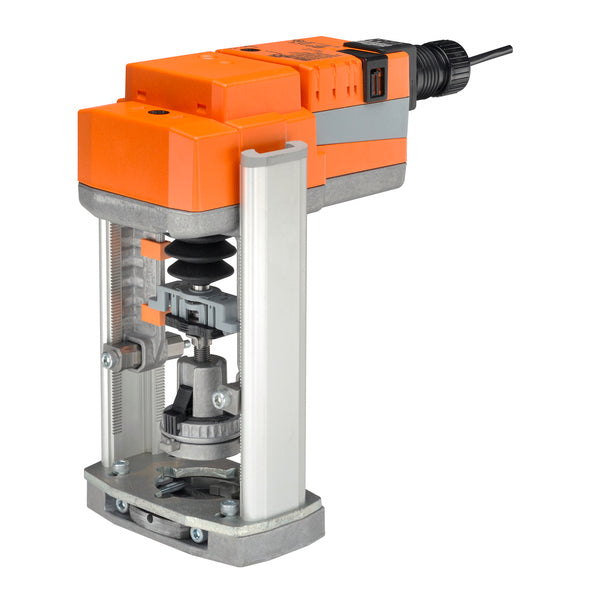

UGVL+SVB24-SR | UGVL w/ Non-Spg | 337 lbf | 24V | 2-10V | Belimo
Retrofit valve linkageFor Universal Globe Valve with LV and SV Series Actuators|Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating
Overview
Details for UGVL+SVB24-SR
UGVL w/ Non-Spg | 337 lbf | 24V | 2-10V
Application
The UGVL retrofit kit is designed to easily attach LV and SV series actuators to select globe valves. Its unique adjustable design allows the UGVL to be mounted on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The UGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valves.
Default/Configuration
The default set up for a UGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the valve.
Specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 1500 N [340 lbf]
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 1.5 W
- Protection category
- IP54
- Running Time (Motor)
- 90 s /
- Stroke
- 0.6" [15 mm] LV 3/4" [20 mm] SV
- Voltage AC/DC
- AC/DC 24 V
