S2-4B | S2-4B | Dwyer
S2-4B
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to S2-4B
Documents and manuals
Dwyer S2-4B Documents
Overview
Details for S2-4B
See catalog product page for full listing
S2-4B

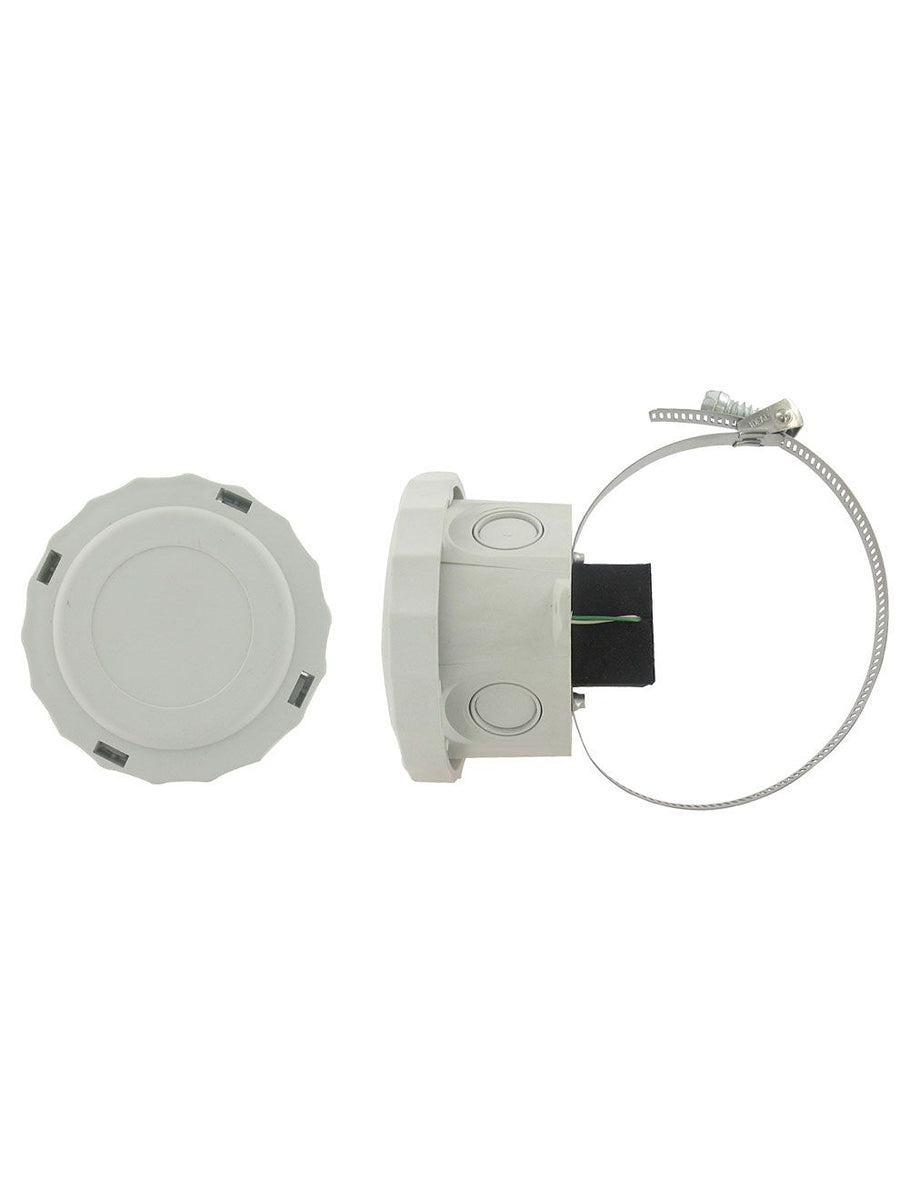

Series S2-4 Weatherproof Surface Temperature Assembly
Strap-On Design, Twist off Housing Cover
The Series S2-4 Weatherproof Surface Temperature Assembly is ideal for monitoring the temperature of distribution lines when it is not possible to penetrate the pipe. The strap-on connection quickly wraps around a pipe and can be securely tightened using a flat head screw driver. The twist-off housing cover reduces installation time. The housing has multiple knockout conduit holes which allows the installer to bring conduit to any side of the housing. The Series S2-4 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.
Specifications
- Series
- S2-4 Weatherproof Surface Temperature Assembly
- Category/Type
- Temperature
- Type
- Sensors
- Series
- S2-4 Weatherproof Surface Temperature Assembly
- Accuracy
- Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
- Operating Temperature
- -32 to 240°F (-35.5 to 115.5 °C).
- Probe Material
- Copper conductor.
- Mounting
- Strap-on to pipe. (2"-5" pipe sizes)
- Enclosure Rating
- NEMA 4X (IP65).
