Documents: S2-47

Series S2-4 Catalog Page More Info

S2-47 | S2-47 | Dwyer

S2-47

Brand: DwyerSKU: S2-47

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to S2-47

Jump to: Overview & Specifications Reviews

Overview Details for S2-47

See catalog product page for full listing

S2-47

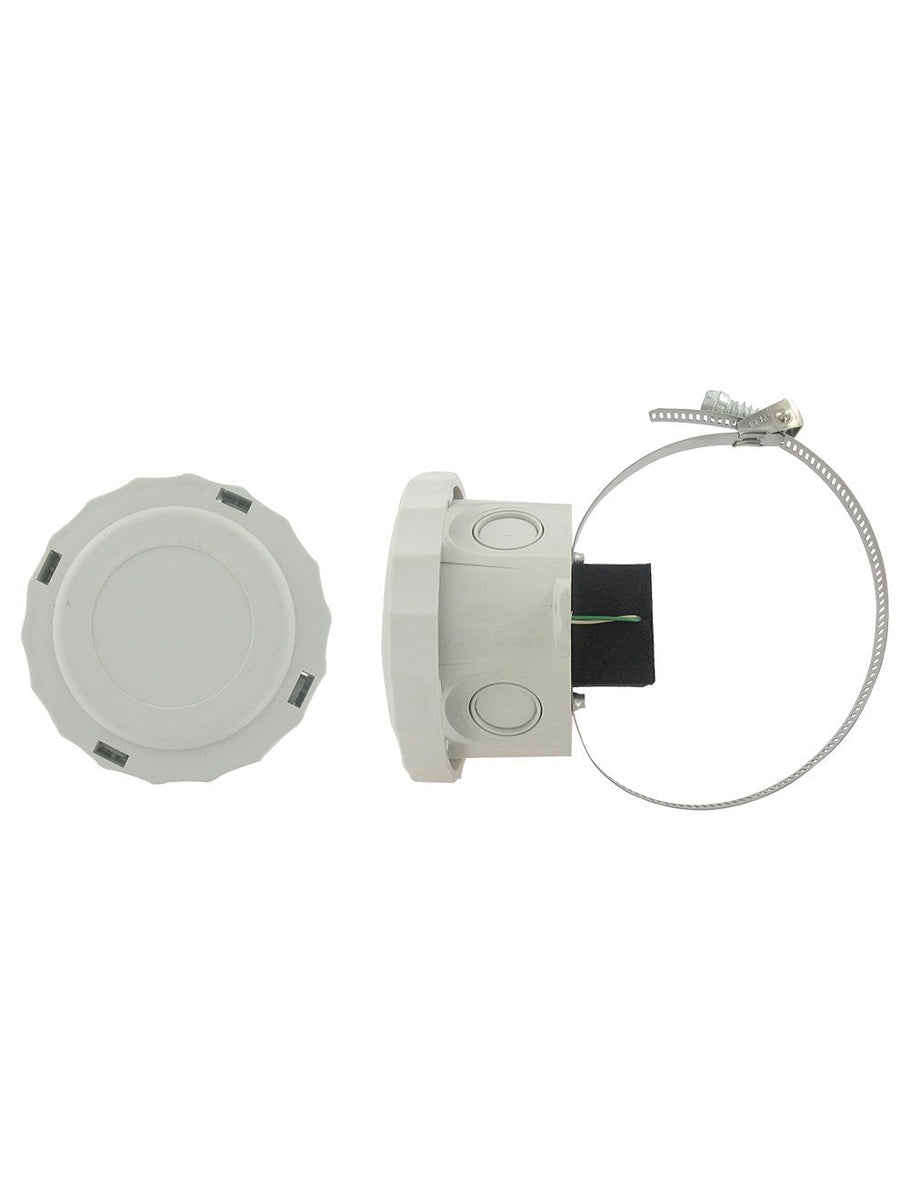

Series S2-4 Weatherproof Surface Temperature Assembly

Strap-On Design, Twist off Housing Cover

The Series S2-4 Weatherproof Surface Temperature Assembly is ideal for monitoring the temperature of distribution lines when it is not possible to penetrate the pipe. The strap-on connection quickly wraps around a pipe and can be securely tightened using a flat head screw driver. The twist-off housing cover reduces installation time. The housing has multiple knockout conduit holes which allows the installer to bring conduit to any side of the housing. The Series S2-4 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.

Specifications

Series: S2-4 Weatherproof Surface Temperature Assembly
Category/Type: Temperature
Type: Sensors
Series: S2-4 Weatherproof Surface Temperature Assembly
Accuracy: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5 °C).
Probe Material: Copper conductor.
Mounting: Strap-on to pipe. (2"-5" pipe sizes)
Enclosure Rating: NEMA 4X (IP65).
