Documents: S2-23

Series S2-2 Catalog Page More Info

S2-23 | Surface mount temperature sensor | Ni 1000 Ω RTD | plastic junction box. | Dwyer

Surface mount temperature sensor, Ni 1000 Ω RTD, plastic junction box.

Brand: DwyerSKU: S2-23

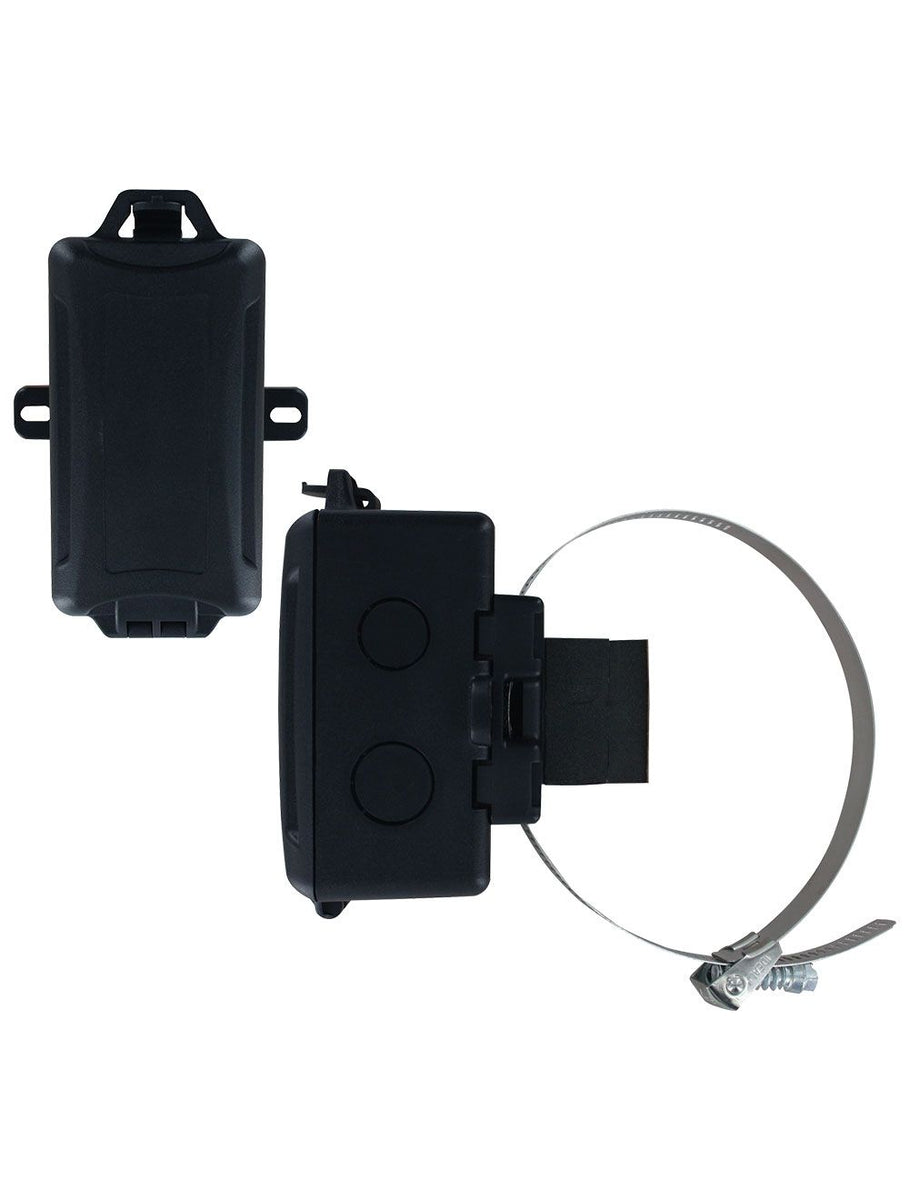

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to S2-23

Jump to: Overview & Specifications Reviews

Overview Details for S2-23

See catalog product page for full listing

Surface mount temperature sensor | Ni 1000 Ω RTD | plastic junction box.

Series S2-2 General Purpose Surface Temperature Assembly

Strap-On Design, Multiple Conduit Holes

The Series S2-2 General Purpose Surface Temperature Assembly is ideal for monitoring the temperature of indoor distribution lines when it is not possible to penetrate the pipe. The plastic housing is in the shape of a standard junction box with multiple knockouts for easy conduit access. The strap-on connection quickly wraps around a pipe and can be securelytightened using a flat head screw driver. The Series S2-2 can be ordered with a choiceof 11 output options that allow it to communicate to any standard building control system.

Specifications

Series: S2-2 General Purpose Surface Temperature Assembly
Category/Type: Temperature
Type: Sensors
Series: S2-2 General Purpose Surface Temperature Assembly
Accuracy: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5°C).
Probe Material: Copper conductor.
Mounting: Strap-on to pipe. (fits 2"-5" pipe sizes)
