S2-1D | Surface mount temperature sensor | PT100 Ohm RTD | Dwyer

Surface mount temperature sensor, PT100 Ohm RTD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to S2-1D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer S2-1D Documents

Series S2-1 Catalog Page S2-1 More Info

Overview

Details for S2-1D

See catalog product page for full listing

Surface mount temperature sensor | PT100 Ohm RTD

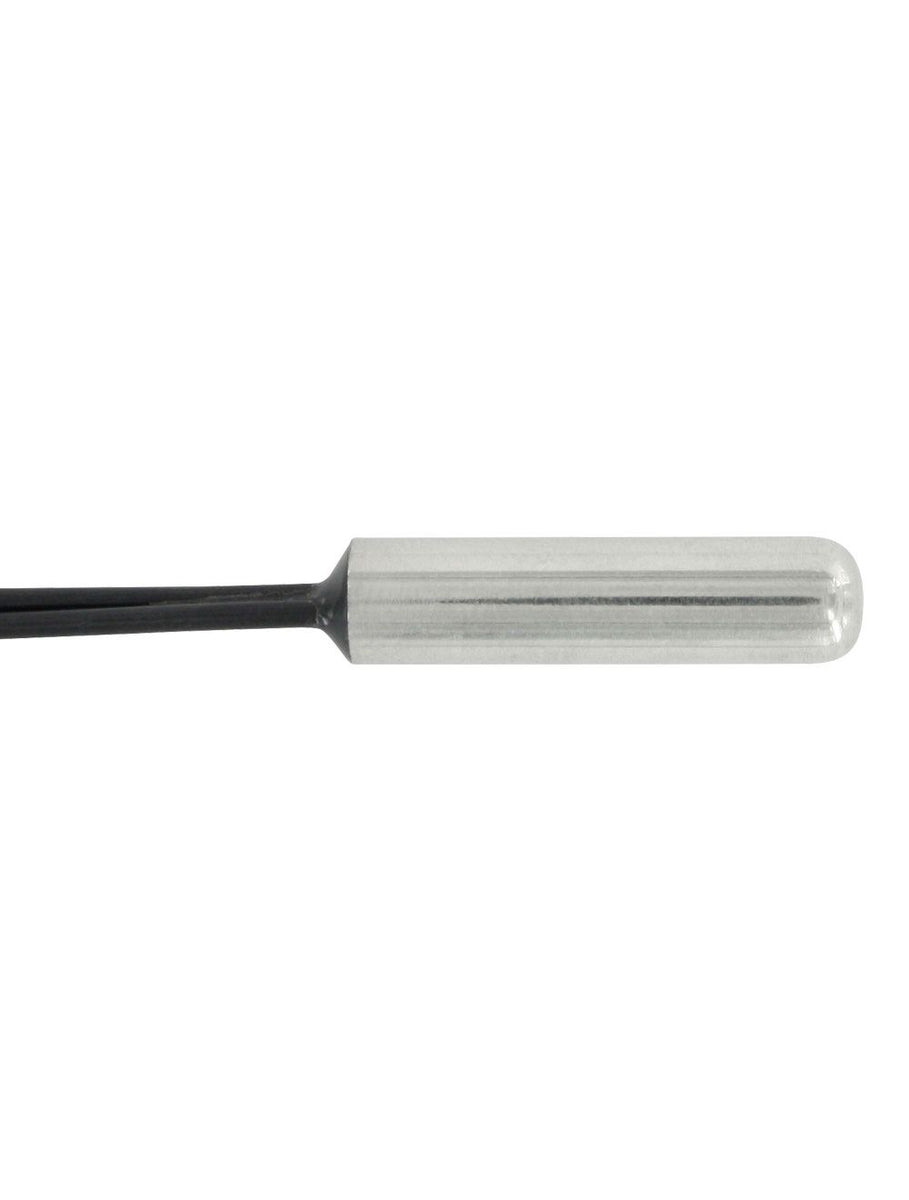

Series S2-1 Surface Mount Temperature Sensor

RTD and Thermistor, 304 SS Probe

The Series S2-1 Surface Mount Temperature Sensor provides a cost effective andreliable solution for surface contact temperature measurement of conditioned waterpipes, low pressure steam or refrigerant lines.

Product Applications

Heating or cooling loop line temperature monitoring
HVAC systems

Low profile sensor can be taped or strapped to the outside of a pipe
Ideal for applications where immersion wells are not feasible

Specifications

Series: S2-1 Surface Mount Temperature Sensor
Category/Type: Temperature
Type: Sensors
Series: S2-1 Surface Mount Temperature Sensor
Accuracy: Platinum RTD: ±0.1% @ 32°F (0°C); alpha 385 per DIN 43760; Thermistor: ±0.5°C interchangeable @ 77°F (25°C).
Operating Temperature: -40 to 250°F (-40 to 120°C).
Probe Diameter: 1/4" (6.3 mm).
Probe Length: 1" (25 mm).
Probe Material: 304 SS.
