S2-1C | Surface mount temperature sensor | 3K thermistor | Dwyer
Surface mount temperature sensor, 3K thermistor

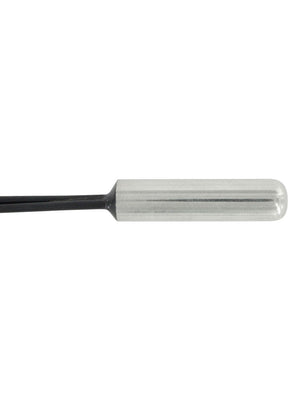

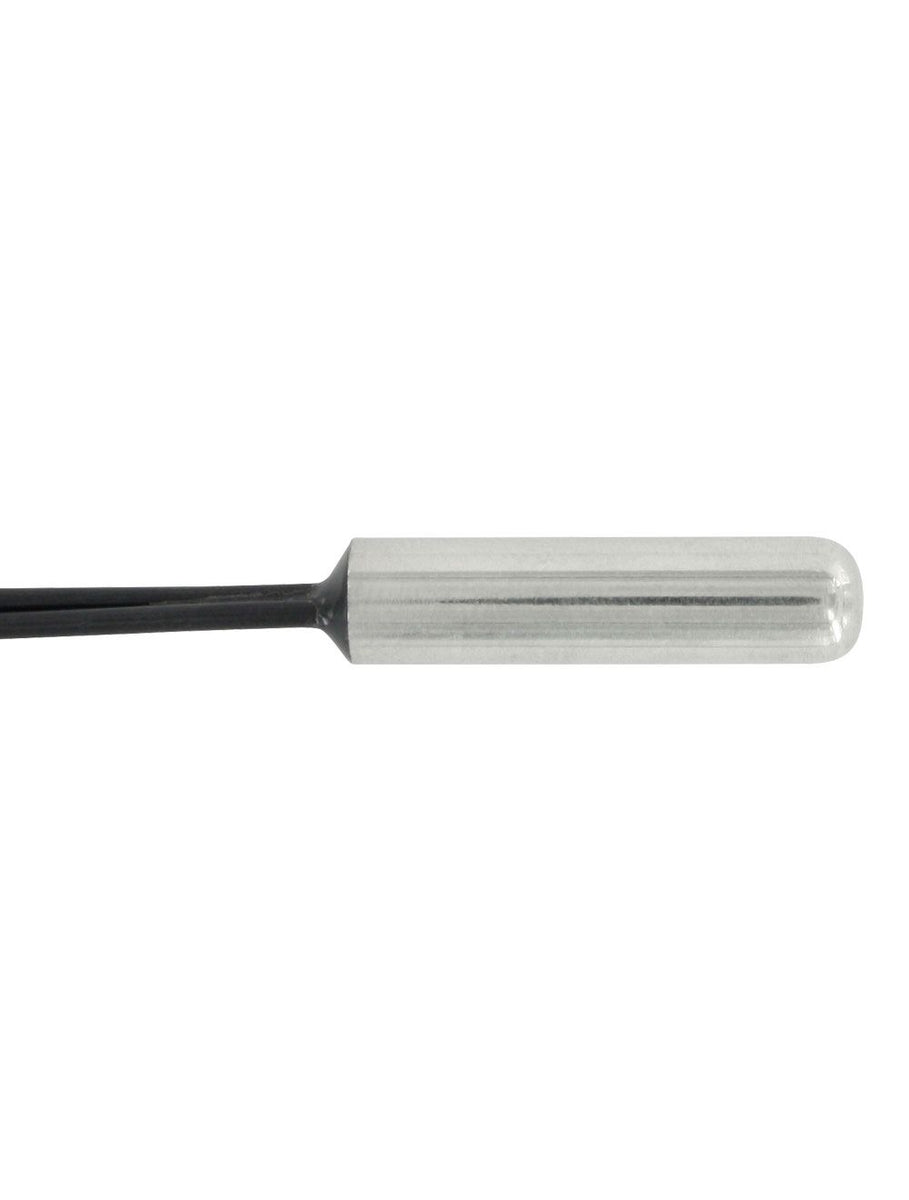

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to S2-1C
Documents and manuals
Dwyer S2-1C Documents
Overview
Details for S2-1C
See catalog product page for full listing
Surface mount temperature sensor | 3K thermistor
Series S2-1 Surface Mount Temperature Sensor
RTD and Thermistor, 304 SS Probe
The Series S2-1 Surface Mount Temperature Sensor provides a cost effective andreliable solution for surface contact temperature measurement of conditioned waterpipes, low pressure steam or refrigerant lines.
Product Applications
- Heating or cooling loop line temperature monitoring
- HVAC systems
- Low profile sensor can be taped or strapped to the outside of a pipe
- Ideal for applications where immersion wells are not feasible
Specifications
- Series
- S2-1 Surface Mount Temperature Sensor
- Category/Type
- Temperature
- Type
- Sensors
- Series
- S2-1 Surface Mount Temperature Sensor
- Accuracy
- Platinum RTD: ±0.1% @ 32°F (0°C); alpha 385 per DIN 43760; Thermistor: ±0.5°C interchangeable @ 77°F (25°C).
- Operating Temperature
- -40 to 250°F (-40 to 120°C).
- Probe Diameter
- 1/4" (6.3 mm).
- Probe Length
- 1" (25 mm).
- Probe Material
- 304 SS.
