RTD-686 | Resistance temperature detector | 6" (15 cm) length | 1/8" dia. | Dwyer
Resistance temperature detector, 6" (15 cm) length, 1/8" dia.

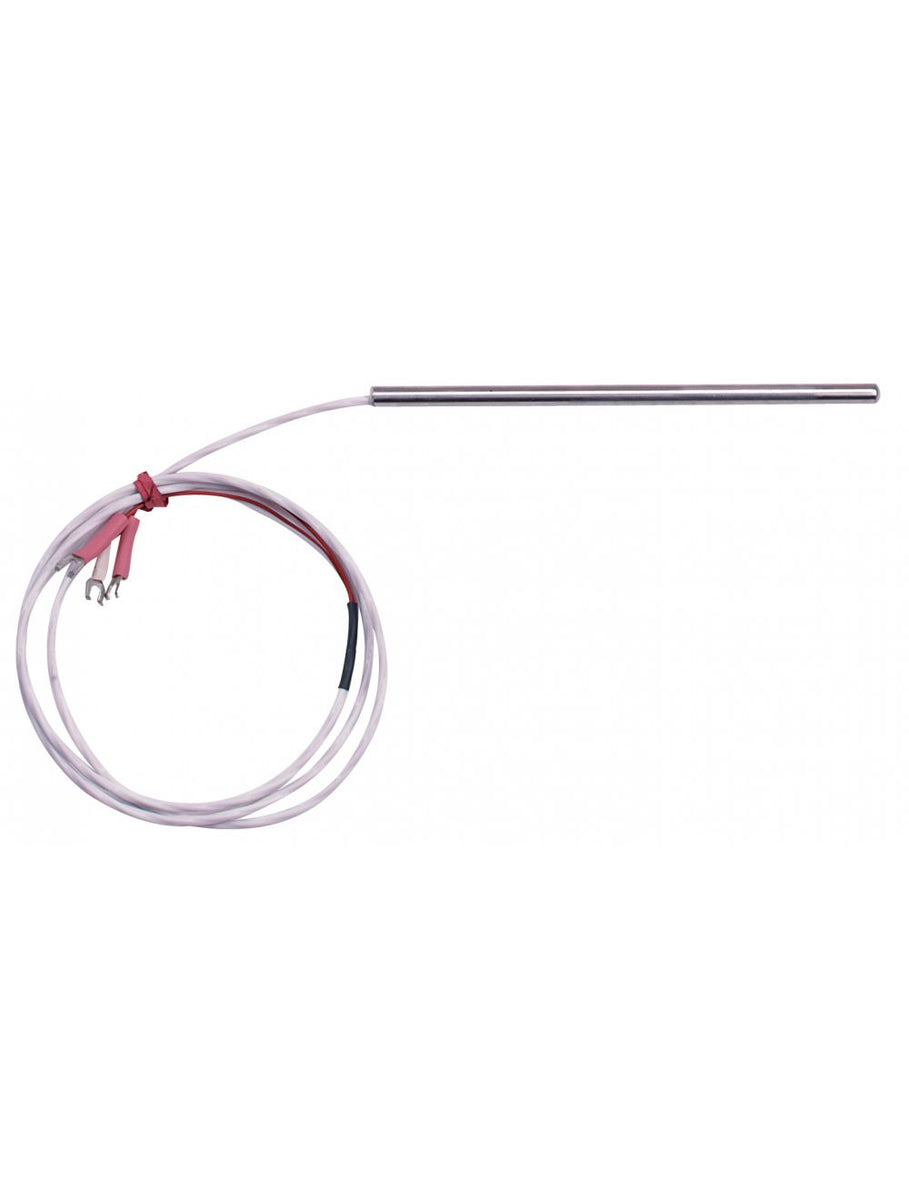

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RTD-686
Documents and manuals
Dwyer RTD-686 Documents
Overview
Details for RTD-686
See catalog product page for full listing
Resistance temperature detector | 6" (15 cm) length | 1/8" dia.
Series RTD Resistance Temperature Detector
High Temperature, Mineral Insulated, 304 SS Sheath
Precision Series RTD Resistance Temperature Detector offers excellent accuracy and stability over a wide temperature range. Industry standard 3-wire 100 ohm (DIN) probes are available in 6" (15 cm), 12" (30.5 cm) or 18" (46 cm) sheath lengths with 30" (76 cm) extension cable and spade lug terminals.
For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.
Product Applications
- Air ducts
- Bearing temperature
- Oil temperature indicator
- Soldering equipment
- Ovens
- Environmental test chambers
- Pharmaceutical manufacturing
- Food processing
- Plastic molding
- Petroleum & chemical processing
- Electric generating plants
- Long product life cycle from durable 304 SS sheath
- Variable installation environments due to the mineral insulated cable
Specifications
- Series
- RTD Resistance Temperature Detector
- Category/Type
- Temperature
- Type
- Sensors
- Series
- RTD Resistance Temperature Detector
- Sensor Type
- Wire wound; 100 Ω.
- Temperature Range
- -328 to 1202°F (-200 to 650°C).
- Pressure Limits
- 250 psig (17.2 bar).
- Probe Material
- 316 SS.
- Extension Length
- 30" (76 cm).
- Element Standard
- DIN .00385 (Class B; 0.12%).
