RSV2D | Pilot solenoid valve | 220 VAC | DIN electrical connections | Cv of .33. | Dwyer

Pilot solenoid valve, 220 VAC, DIN electrical connections, Cv of .33.

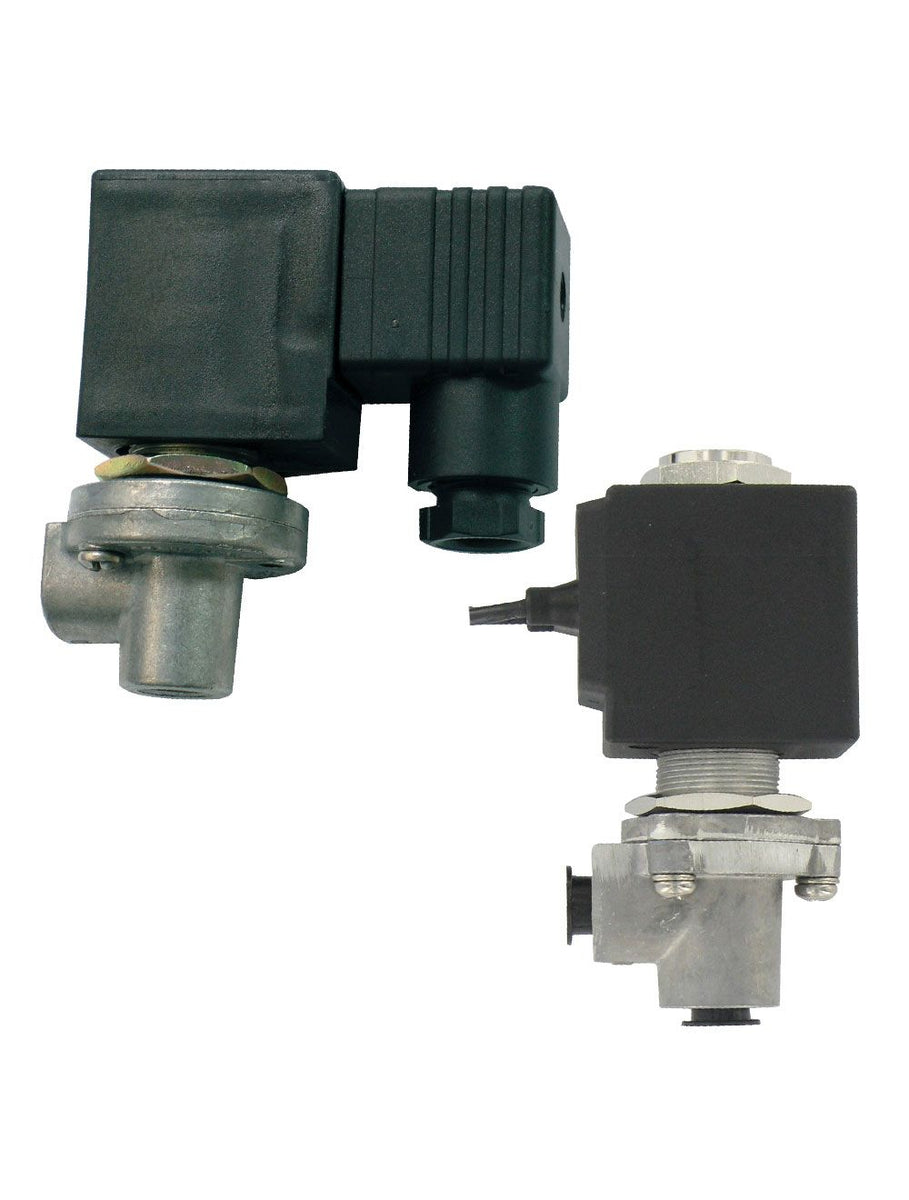

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSV2D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer RSV2D Documents

Instruction Manual Series RSV Catalog Page More Info

Overview

Details for RSV2D

See catalog product page for full listing

Pilot solenoid valve | 220 VAC | DIN electrical connections | Cv of .33.

Series RSV Pilot Solenoid Valve

For Use with Remote Valves

The Series RSV Pilot Solenoid Valve is used to operate the Series RDCV remote type diaphragm valve. The RSV can drive all size diaphragm valves. Consult factory for mounting of RSV valves with our DCT timer boards together in one enclosure all pre-wired.

Product Applications

For use with RDCV remote valve

Filtered and oil-free
Weatherproof enclosure package available
Can be mounted with DCT timer boards in one enclosure, consult factory

Specifications

Series: RSV Pilot Solenoid Valve
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: RSV Pilot Solenoid Valve
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: aluminum; Core and spring: 304 SS; Seals: NBR.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC.
Power Consumption: 2 W; inrush: 17 VA; holding: 14.5 VA.
Enclosure Rating: NEMA 4X (IP65).
Electrical Connection: DIN connection or wire leads; 18 AWG; 22" (55 cm) long.
Process Connection: 1/8" female NPT.
Mounting Orientation: Any position.
Weight: 0.60 lb (0.27 kg).
Pneumatic Tube Length: Maximum of 9.8 ft (3 m).
Agency Approval: CE.
