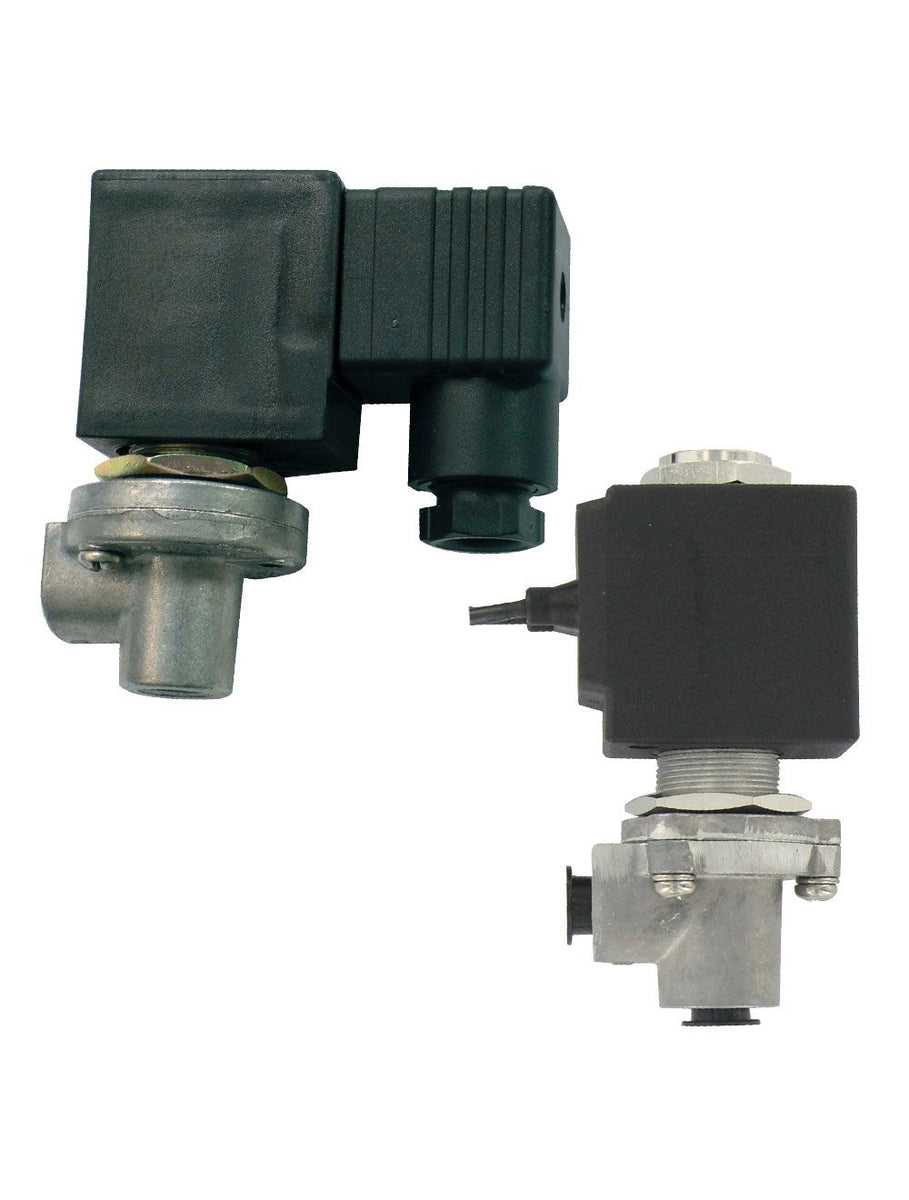

RSV1D | Pilot solenoid valve | 110 VAC | DIN electrical connections | Cv of .33. | Dwyer
Pilot solenoid valve, 110 VAC, DIN electrical connections, Cv of .33.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RSV1D
Documents and manuals
Dwyer RSV1D Documents
Overview
Details for RSV1D
See catalog product page for full listing
Pilot solenoid valve | 110 VAC | DIN electrical connections | Cv of .33.
Series RSV Pilot Solenoid Valve
For Use with Remote Valves
The Series RSV Pilot Solenoid Valve is used to operate the Series RDCV remote type diaphragm valve. The RSV can drive all size diaphragm valves. Consult factory for mounting of RSV valves with our DCT timer boards together in one enclosure all pre-wired.
Product Applications
- For use with RDCV remote valve
- Filtered and oil-free
- Weatherproof enclosure package available
- Can be mounted with DCT timer boards in one enclosure, consult factory
Specifications
- Series
- RSV Pilot Solenoid Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Solenoid
- Series
- RSV Pilot Solenoid Valve
- Service
- Compatible gases; filtered and oil free.
- Wetted Materials
- Body: aluminum; Core and spring: 304 SS; Seals: NBR.
- Pressure Limits
- Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
- Temperature Limits
- Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C).
- Power Requirements
- 110 VAC; 220 VAC; or 24 VDC.
- Power Consumption
- 2 W; inrush: 17 VA; holding: 14.5 VA.
- Enclosure Rating
- NEMA 4X (IP65).
- Electrical Connection
- DIN connection or wire leads; 18 AWG; 22" (55 cm) long.
- Process Connection
- 1/8" female NPT.
- Mounting Orientation
- Any position.
- Weight
- 0.60 lb (0.27 kg).
- Pneumatic Tube Length
- Maximum of 9.8 ft (3 m).
- Agency Approval
- CE.
