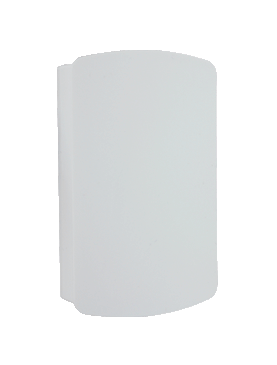

RHPLC-3N11 | North American wall mount humidity/temp transmitter | 3% accuracy | 4-20MA humidity and temperature output | Dwyer

North American wall mount humidity/temp transmitter, 3% accuracy, 4-20MA humidity and temperature output

Brand: DwyerSKU: RHPLC-3N11

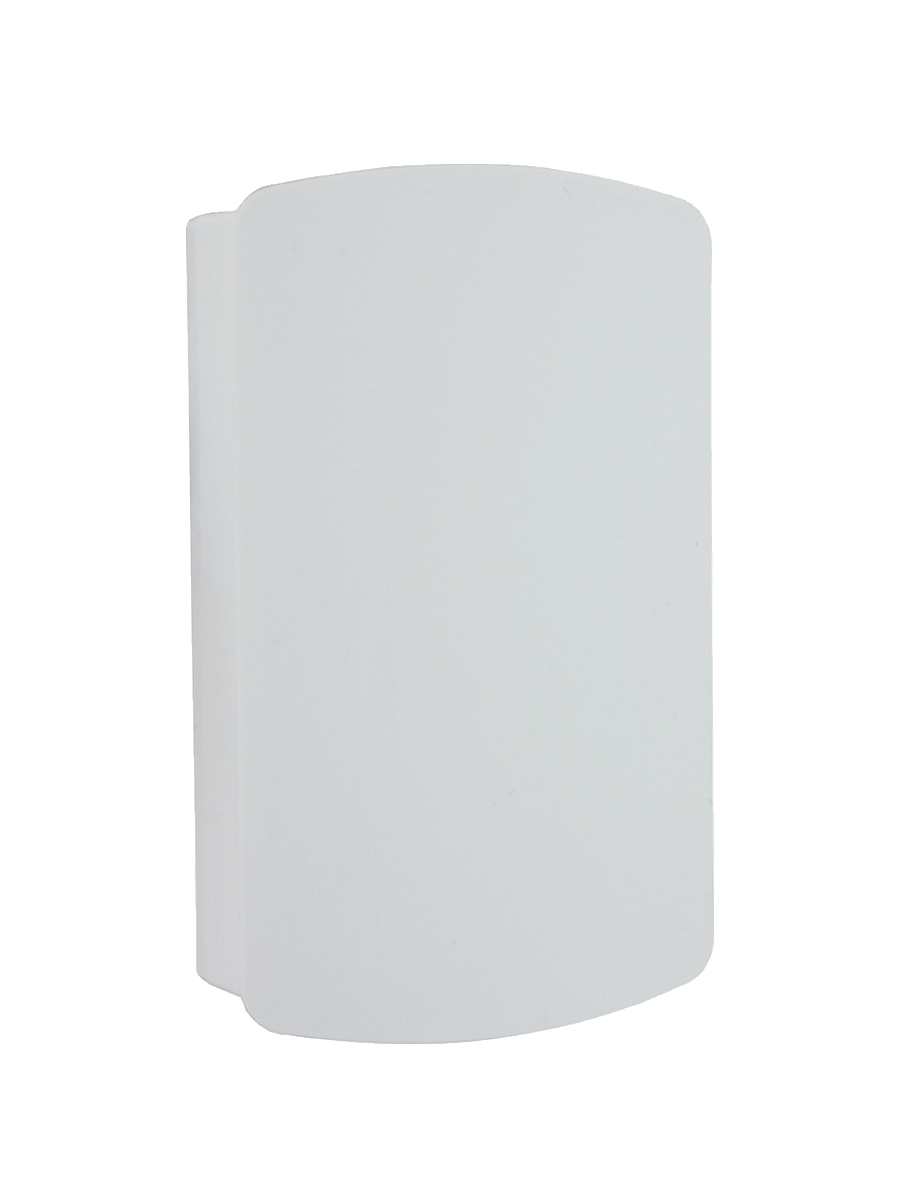

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RHPLC-3N11

Jump to: Overview & Specifications Reviews

Overview Details for RHPLC-3N11

See catalog product page for full listing

North American wall mount humidity/temp transmitter | 3% accuracy | 4-20MA humidity and temperature output

Series RHPLC Wall Mount Humidity/Temperature Transmitter

2% or 3% Humidity Sensor, Passive Temperature Outputs

The Series RHPLC Wall Mount Humidity/Temperature Transmitter is a compacteconomical sensor for the building automation market space. The stylish housing iswell vented to provide air flow across the sensor to improve measurement accuracy.Each unit utilizes a capacitive polymer sensing element to deliver a proportionalanalog output. A combination humidity and temperature model can be configuredwith current, voltage, RTD, or thermistor output. A wide selection of passive RTD orthermistor temperature sensors are available in this series.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

Air economizers
Room comfort monitoring

2% or 3% accuracy models
Humidity only or temperature and humidity combo
Wide selection of passive thermistor or RTD temperature sensors

Specifications

Series: RHPLC Wall Mount Humidity/Temperature Transmitter
Category/Type: Air Quality
Type: Humidity / Temperature Transmitters
Series: RHPLC Wall Mount Humidity/Temperature Transmitter
Sensor: Capacitive polymer.
Relative Humidity Range: 0-100% RH.
RH Accuracy: ±2% 10 to 90% RH @ 25°C for 2% accuracy units; ±3% 20 to 80% RH @ 25°C for 3% accuracy units.
RH Hysteresis: ±0.8%.
RH Repeatability: ±0.1% typical.
Temperature Output Range: -40 to 140°F (-40 to 60°C).
Passive Thermistor Temp Sensor Accuracy: ±0.36ºF @ 77°F (±0.2°C @ 25°C).
Accuracy RTD Temp Sensor: DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 77°F).
Accuracy Current/Volt Temp Output: ±0.9°F @ 77°F (±0.5°C @ 25°C).
Temperature Limits: Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
Power Requirements: 10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output; 15 to 35VDC for 0 to 10 VDC output; 10 to 29 VAC for 0 to 5 VDC output; 15 to 29 VAC for0 to 10 VDC output.
Response Time: 8 s (π63).
Electrical Connections: Screw terminal block.
Drift: <0.25% RH/year.
Enclosure Material: Polycarbonate.
Weight: 4.4 oz (125 g).
Agency Approvals: CE.
