Overview
Details for RHPLC-2N22
North American wall mount humidity/temp transmitter | 2% accuracy | 0-10VDC humidity and temperature output

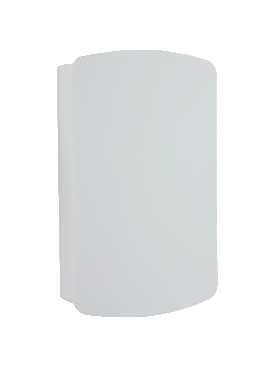

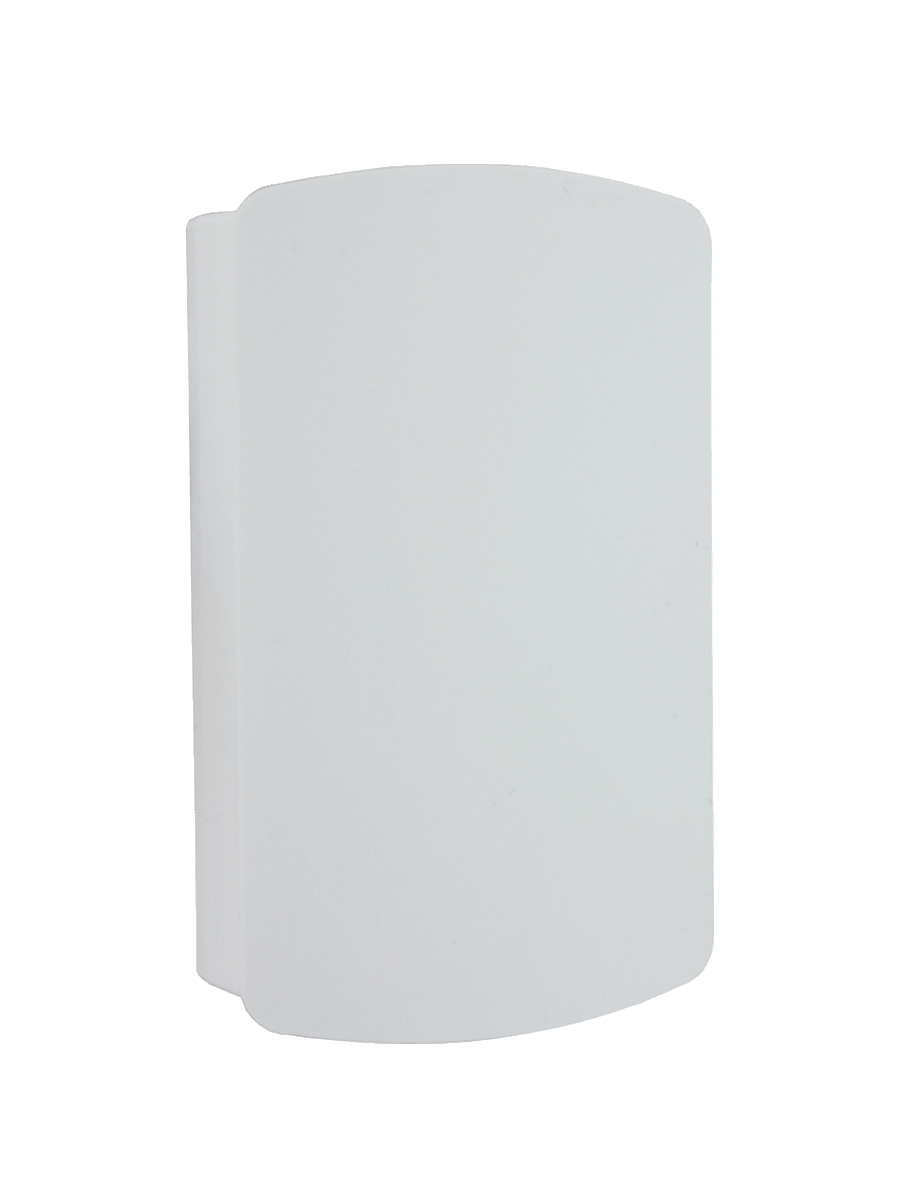

Series RHPLC Wall Mount Humidity/Temperature Transmitter
The Series RHPLC Wall Mount Humidity/Temperature Transmitter is a compacteconomical sensor for the building automation market space. The stylish housing iswell vented to provide air flow across the sensor to improve measurement accuracy.Each unit utilizes a capacitive polymer sensing element to deliver a proportionalanalog output. A combination humidity and temperature model can be configuredwith current, voltage, RTD, or thermistor output. A wide selection of passive RTD orthermistor temperature sensors are available in this series.
For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.
Product Applications
- Air economizers
- Room comfort monitoring
- 2% or 3% accuracy models
- Humidity only or temperature and humidity combo
- Wide selection of passive thermistor or RTD temperature sensors
Specifications
- Series
- RHPLC Wall Mount Humidity/Temperature Transmitter
- Category/Type
- Air Quality
- Type
- Humidity / Temperature Transmitters
- Series
- RHPLC Wall Mount Humidity/Temperature Transmitter
- Sensor
- Capacitive polymer.
- Relative Humidity Range
- 0-100% RH.
- RH Accuracy
- ±2% 10 to 90% RH @ 25°C for 2% accuracy units; ±3% 20 to 80% RH @ 25°C for 3% accuracy units.
- RH Hysteresis
- ±0.8%.
- RH Repeatability
- ±0.1% typical.
- Temperature Output Range
- -40 to 140°F (-40 to 60°C).
- Passive Thermistor Temp Sensor Accuracy
- ±0.36ºF @ 77°F (±0.2°C @ 25°C).
- Accuracy RTD Temp Sensor
- DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 77°F).
- Accuracy Current/Volt Temp Output
- ±0.9°F @ 77°F (±0.5°C @ 25°C).
- Temperature Limits
- Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
- Power Requirements
- 10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output; 15 to 35VDC for 0 to 10 VDC output; 10 to 29 VAC for 0 to 5 VDC output; 15 to 29 VAC for0 to 10 VDC output.
- Response Time
- 8 s (π63).
- Electrical Connections
- Screw terminal block.
- Drift
- <0.25% RH/year.
- Enclosure Material
- Polycarbonate.
- Weight
- 4.4 oz (125 g).
- Agency Approvals
- CE.
