QV-210111 | Valve position indicator/transmitter | with backlighting. | Dwyer

Valve position indicator/transmitter, with backlighting.

Brand: DwyerSKU: QV-210111

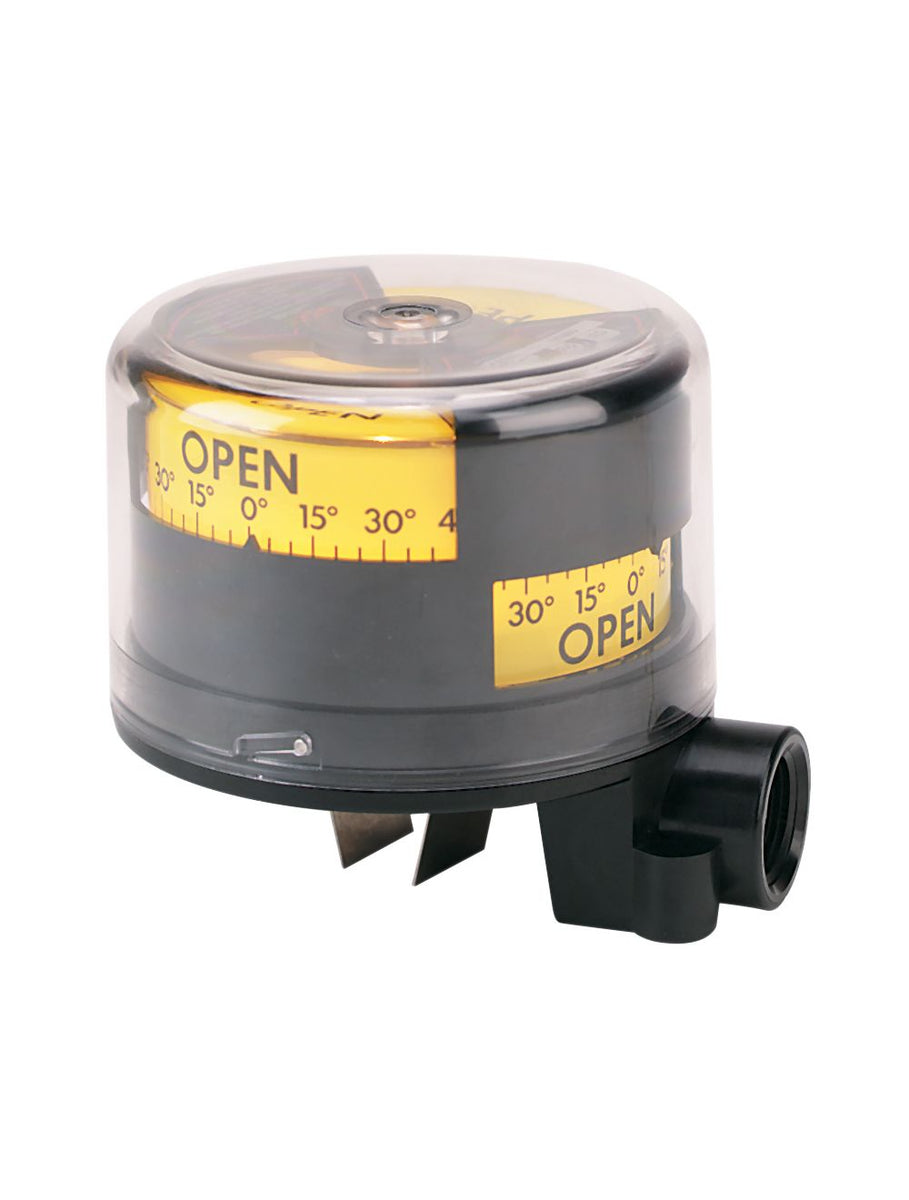

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QV-210111

Jump to: Overview & Specifications Reviews

Overview Details for QV-210111

See catalog product page for full listing

Valve position indicator/transmitter | with backlighting.

Series QV Quick-View® Valve Position Indicator/Switch

Ultra-Low Cost, Compact, Backlit, Corrosion Resistant

The QUICK-VIEW® Valve Position Indicators/Switches, now UL and CSA rated, are produced by Proximity with up to four individual mechanical or proximity switches. The QUICK-VIEW® indicator is also available with optional backlighting.

Product Applications

Rotary or linear valve indication
Industrial damper position monitoring

The lowest cost position indication
Extremely compact design
Easily interchangeable with key competition
Backlighting option available for maximum visibility
Quick-View® indicator and mounting kits, including NAMUR kits, are stocked for fast delivery
Hazardous location option
Flame retardant
UV protection

Specifications

Series: QV Quick-View® Valve Position Indicator/Switch
Category/Type: Valves
Type: Position Indicators / Switches / Transmitters
Series: QV Quick-View® Valve Position Indicator/Switch
Minimum Rotation Travel - switches only: 5°.
Maximum Rotation Travel - switches only: 360°.
Temperature Limits: -40 to 180°F (-40 to 82°C).
Switch Type: SPDT.
Electrical SPDT Switch Ratings: QV-X1XXXX: 10A @ 125/250 VAC; 0.5A @ 125 VDC; 10A @ 24 VDC mech. switch; QV-X2XXXX: 1A @ 125 VAC; 1A @ 24 VDC mech. switch; QV-X3XXXX: 2A @ 125 VAC; 2A @ 30 VDC prox. switch; QV-X4XXXX: 5-25 VDC NAMUR sensor; QV-X5XXXX: 10-30 VDC INDUCTIVE sensor; QV-X6XXXX: 10A @ 125/250 VAC mech. switch.
Lighting Supply Voltage: 28 VDC.
Enclosure Material: Polycarbonate housing and conduit.
Conduit Entrance: One 3/4" NPT.
Enclosure Rating: NEMA 4; 4X. Optional explosion-proof; rated: Class I; Groups A; B; C; D; Class II; Groups F & G; Div. 2.
Maximum Altitude: 2000 m (6560 ft).
Agency Approvals: CE; CSA; cUL; UL.
