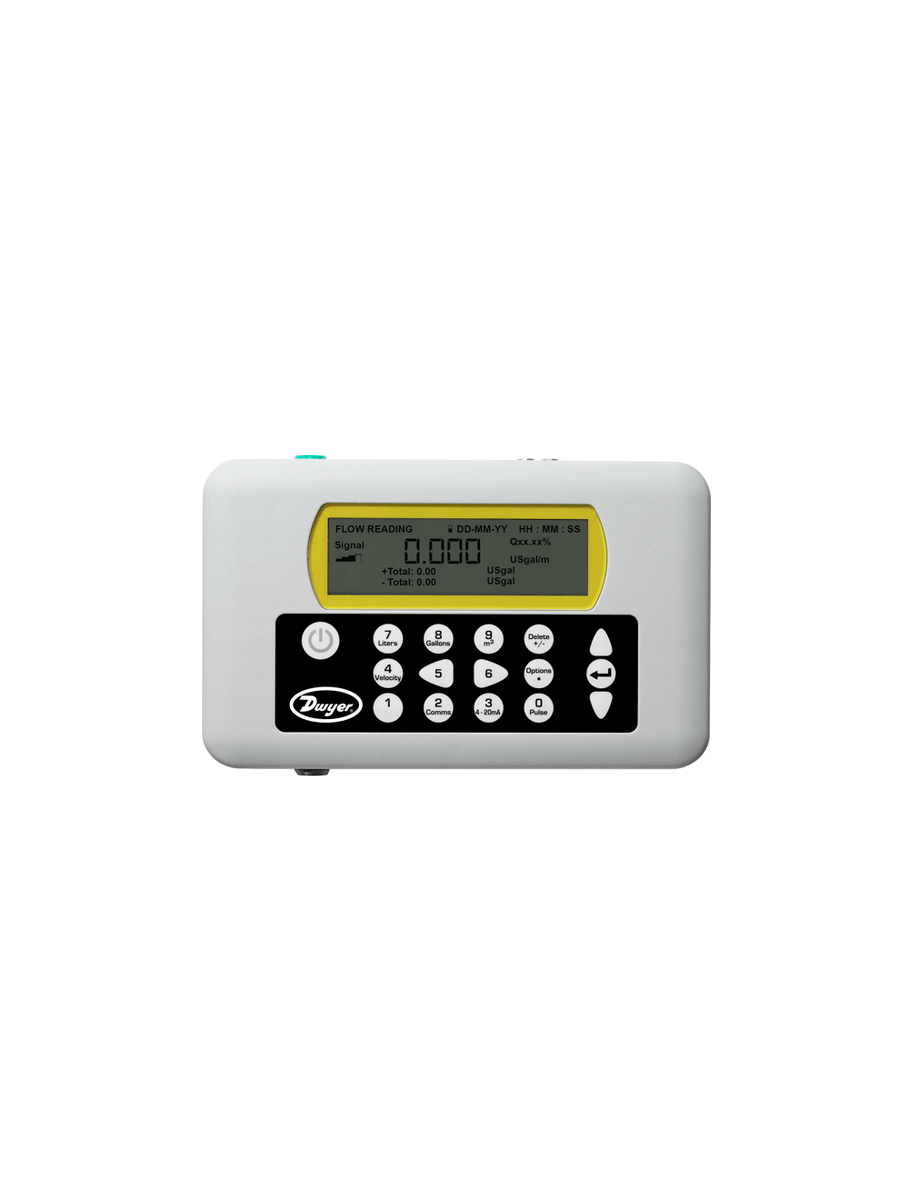

PUB-20 | Portable ultrasonic flowmeter converter Type B | 2" to 40" (50.7 to 1016 mm) pipe diameter range. | Dwyer

Portable ultrasonic flowmeter converter Type B, 2" to 40" (50.7 to 1016 mm) pipe diameter range.

Brand: DwyerSKU: PUB-20

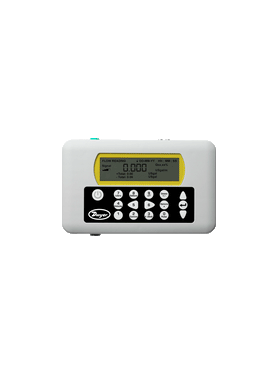

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PUB-20

Jump to: Overview & Specifications Reviews

Overview Details for PUB-20

See catalog product page for full listing

Portable ultrasonic flowmeter converter Type B | 2" to 40" (50.7 to 1016 mm) pipe diameter range.

Series PUB Portable Ultrasonic Flowmeter Kit

Portable and Non-Invasive

The Series PUB & PUF Portable Ultrasonic Flowmeter Kits utilize the transit-timedifference for measuring flow rates in pipes non-invasively. They are compact andlightweight instruments incorporating the latest electronics and signal processingtechnologies, realizing high performance and easy operation. These devices are perfect foron-the-go flow monitoring, capable of 20 hours continuous operation with built-in,rechargeable battery. The PUB comes with a rugged carrying case with molded foaminserts while the PUF boasts an IP67 rated case to hold and protect all equipmentconveniently. Their screens offer easy to read text with convenient backlight for visualcomfort. The efficient layout of the function keys adds to these units’ easy to useprogramming. These series offer analog as well as a pulsed outputs.

PRINCIPLES OF OPERATION
Two sensors are placed on the exterior of the pipe, and each transmits an ultrasonicpulse through the pipe and fluid to the other. The velocity of the liquid flowing throughthe pipes causes the pulse to accelerate or decelerate. The difference in the transittimes of the two pulses is used to calculate the flow rate. The use of transit timeallows the flowmeter to be unaffected by pressure or temperature changes.

Calibration Option available under Accessories.

For the data logging version see Series PUF.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Treated Water
River Water
Potable Water
Demineralized Water
Glycol/water mix
Hydraulic System
Diesel Oil
Sea Water

Kit Includes:
Converter
Set of Transducers
Transducer Holders
Set Transducer Cables (6.56' (2 m))
4 to 20 mA Communication Cables
12 VDC Power Supply
Ultrasonic Coupling Grease
Set of Chains
Ruled Guide Rail
Test Block
Carrying Case

Specifications

Series: PUB Portable Ultrasonic Flowmeter Kit
Category/Type: Flow
Type: Flow Transmitters
Series: PUB Portable Ultrasonic Flowmeter Kit
Service: Homogeneous liquids that do not contain air bubbles capable of ultrasonicwave propagation.
Inputs: Lemo connector cable from sensors.
Range: 0.33 to 65.62 ft/s (0.1 to 20 m/s).
Display: 240 x 64 pixel graphic display; high contrast black on white with backlight;Languages: English; French; German; Swedish; Italian; Spanish; Portuguese;Russian; Norwegian; and Dutch; 5.2" W x 1.5" H.
Accuracy: ±0.5 to 2% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and pipe ID> 2.95" (75 mm);±3% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and pipe ID in range0.512 to 2.95" (13 to 75 mm);±6% of flow reading for flow rate < 0.66 ft/s (0.2 m/s).
Power Requirements: 9 to 24 VDC; (1) 5-Cell NiMH battery; internal; factoryreplaceable (continuous operation time: 20 hours with back-light and output off)(recharging time: 6.5 hours; power adapter used).
Power Consumption: 10.5 W.
Power Adapter: 110/240 VAC adapter. UK; US; European adapters included.
Temperature Limits: -4 to 275°F (-20 to 135°C).
Outputs: Analog: 1 opto-isolated output: 4 to 20 mA; 0 to 16 mA or 0 to 20 mA (selectable); Error current: 0 to 26 mA (selectable); Load resistance: 620 Ω max; Pulse: 1 opto-isolated MOSFET relay; 150 mA max; 500 pps max; 200 Hz max.
Enclosure Rating: Converter: IP54; Transducers: IP51.
Materials: Flame retardant injection molded ABS plastic.
Repeatability: ±0.5 % of measured value or ±0.066 ft/s (0.02 m/s).
Electrical Connections: Multi-pin Lemo plugs.
Turbidity: < 3% by volume of particulate content.
Permissible Air Content: < 3% by volume.
Response Time: < 500 ms.
Weight: Unit without accessories: 2.3 lb (1.06 kg);Unit with accessories in carrying case: 13.23 lb (6.0 kg).
Agency Approvals: CE.
: ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Carbon steel; SS; copper; UPVC/PVDF; concrete;galvanized steel; mild steel; glass; brass.
Applicable Pipe Lining: Rubber; glass; concrete; epoxy; steel; other*.
Pipe Wall Thickness: 0.04 to 3" (1 to 75 mm).
Pipe Lining Thickness: < 1" (< 25 mm).
: *Selectable option for special material with known propagation rate of the liningmaterial.
