PRV-2 | Pneumatic roller vibrator. | Dwyer

Pneumatic roller vibrator.

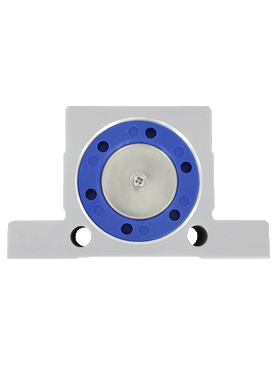

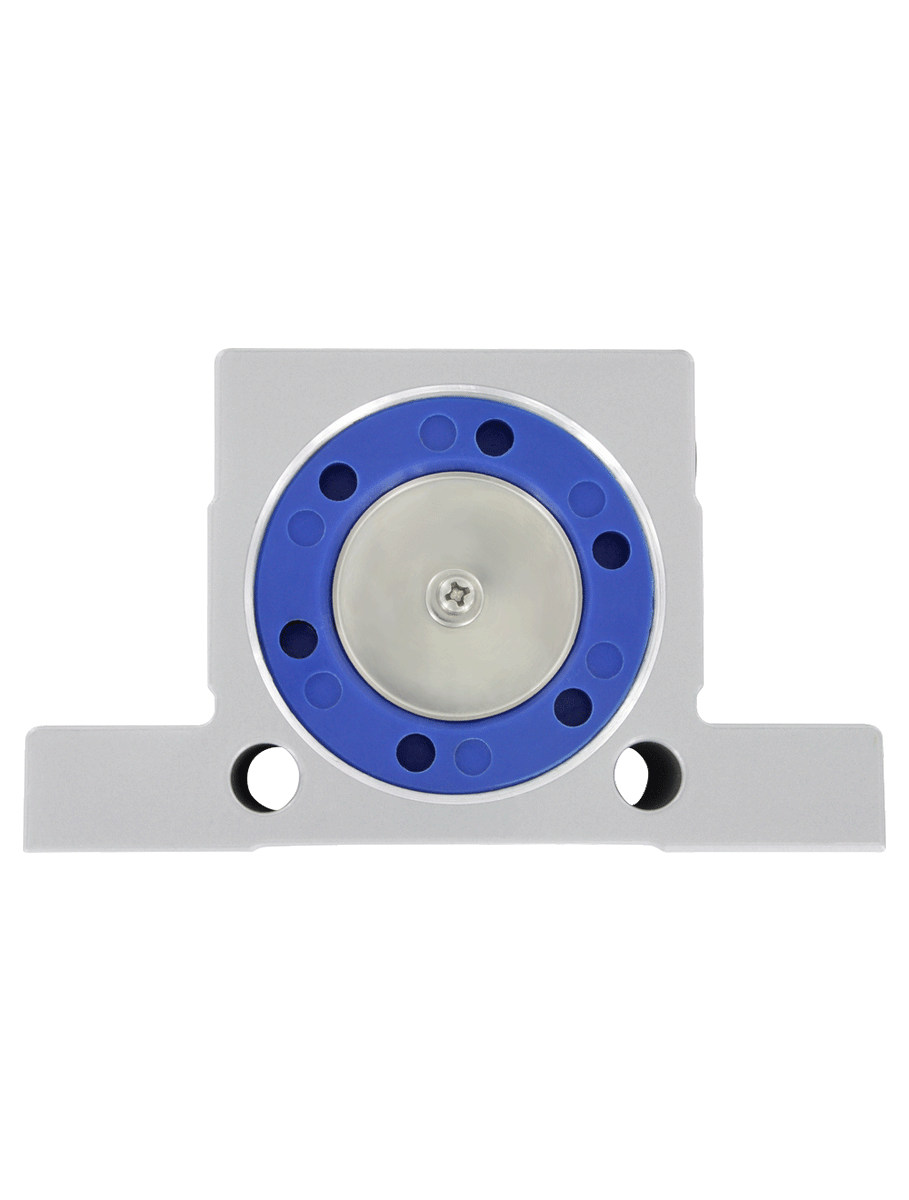

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PRV-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer PRV-2 Documents

Instruction Manual Series PRV Catalog Page More Info

Overview

Details for PRV-2

See catalog product page for full listing

Pneumatic roller vibrator.

Series PRV Pneumatic Roller Vibrator

Prevent Material Jams

Series PRV Pneumatic Roller Vibrators have a high vibration frequency feature that can prevent material jams in pipe delivery. It can also be applied for bridge-break or concrete injection operation conditions. The special aluminum body is equipped with a roller and ring with multi-nozzles. It is tightly closed by plastic side covers. Vibration is caused when the roller pushed by compressed air runs in a rotary motion to produce centrifugal force.

Special aluminum body is small in size and light-weight.
Frequency and amplitude of vibration can be adjusted as required.
The strongest vibration force driven by rollers among the same size products.

Specifications

Series: PRV Pneumatic Roller Vibrator
Category/Type: Level
Type: Bin Vibrators
Series: PRV Pneumatic Roller Vibrator
Temperature Limit: 212°F (100°C).
Noise Level Range: 75-100 dBA.
Supply Pressure: 29 to 87 psi (2 to 6 bar).
Air Consumption: See chart on Catalog Page.
Air Connection: 1/8" BSPT female with 1/4" OD push to connect adapter on PRV-1. 1/4" BSPT female with 1/4" OD push to connect adapter on PRV-2 and PRV-3. 3/8" BSPT female with 3/8" OD push to connect adapter on PRV-4.
