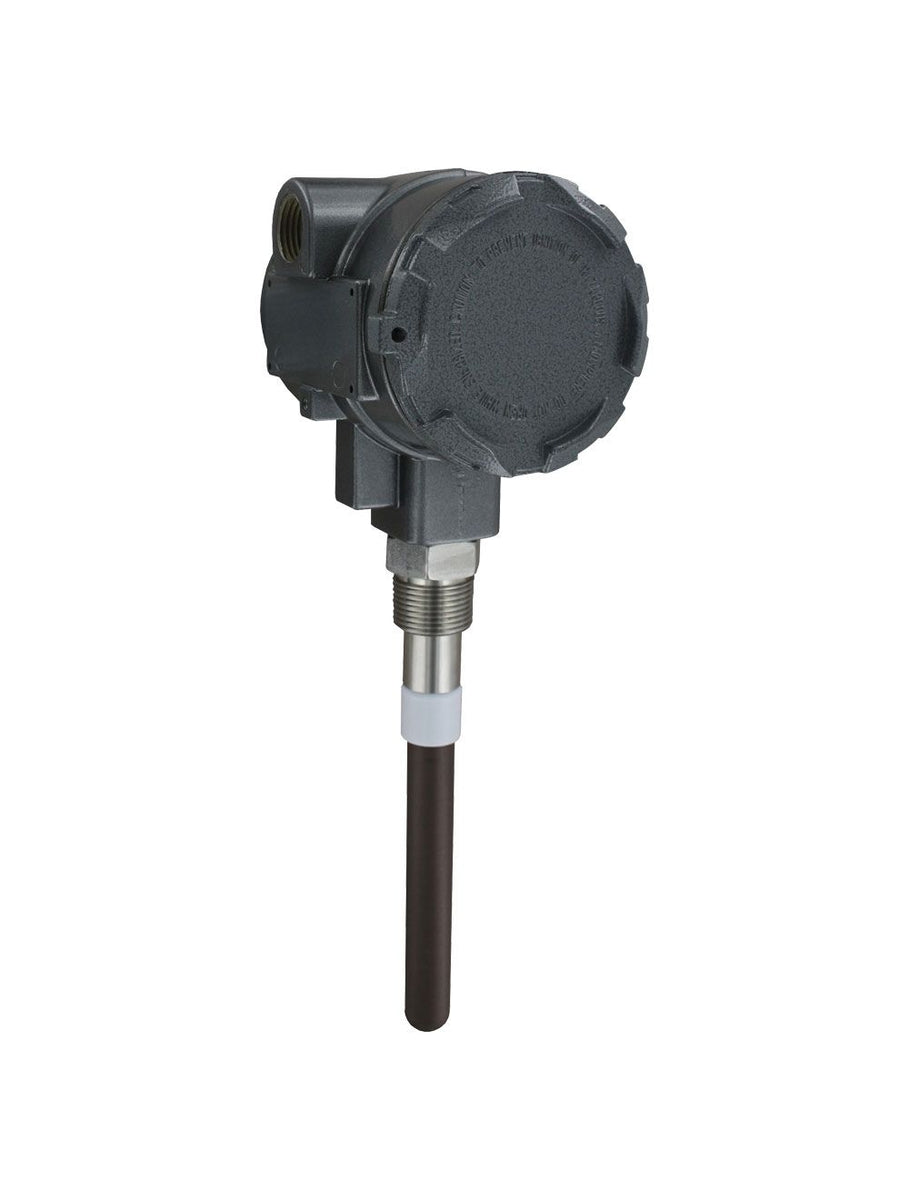

PMT2-15-A-U2 | Particulate transmitter | 15" probe | UL intrinsically safe rating | 3/4" male NPT process connections | 1/2" female NPT electrical connections | Dwyer

Particulate transmitter, 15" probe, UL intrinsically safe rating, 3/4" male NPT process connections, 1/2" female NPT electrical connections

Brand: DwyerSKU: PMT2-15-A-U2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PMT2-15-A-U2

Jump to: Overview & Specifications Reviews

Overview Details for PMT2-15-A-U2

See catalog product page for full listing

Particulate transmitter | 15" probe | UL intrinsically safe rating | 3/4" male NPT process connections | 1/2" female NPT electrical connections

Series PMT2 Particulate Transmitter

Digital Damping, Non-Stick Probe, For Broken Bag Detection

The Series PMT2 Particulate Transmitter is designed to measure particulate emission levels from dust collector discharge. Using DC coupled electrostatic induction sensing technology, the transmitter monitors a pA current that is generated as particulate passes near the probe; a 4 to 20 mA signal will vary based on the particulate level. The PMT2 offers 6 sensitivity ranges allowing the user to choose the range that will best fit the application. The range and test selector switch can also be set to output a 4 mA or 20 mA signal to assist with set up or trouble shooting. Averaging time setting can be used to dampen the signal if desired.

Product Applications

Emissions monitoring
Broken bag detection in dust collectors
Filter leak or wear detection
Bin vent monitoring

Simple 2-wire installation for PLC and control panels
Non-stick PTFE coated probe to prevent false readings from moist and conductivedusts, condensate, and dust buildup
Remote zero calibration helps to decrease maintenance time

Specifications

Series: PMT2 Particulate Transmitter
Category/Type: Process Control
Type: Particulate (Dust or Broken Bag) Transmitters
Series: PMT2 Particulate Transmitter
Service: Air and compatible gases; any type of particulate conductive or nonconductive.
Wetted Materials: 316L SS; silicone; and PTFE.
Enclosure: Powder coated aluminum.
Accuracy: ±5% of reading.
Particulate Size: 0.3 microns and higher.
Detection Range: 5 to 5000 pA (6 selectable range options).
Temperature Limits: Ambient: -40 to 145°F (-40 to 63°C); Process: -40 to 248°F (-40 to 120°C).
Pressure Limit: 30 psi (2 bar).
Output Signal: 4 to 20 mA.
Power Requirements: 12 to 28 VDC.
Electrical Connection: Two 1/2" female NPT conduit openings.
Terminal Block: Removable (16 to 20 AWG wire).
Process Connection: See model chart on catalog page.
Probe Lengths: See model chart on catalog page.
Enclosure Rating: UL Type 4 (IP66); ATEX/IECEx IP65.
Mounting Orientation: Any.
Averaging Time: 1 to 360 s (10 selectable options).
Weight: Varies with length of probe and type of mount.
Agency Approvals: CE; cULus; ATEX Compliant: 2813 II 1 G Ex ia IIB T4 GA (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C) / II 1 D Ex ia IIIC T120°C Da (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C). Type Certificate No.: DEMKO 16ATEX1768 X. ATEX Standards: EN 60079-0:2012/A11:2013; EN 60079-11:2012. IECEx Certified: Ex ia IIB T4 Ga (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C) / Ex ia IIIC T120°C Da (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C). Certificate of Conformity: IECEx UL 16.013X. IECEx Standards: IEC 60079-0: 2011; IEC 60079-11: 2011. UL Listed Intrinsically Safe for Class I; Groups C and D; Class II; Groups E; F and G; Class III; Class I Zone 0 AEx ia IIB T4 Ga; Class I Zone 0 Ex ia IIB T4 Ga.
