PME-42 | Steel enclosure for 2 meters. | Dwyer

Steel enclosure for 2 meters.

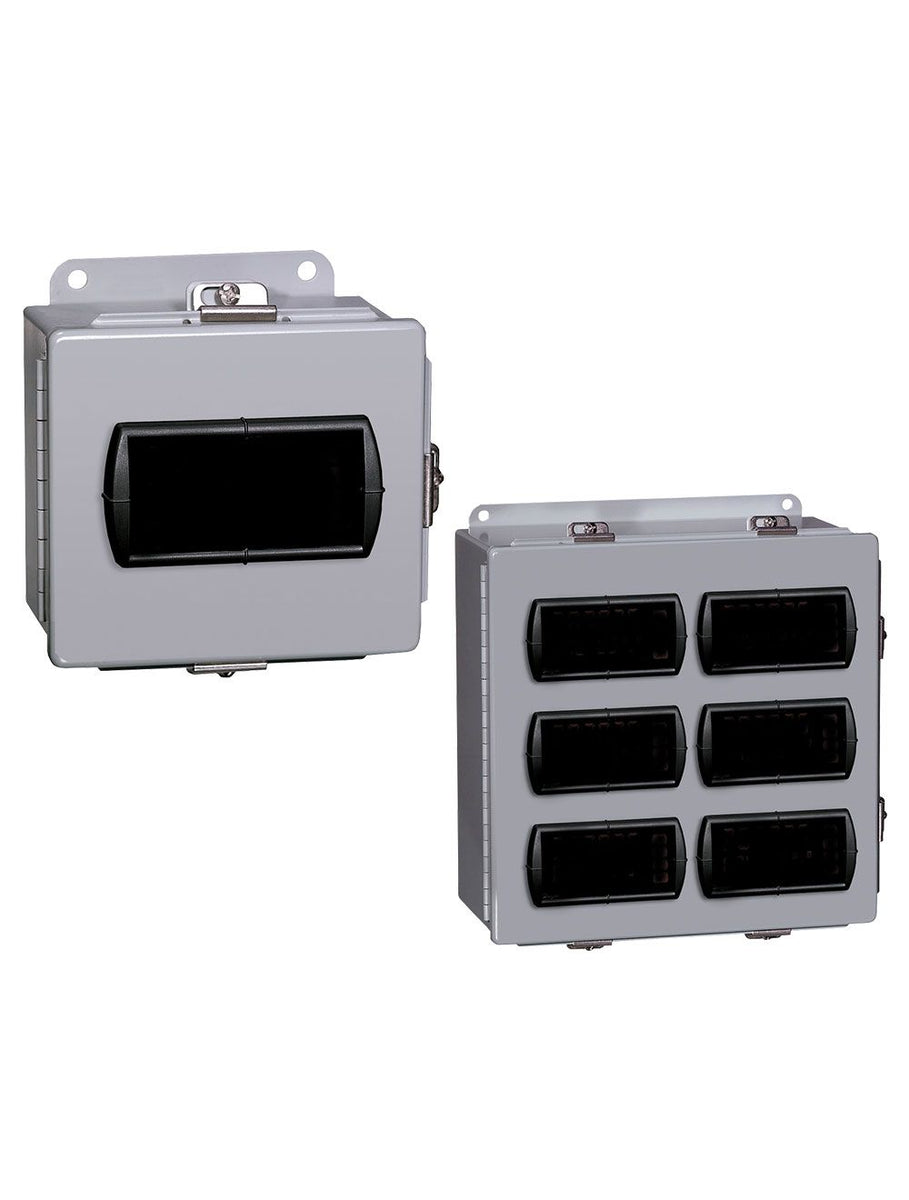

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PME-42

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer PME-42 Documents

Series PME Catalog Page More Info

Overview

Details for PME-42

See catalog product page for full listing

Steel enclosure for 2 meters.

SERIES PME PANEL METER ENCLOSURES

For 1/8 DIN Meters

Series PME Panel Meter Enclosures are available in Low-Cost Plastic, Plastic, Stainless Steel and Steel.

Specifications

Series: PME PANEL METER ENCLOSURES
Category/Type: Process Control
Type: Enclosures
Series: PME PANEL METER ENCLOSURES
: PME-01; PME-02 Low-Cost Plastic EnclosureMaterial: Thermoplastic polyester.Ratings: NEMA 4X (IP66).Dimensions: 5.9" x 7.9" x 6.3" (150 mm x 200 mm x 160 mm).Weight: 1.75 lb (0.79 kg).
: PME-11; PME-12; PME-13 Plastic EnclosuresMaterial: Thermoset polyester.Ratings: NEMA 4X (IP66).Dimensions: PME-11: 8.8" x 6.7" x 4.3" (224 mm x 170 mm x 110 mm); PME-12 & PME-13: 11.8" x 7.9" x 7.0" (300 mm x 201 mm x 178 mm).Weight: PME-11: 1.45 lb (0.66 kg); PME-12 & PME-13: 3.15 lb (1.43 kg).
: PME-14; PME-15; PME-16 Plastic EnclosuresMaterial: Thermoset polyester.Ratings: NEMA 4X (IP66).Dimensions: 15.8" x 11.8" x 7.0" (400 mm x 300 mm x 178 mm).Weight: 5.50 lb (2.49 kg).
: PME-21; PME-22; PME-23 Plastic EnclosuresMaterial: Thermoplastic.Ratings: NEMA 4X (IP66).Dimensions: PME-21: 7.7" x 6.4" x 5.1" (196 mm x 163 mm x 130 mm); PME-22: 9.7" x 6.4" x 5.1" (246 mm x 163 mm x 130 mm); PME-23: 11.7" x 8.4" x 5.1" (297 mm x 213 mm x 130 mm).Weight: PME-21: 1.60 lb (0.70 kg); PME-22: 2.20 lb (1.00 kg); PME-23: 3.00 lb (1.40 kg).
: PME-24; PME-25; PME-26 Plastic EnclosuresMaterial: Thermoplastic.Ratings: NEMA 4X (IP66).Dimensions: 13.7" x 12.4" x 7.1" (348 mm x 315 mm x 181 mm).Weight: 5.00 lb (2.30 kg).
: PME-31; PME-32; PME-33 Stainless Steel EnclosuresMaterial: 304SS.Ratings: NEMA 4X (IP66).Dimensions: PME-31: 7.5" x 6.9" x 4.0" (191 mm x 176 mm x 102 mm); PME-32: 9.5" x 6.9" x 3.5" (241 mm x 176 mm x 89 mm); PME-33: 11.5" x 8.9" x 4.0" (292 mm x 227 mm x 102 mm).Weight: PME-31: 3.80 lb (1.70 kg); PME-32: 5.10 lb (2.30 kg); PME-33: 7.90 lb (3.60 kg).
: PME-34; PME-35; PME-36 Stainless Steel EnclosuresMaterial: 304SS.Ratings: NEMA 4X (IP66).Dimensions: PME-31: 13.5" x 12.9" x 6.0" (343 mm x 329 mm x 152 mm).Weight: 13.90 lb (6.30 kg).
: PME-41; PME-42; PME-43 Steel EnclosuresMaterial: Steel.Ratings: NEMA 4X (IP66).Dimensions: PME-41: 7.5" x 6.9" x 4.0" (191 mm x 176 mm x 102 mm); PME-42: 9.5" x 6.9" x 3.5" (241 mm x 176 mm x 89 mm); PME-43: 11.5" x 8.9" x 4.0" (292 mm x 227 mm x 102 mm).Weight: PME-41: 3.80 lb (1.70 kg); PME-42: 5.10 lb (2.30 kg); PME-43: 7.90 lb (3.60 kg).
: PME-44; PME-45; PME-46 Steel EnclosuresMaterial: Steel.Ratings: NEMA 4X (IP66).Dimensions: 13.5" x 12.9" x 6.0" (343 mm x 329 mm x 152 mm).Weight: 13.90 lb (6.30 kg).
