Overview

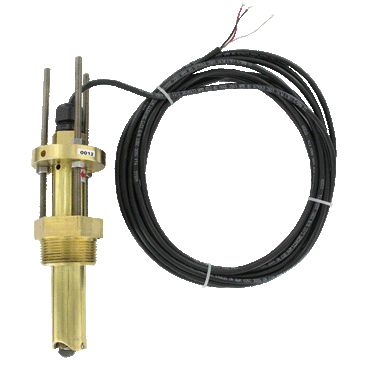

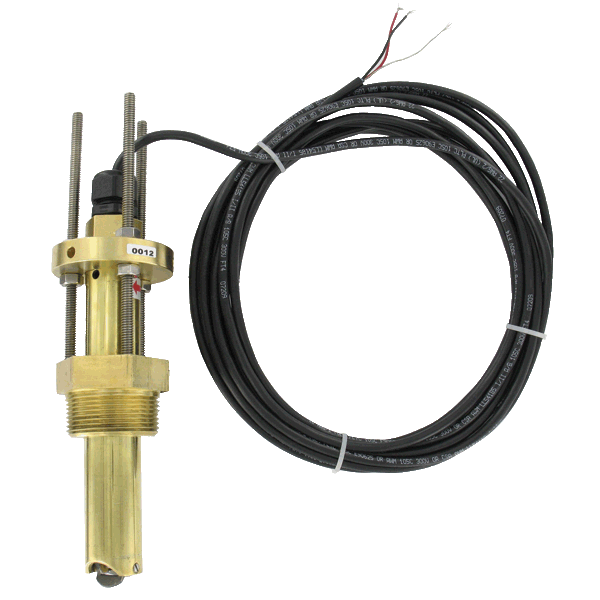

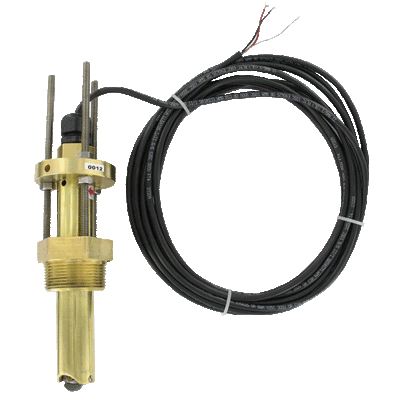

Details for PFT-IDN-B111-S
Insertion paddlewheel flow sensor | pulse output | brass body | 1-1/2" NPT connection | FKM seals | tungsten-carbide shaft | PTFE bearing.
Series PFT Paddlewheel Flow Sensor
The Series PFT Insertion Paddlewheel Flowmeters are used to monitor liquid flow rates in pipes from 1-1/2 to 40" and is available in brass or 316 SS body. The unit outputs a frequency proportional pulsed or 4 to 20 mA output. The pulse models are a square wave output signal with frequency proportional to the flow velocity and the 4 to 20 mA models have a linear output of the velocity with 4 mA equal to 0 ft/s and 20 mA equal to 25 ft/s.
Product Applications
- Irrigation
- Ground water remediation
- Cooling systems
- Pump protection
- Leak detection
- Filtration systems
- Long product life even in applications with particulate due to bearings and shaft that offer excellent wear protection
- Use in irrigation applications with weatherproof and submersible ratings
- Save time and inventory with one unit that is adjustable over a large pipe size range
- Application versatility with a variety of wetted material selections
- Reduce need for additional external components with integral 4-20 mA output
- Eliminate concerns regarding magnetic material in flow due to sensor technology, which uses inductive sensing and no magnets
Specifications
- Series
- PFT Paddlewheel Flow Sensor
- Service
- Water-based fluids.
- Range
- 1.2 to 25 ft/s (0.37 to 7.62 m/s).
- Wetted Materials
- Body and fitting: Brass or 316 SS; Fitting O-ring: FKM standard; silicone or Buna-N optional; Impeller: 316 SS; Shaft: tungsten carbide standard or 316 SS optional; Bearing: PTFE standard.
- Linearity
- ±1.0% of FS.
- Repeatability
- ±0.5% of FS.
- Temperature Limits
- -40 to 212°F (-40 to 100°C).
- Pressure Limits
- 400 psig (27.6 bar) @ 100°F (37.8°C); 325 psig (22.4 bar) @ 212°F (100°C).
- Process Connection
- 1-1/2" NPT male standard; 2" NPT male optional.
- Output
- > Pulse: NPN open collector with square wave output; rated 60 V @ 50 mAmaximum. Frequency: 3.2 to 200 Hz. Pulse Width: 2.5 msec ±25%.4 to 20 mA: 4 mA is 0 ft/s; 20 mA is 25 ft/s.
- Power Requirement
- 10 to 35 VDC.
- Power Consumption
- 40 mA (max).
- Electrical Connection
- 22 AWG shielded UL type PTLC rated 105°C; 20' (6.1 m) long with cable gland. Can be extended up to 2000' (609 m) with similar cable. Optional UL listed burial rated cable.
- Enclosure Rating
- NEMA 6P (IP67) *.
- Housing Materials
- Brass or 316 SS.
- Weight
- 3 lb. (1.36 kg).
- Agency Approvals
- CE.
- *Brass units IP67 only.
