OP-P-2 | Orifice plate flowmeter | 14" line size | 6.600" bore | 0.50 Beta | water capacity: 100" d.p. W/C | 1537.49 GPM flow; air capacity: 100" d.p. W/C | 5477.67 SCFM @ 14.7 psia | 8812.87 SCFM @ 20 psig | 16409.42 SCFM @ 100 psig; 40 lb. | Dwyer
Orifice plate flowmeter, 14" line size, 6.600" bore, 0.50 Beta, water capacity: 100" d.p. W/C, 1537.49 GPM flow; air capacity: 100" d.p. W/C, 5477.67 SCFM @ 14.7 psia, 8812.87 SCFM @ 20 psig, 16409.42 SCFM @ 100 psig; 40 lb.
Documents and manuals
Dwyer OP-P-2 Documents
Overview
Details for OP-P-2
Orifice plate flowmeter | 14" line size | 6.600" bore | 0.50 Beta | water capacity: 100" d.p. W/C | 1537.49 GPM flow; air capacity: 100" d.p. W/C | 5477.67 SCFM @ 14.7 psia | 8812.87 SCFM @ 20 psig | 16409.42 SCFM @ 100 psig; 40 lb.
Series OP Orifice Plate Flowmeter

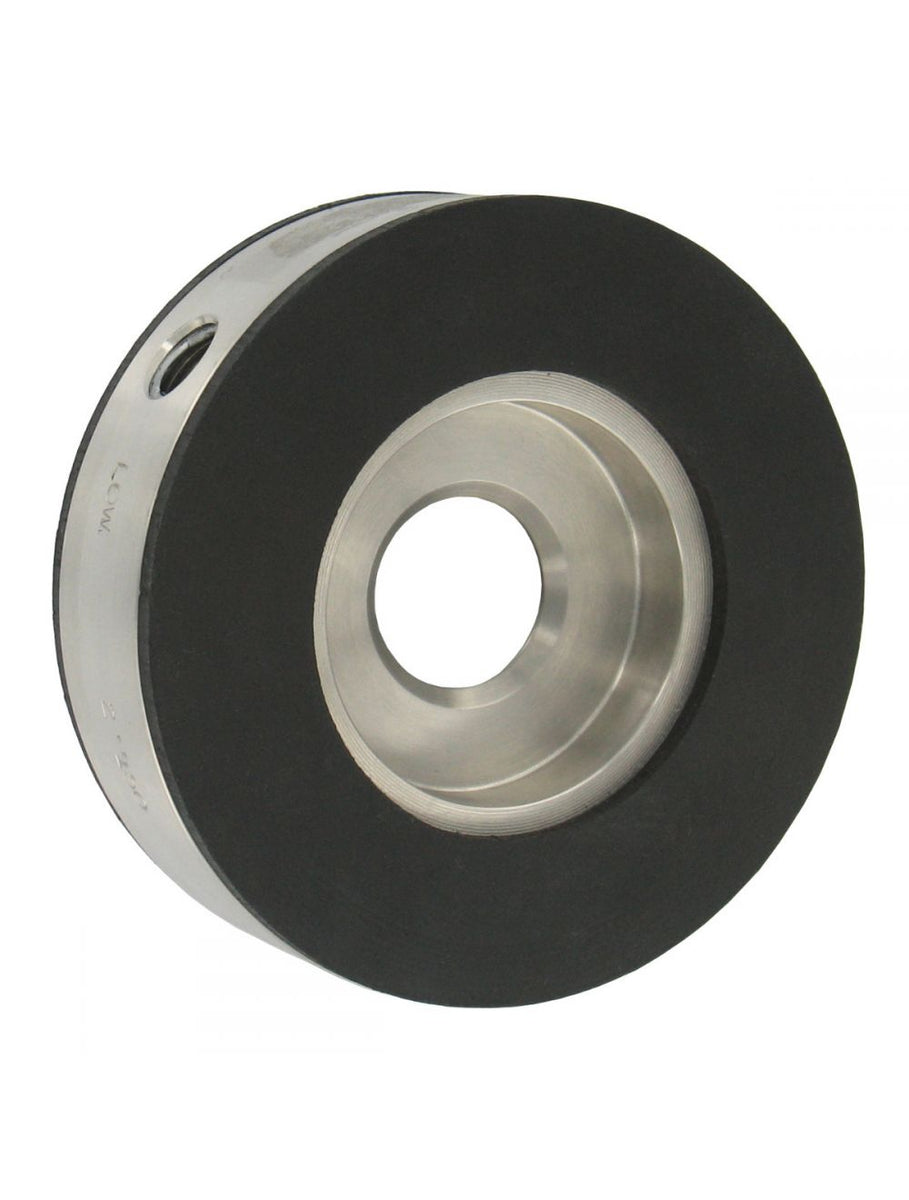

The Series OP Orifice Plate Flowmeter is a complete orifice plate flow metering package. It incorporates a stainless steel orifice plate with a unique holder or carrier ring containing metering taps and integral gaskets. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. Installation is accomplished simply by slipping the unit between standard flanges (orifice flanges are not required). The Series OP is available in line sizes from 1/2" to 24" and can be used with compatible liquids and gases.
Product Applications
- Fluid flow rates in building water lines
- Boiler feedwater
- Cooling water
- Combustion or compressed air
- Steam flow
- Mounted with standard flanges
- Standard "corner tap" configuration
- Corrosion free material
- Simplified installation
- Built in metering taps (1/4" female NPT STD)
- Proven through a wide range of applications for accuracy and energy efficiency
- Assures long term reliability and accuracy
Specifications
- Series
- OP Orifice Plate Flowmeter
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- OP Orifice Plate Flowmeter
- Service
- Compatible liquids and gases.
- Wetted Material
- 304 SS; Buna-N gaskets.
- Accuracy
- ±0.6% full scale flow. (Beta= .2-.6) ±0.7% for Beta greater than .6.
- Temperature Limits
- -50 to 200°F (-45 to 93°C).
- Pressure Limits
- 150 psi max.
- Head Loss
- 1 - Beta ratio²; eg: 1 - 07² = 1 - 0.49 = 51% of the d.p.
- Line Sizes
- 1/2" to 24".
- Process Connections
- 1/4" female NPT.
- Installation
- Standard flange 125#/150# rating.
- Pipe Requirements
- General requirements 10 diameter upstream and 5 diameter downstream.
- Weight
- Varies with line size. See Catalog page.
