Documents: NVII-2B

Series NVII Catalog Page More Info

NVII-2B | Needle valve (male x female). | Dwyer

Needle valve (male x female).

Brand: DwyerSKU: NVII-2B

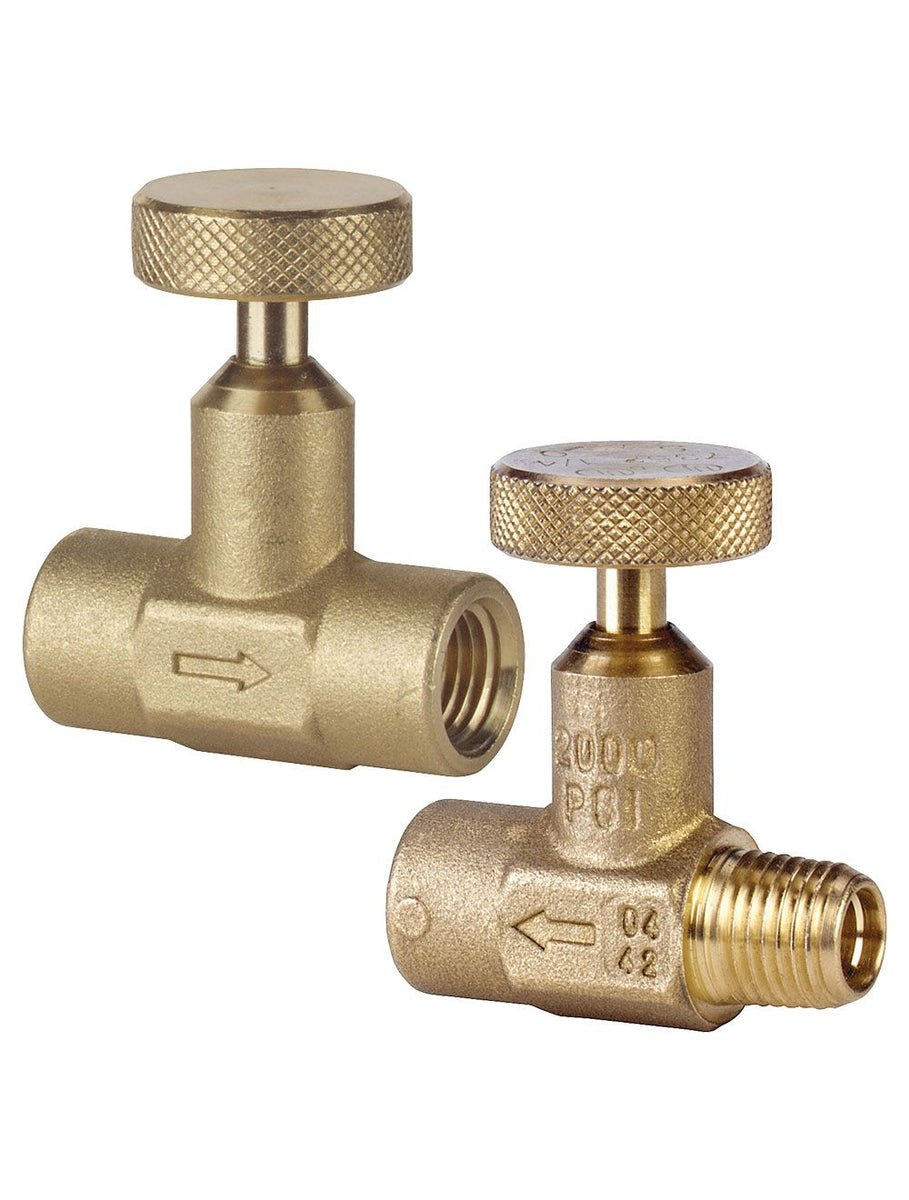

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NVII-2B

Jump to: Overview & Specifications Reviews

Overview Details for NVII-2B

See catalog product page for full listing

Needle valve (male x female).

Series NVII Needle Valve

Economical, Pressures Up to 2000 psi, Blowout-Proof Stem

The Model NVII Needle Valves provide easy flow regulation in all applications, including shut off and throttling for pressure gages and instruments. With a one piece, hot forged brass body construction, years of maintenance-free service can be expected. The Model NVII, with its tamper-proof design and blowout-proof stem, provides excellent performance and reliability.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Instrument line shut off, instrument isolation, drain valve, and pressure gages

Pressures to 2000 psi
One piece body construction
Tamper proof design and blowout-proof stem

Specifications

Series: NVII Needle Valve
Category/Type: Valves
Type: Valves
Valve Type: Needle
Series: NVII Needle Valve
Service: Gases and liquids compatible with wetted materials. Not rated for steam use.
End Connection Size: 1/4" female NPT.
Pressure Limit: 2000 psi (138 bar) (CWP).
Wetted Materials: Valve Body: brass (CW617N); Retainer; Handwheel: brass (CW614N); O-Ring: fluoroelastomer.
Temperature Limits: -40 to 350°F (-40 to 176.7°C). (Warning: freezing of the fluid in the installation may severely damage the valve.)
Flow Coefficient: 0.31.
Weight: 0.22 lb.
