NVII-1B | Needle valve (female x female). | Dwyer
Needle valve (female x female).

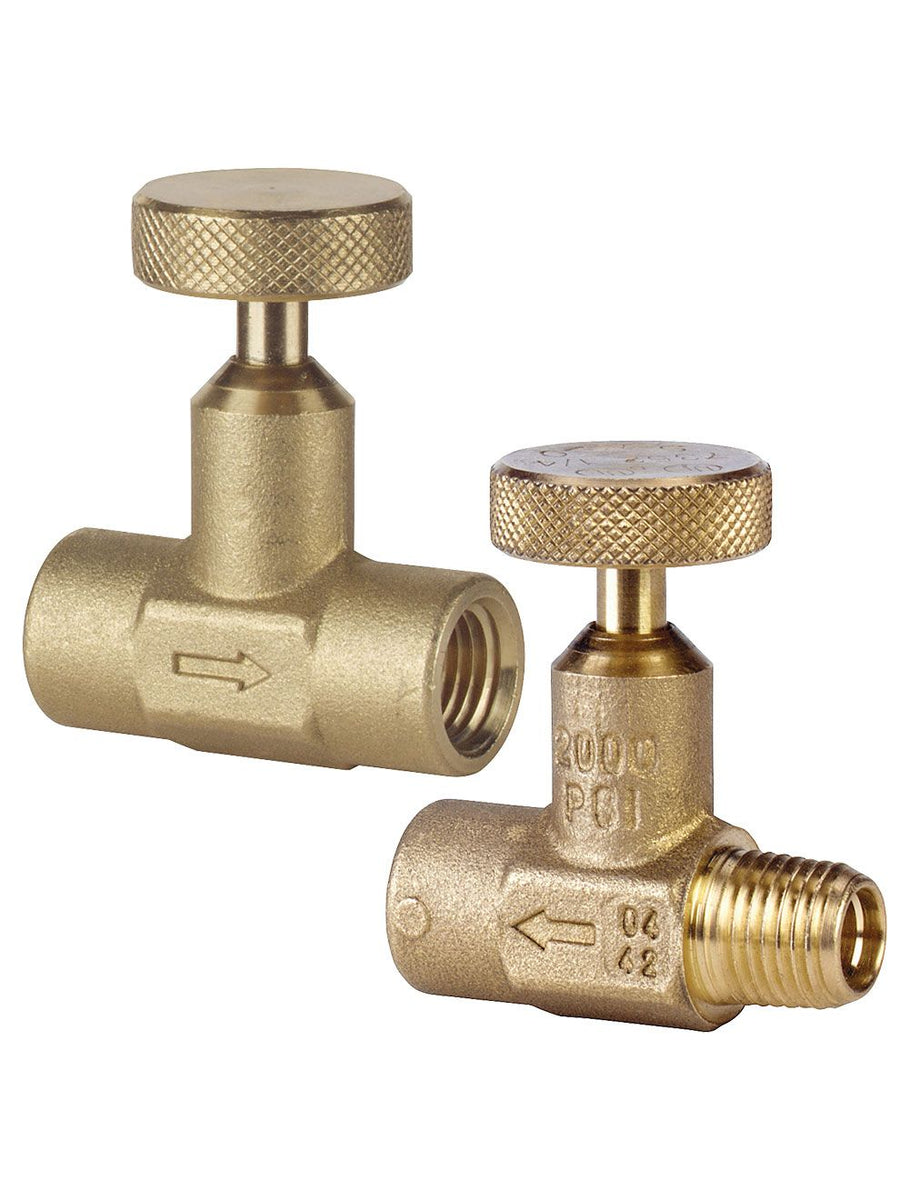

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NVII-1B
Documents and manuals
Dwyer NVII-1B Documents
Overview
Details for NVII-1B
See catalog product page for full listing
Needle valve (female x female).
Series NVII Needle Valve
Economical, Pressures Up to 2000 psi, Blowout-Proof Stem
The Model NVII Needle Valves provide easy flow regulation in all applications, including shut off and throttling for pressure gages and instruments. With a one piece, hot forged brass body construction, years of maintenance-free service can be expected. The Model NVII, with its tamper-proof design and blowout-proof stem, provides excellent performance and reliability.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Instrument line shut off, instrument isolation, drain valve, and pressure gages
- Pressures to 2000 psi
- One piece body construction
- Tamper proof design and blowout-proof stem
Specifications
- Series
- NVII Needle Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Needle
- Series
- NVII Needle Valve
- Service
- Gases and liquids compatible with wetted materials. Not rated for steam use.
- End Connection Size
- 1/4" female NPT.
- Pressure Limit
- 2000 psi (138 bar) (CWP).
- Wetted Materials
- Valve Body: brass (CW617N); Retainer; Handwheel: brass (CW614N); O-Ring: fluoroelastomer.
- Temperature Limits
- -40 to 350°F (-40 to 176.7°C). (Warning: freezing of the fluid in the installation may severely damage the valve.)
- Flow Coefficient
- 0.31.
- Weight
- 0.22 lb.
