MV5-SF4 | Mini brass ball valve | screwdriver slot | 1/2" pipe size | Dwyer

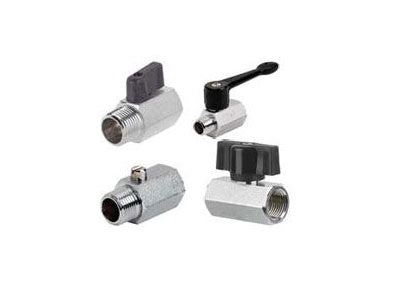

Mini brass ball valve, screwdriver slot, 1/2" pipe size
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MV5-SF4
Documents and manuals
Dwyer MV5-SF4 Documents
Overview
Details for MV5-SF4
See catalog product page for full listing
Mini brass ball valve | screwdriver slot | 1/2" pipe size
SERIES MV MINI BRASS BALL VALVE
Economical, Compact Design
Series MV Mini Brass Ball Valves are ideal for use in small, confined spaces, where larger valves are of no use. Installation is made easy with a choice of female x female or male x female process connections. Pure PTFE ball seats provide broad media compatibility and bubble tight shutoff. Double seal system allows valve to be operated in both directions.
Product Applications
- Gas or liquid flow control
- Ideal for small, confined spaces
- Bubble tight shut off
- Economical
- Valve can be operated in both directions
Specifications
- Series
- MV MINI BRASS BALL VALVE
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- MV MINI BRASS BALL VALVE
- Service
- Gases and liquids compatible with wetted materials. Not rated for steam use.
- End Connections
- NPT; see Catalog page.
- Pressure Limits
- -29" Hg to 450 psi (-736 mm Hg to 31 bar) (CWP).
- Temperature Limits
- -4 to 250ºF (-20 to 121ºC).
- Wetted Materials
- Valve Body: Chrome-plated brass;Valve Ball: Chrome-plated brass;O-Ring Stem Seal: Fluoroelastomer;Series MV Mini Brass Ball Valve Ball Seats: PTFE.
