MTL7787 | Intrinsically safe zener barrier. | Dwyer

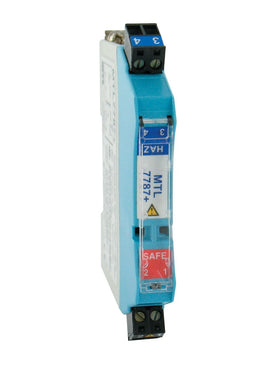

Intrinsically safe zener barrier.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MTL7787
Documents and manuals
Dwyer MTL7787 Documents
Overview
Details for MTL7787
See catalog product page for full listing
Intrinsically safe zener barrier.
SERIES MTL7706/7787 ZENER BARRIER
Intrinsically Safe Barriers for Hazardous Locations
The MTL7706/7787 is an intrinsically safe (IS) shunt-diode barrier that can be used to communicate with and provide isolations for certain Dwyer® transmitters approved for use in hazardous areas. These barriers limit the amount of energy allowed to pass into the hazardous area, which inhibit ignition in flammable atmospheres.
Product Applications
- Electrically isolates pressure and level transmitters from unregulated circuits for intrinsically safe applications
- Approved for use in hazardous areas
Specifications
- Series
- MTL7706/7787 ZENER BARRIER
- Category/Type
- Process Control
- Type
- Intrinsically Safe Barriers
- Series
- MTL7706/7787 ZENER BARRIER
- Transmitter Voltage
- 16.2 V @ 20 mA with 250Ω load (negative w.r.t. earth); 11.0 V @ 20 mA with 500Ω load (negative w.r.t. earth).
- Safe Area Output
- 4 to 20 mA.
- Load Resistance
- 0 to 500Ω.
- Power Requirement
- 20 to 35 VDC w.r.t. earth.
- Accuracy
- ±2 µA under all conditions.
- LED Indicator
- Green: Power Indication.
- Temperature Limits
- Operating: -4 to 140°F (-20 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
- Humidity
- 5 to 95% RH.
- Terminals
- Accommodate up to 2.5 mm² stranded or single-core.
- Safety Description
- 28 µV; 300Ω; 93 mA.
- Weight
- 4.9 oz (140 g).
- Agency Approvals
- See table on Catalog page.
