TR-7-AXL | Ground continuity control with 72" cable | stud type contactor with pilot lights | Dwyer

Ground continuity control with 72" cable, stud type contactor with pilot lights

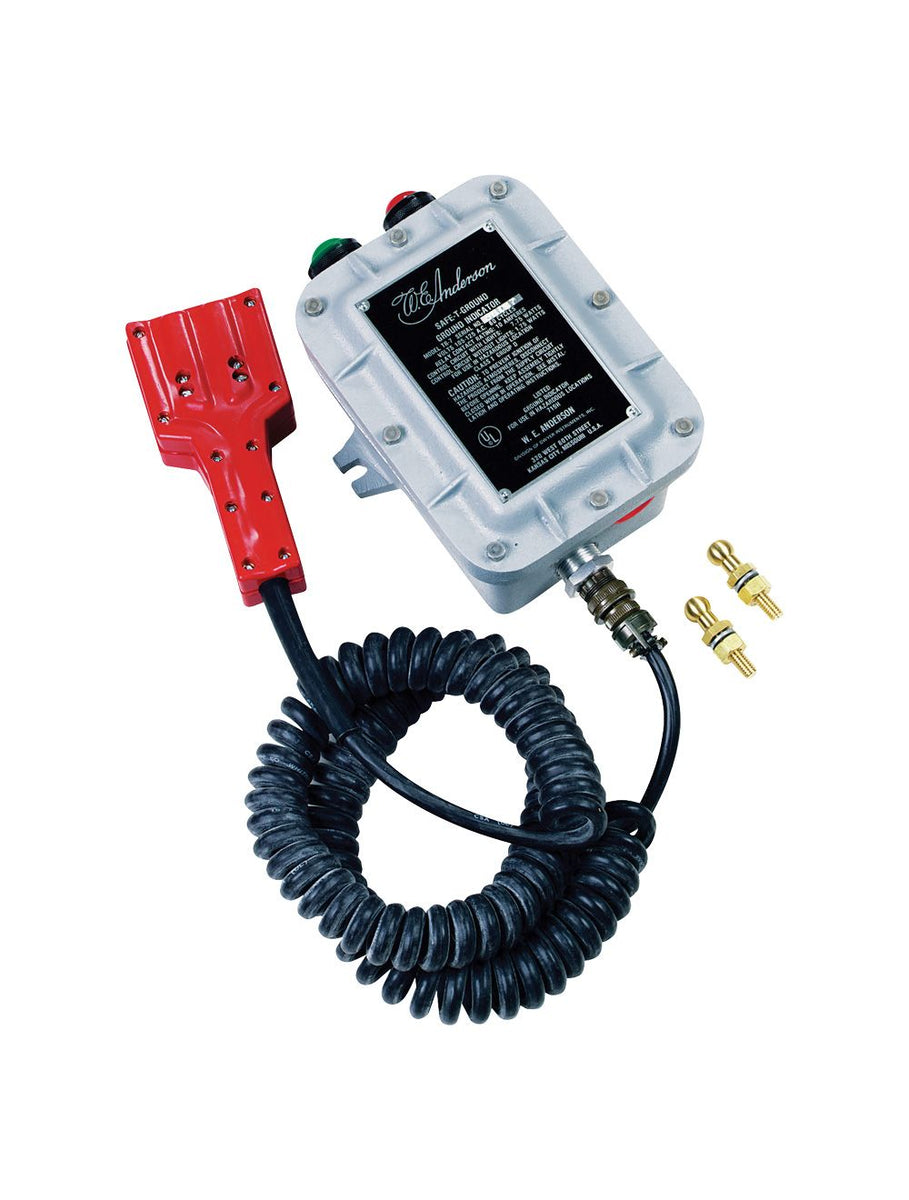

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TR-7-AXL

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TR-7-AXL Documents

Instruction Manual Model TR-7 Catalog Page More Info

Overview

Details for TR-7-AXL

See catalog product page for full listing

Ground continuity control with 72" cable | stud type contactor with pilot lights

MODEL TR-7 SAFE-T-GROUND

Explosion-proof, Intrinsically Safe, Ground Continuity Control

Model TR-7 Safe-T-Ground provides continuous monitoring of a truck’s ground connection throughout loading operations. Static electricity is often brought in by tank trucks entering the loading area. The Safe-T-Ground Model TR-7 instantly stops loading operations if a tank truck loses its ground.
To safeguard loading operations, the Safe-T-Ground circuit can be wired into your pump control – and to an audible alarm or signal light.

Product Applications

Chemical
Oil and gas

Explosion-proof housing
Audible alarm and LED status indicators

Specifications

Power Requirements: 105-125 VAC 60 Hz 7.75 watts - with light; 1.75 watts - without lights. Optional 220-240VAC; 50/60 Hz.
Electrical Rating; Relay: DPDT; 10 amps; 125 VAC; 60 Hz contact rating.
Wiring: Terminal strip.
Conduit Connection: 3/4" NPT.
Installation: 7/16" mounting lugs; integrally cast.
Contactor: (Grounding clamp) molded polyethylene with berylium copper contact clips. 16-2 type SO coiled cable; retracts to 3'; extends to 16'.
Grounding Studs: 2 supplied. Order a pair for each truck.
Shipping Weight: 20 lb with contactor and cord.
Agency Approvals: UL.
