MSV-SD340 | 2-way ball valve | 3/8" fractional tube connection | 6.35 mm orifice. | Dwyer

2-way ball valve, 3/8" fractional tube connection, 6.35 mm orifice.

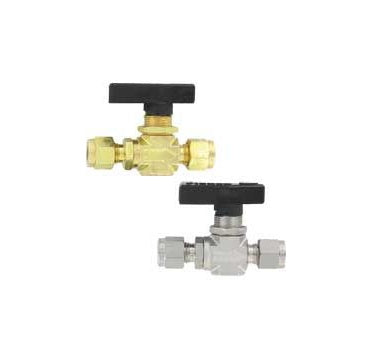

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MSV-SD340

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer MSV-SD340 Documents

Series MSV Catalog Page More Info

Overview

Details for MSV-SD340

See catalog product page for full listing

2-way ball valve | 3/8" fractional tube connection | 6.35 mm orifice.

SERIES MSV COMPACT TWO WAY BALL VALVE

Blowout-proof Ball & Stem

The Series MSV Compact Two Way Ball Valves are the perfect choice for directional control of fluid in instrumentation and process systems. The micro finished ball and PTFE seats ensure quality seal and easy operation. The straight through flow path design allows for minimal pressure drop. The valve body comes in either brass or 316 stainless steel, offering a variety of options. Blow out proof ball and stem provides extra durability and safety in the event of over pressure.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: MSV COMPACT TWO WAY BALL VALVE
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: MSV COMPACT TWO WAY BALL VALVE
Service: Gases and liquids compatible with wetted materials.
Wetted Materials: Body; Connector: 316 SS or Brass; Stem; Ball: 316 SS; Stem O-ring; Connector O-ring; Back-up Rings: Fluoroelastomer; Ball Seats: PTFE.
Pressure Limits: 1500 psig (103 bar).
Temperature Limit: -40 to 350°F (-40 to 176°C).
Connections: Female NPT; fractional tube fitting.
