MSCS-220015 | Miniature current switch | split core | fixed set point | 0.15 to 60 A | Dwyer
Miniature current switch, split core, fixed set point, 0.15 to 60 A

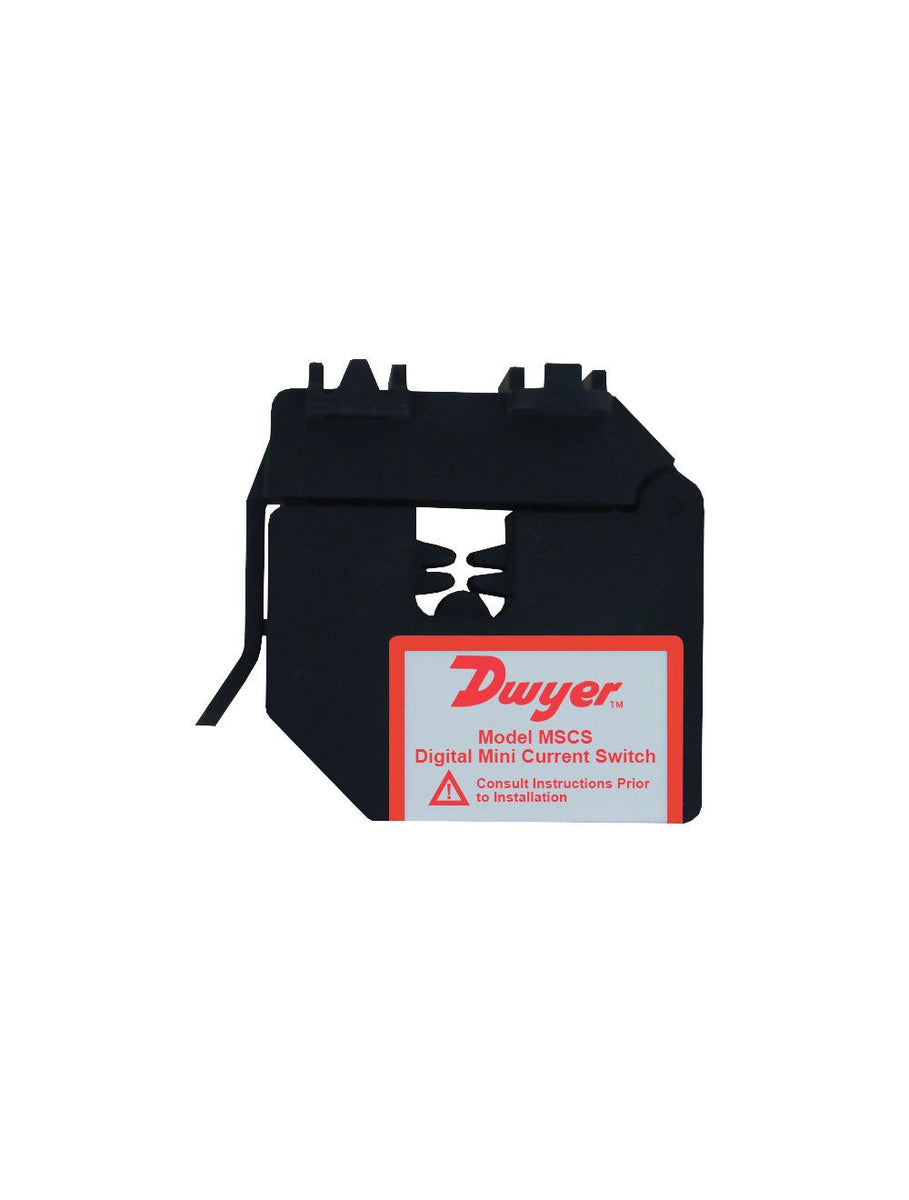

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSCS-220015
Documents and manuals
Dwyer MSCS-220015 Documents
Overview
Details for MSCS-220015
See catalog product page for full listing
Miniature current switch | split core | fixed set point | 0.15 to 60 A
Model MSCS Miniature Current Switch
Split Core, Integral Mounting Tabs
MODEL MSCS MINIATURE CURRENT SWITCH is a low cost solution for monitoring on and off status of light to medium current loads in compact spaces. This unit has a split core design and has a fixed set point of 0.15 amps. It is designed to detect changes in operating current to prevent motor belt loss, slippage, or mechanical failure.
Product Applications
- BAS
- HVAC
- Small industrial motors
- Refrigeration
- Pumps
- Fans
- Lighting
- Integral mounting flange for quick installation
- Compact size fits in any space
Specifications
- Power Requirements
- None; self-powered.
- Temperature Limits
- 5 to 140°F (-15 to 60°C).
- Humidity Limits
- 0 to 95%; non-condensing.
- Isolation Voltage
- 300 VAC RMS.
- Frequency
- 50/60 Hz.
- Enclosure Rating
- UL 94 V-0 flammability rated; ABS plastic housing.
- Agency Approvals
- CE; cULus.
