MPCJR-RV-232 | Series MPC Jr. pump controller | with retransmission of input | 0 to 10 VDC | and RS-232 Modbus® RTU serial communications | Dwyer

Series MPC Jr. pump controller, with retransmission of input, 0 to 10 VDC, and RS-232 Modbus® RTU serial communications

Brand: DwyerSKU: MPCJR-RV-232

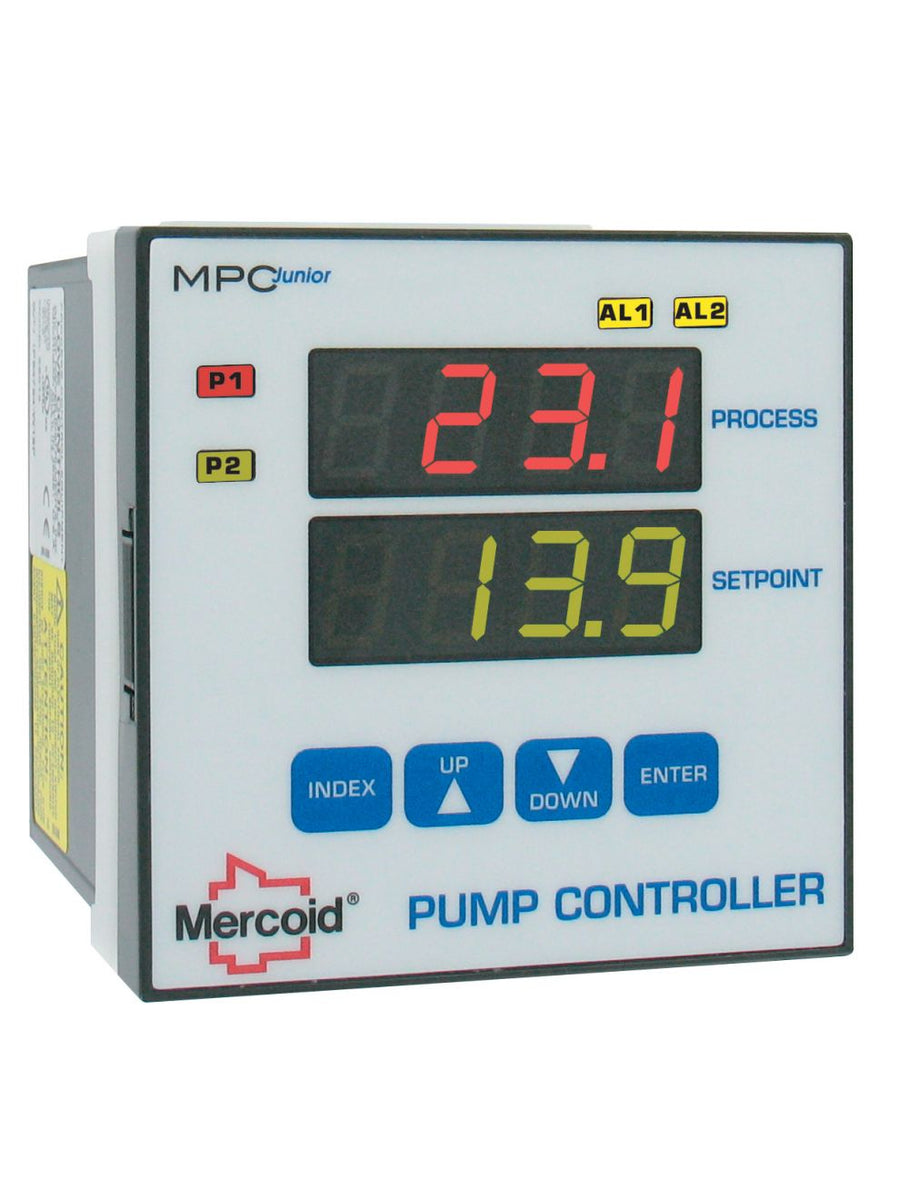

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MPCJR-RV-232

Jump to: Overview & Specifications Reviews

Overview Details for MPCJR-RV-232

See catalog product page for full listing

Series MPC Jr. pump controller | with retransmission of input | 0 to 10 VDC | and RS-232 Modbus® RTU serial communications

Series MPCJR Pump Controller

One or Two Pump Control with Built-In Alternation

The Mercoid MPC Junior Pump Controller provides versatile level control in a standard 1/4 DIN package. Designed for use with almost any style level transmitter the unit displays the present level and main set point value. Incorporated in the MPC Jr. is programmable level differential for on/off control of one or two pumps, valves, or other devices through two SPDT relays. Also featured are two additional programmable alarm contacts with front alarm light indication.

The MPC Jr. is flexible and incorporates a user-friendly programming menu. The front face meets NEMA 4X for outdoor panel mounting.

Product Applications

Water and wastewater
Sump and sludge pits, clarifiers, digesters
Chemical storage tanks
Oil tanks
Reservoirs

Selectable pump alternation when used with two pumps to minimize pump wear
Integral 24 VDC power supply for transmitter
User selectable security lock-out of programming and/or set points
Optional process input retransmission as a current (4 to 20 mA) or voltage (2 to 10 VDC) analog signal
Analog output on pump "on" condition for activation of separate pump run time meters

Specifications

Series: MPCJR Pump Controller
Category/Type: Level
Type: Pump Controllers
Series: MPCJR Pump Controller
Inputs: 4 (or 0) to 20 mA DC or 2 (or 0) to 10 VDC selectable.
Input Impedance: Current = 10 ohms; Voltage = 5 K ohms.
Output Ratings: Control Relays: SPDT; rated 10 A @ 240 VAC res.; 1/4 hp @ 120 VAC; 1/3 hp @ 240 VAC; Alarm Relays: SPST; 3 A @ 240 VAC res.; 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two.
Control Type: On/off; reverse (pump out) or direct (pump in) acting.
Power Requirements: 100 to 240 VAC nominal; +10%-15%; 50 to 400 Hz; single phase; 132 to 240 VDC nominal; +10%-15%.
Power Consumption: 7.5 VA maximum.
Accuracy: ±0.25% of span; ±1 least significant digit.
Display: Two 4-digit; 7 segment 0.56" high LEDs.
Display Resolution: 1 count.
Memory Backup: Nonvolatile memory (no batteries required).
Serial Communications: Optional RS-232 or RS-485 with Modbus® protocol.
Ambient Operating Temperature/RH: 14 to 131°F (-10 to 55°C); 0 to 90% up to 104°F (40°C) non-condensing; 10 to 50% at 131°F (55°C) non-condensing.
Weight: 16 oz (454 g).
Front Panel Rating: Meets UL Type 4X (IP66).
Loop Power Supply (isolated): 24 VDC @ 50 mA; regulated.
Agency Approvals: cULus.
: NOTE: For compatible level transmitters; see Mercoid Series PBLT2/PBLTX and SBLT2/SBLTX.
