MP-002 | Differential pressure switch/gage | range 0-2.0" water. | Dwyer

Differential pressure switch/gage, range 0-2.0" water.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MP-002

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer MP-002 Documents

Instruction Manual Series MP Catalog Page More Info

Overview

Details for MP-002

See catalog product page for full listing

Differential pressure switch/gage | range 0-2.0" water.

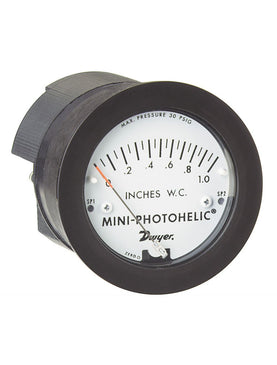

Series MP Mini-Photohelic® Differential Pressure Switch/Gage

Compact, Low Cost Switch/Gage

The Series MP Mini-Photohelic® Differential Pressure Switch/Gage combines the time proven Minihelic® II differential pressure gage with two SPDT switching set points. The Mini-Photohelic® switch/gage is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gage. Set points are adjusted with push buttons on the back of the unit.

NIST CALIBRATION available in Product Configurator.

Product Applications

Fume hoods
Dust collection
Pneumatic conveying
Clean room

Gage reading unaffected by switch operation and will continue to read pressure even during power loss
Visible switch status LED provides indication of set point switching state
Compact design but with the power of larger devices can meet the same application specifications

Specifications

Series: MP Mini-Photohelic® Differential Pressure Switch/Gage
Category/Type: Pressure
Type: Differential Pressure
Series: MP Mini-Photohelic® Differential Pressure Switch/Gage
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Pressure Limits: 30 psig (2.067 bar).
Temperature Limits: 20 to 120°F (-6.7 to 49°C).
Process Connections: Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
Size: 4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter.
Weight: 23 oz (652 g).
: SWITCH SPECIFICATIONS
Switch Type: (2) SPDT relays.
Electrical Rating: 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC.
Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire.
Power Requirements: 24 VDC / 24 VAC 50/60 Hz 4 W.
Mounting Orientation: Gage face in vertical position.
Set Point Adjustment: Push buttons.
Standard Accessories: (2) mounting screws; (1) .050" hex allen wrench.
Agency Approvals: CE; cULus.
