MDPC-131 | Pressure controller | range -14.5 psi to 14.5 psi | PNP output | 4 to 20 mA | outer connection 1/8" PT | inner connection M5. | Dwyer

Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 4 to 20 mA, outer connection 1/8" PT, inner connection M5.

Brand: DwyerSKU: MDPC-131

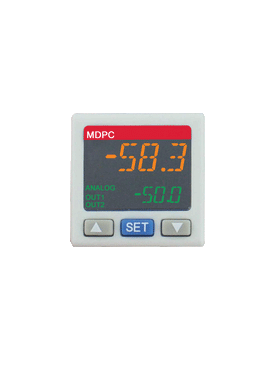

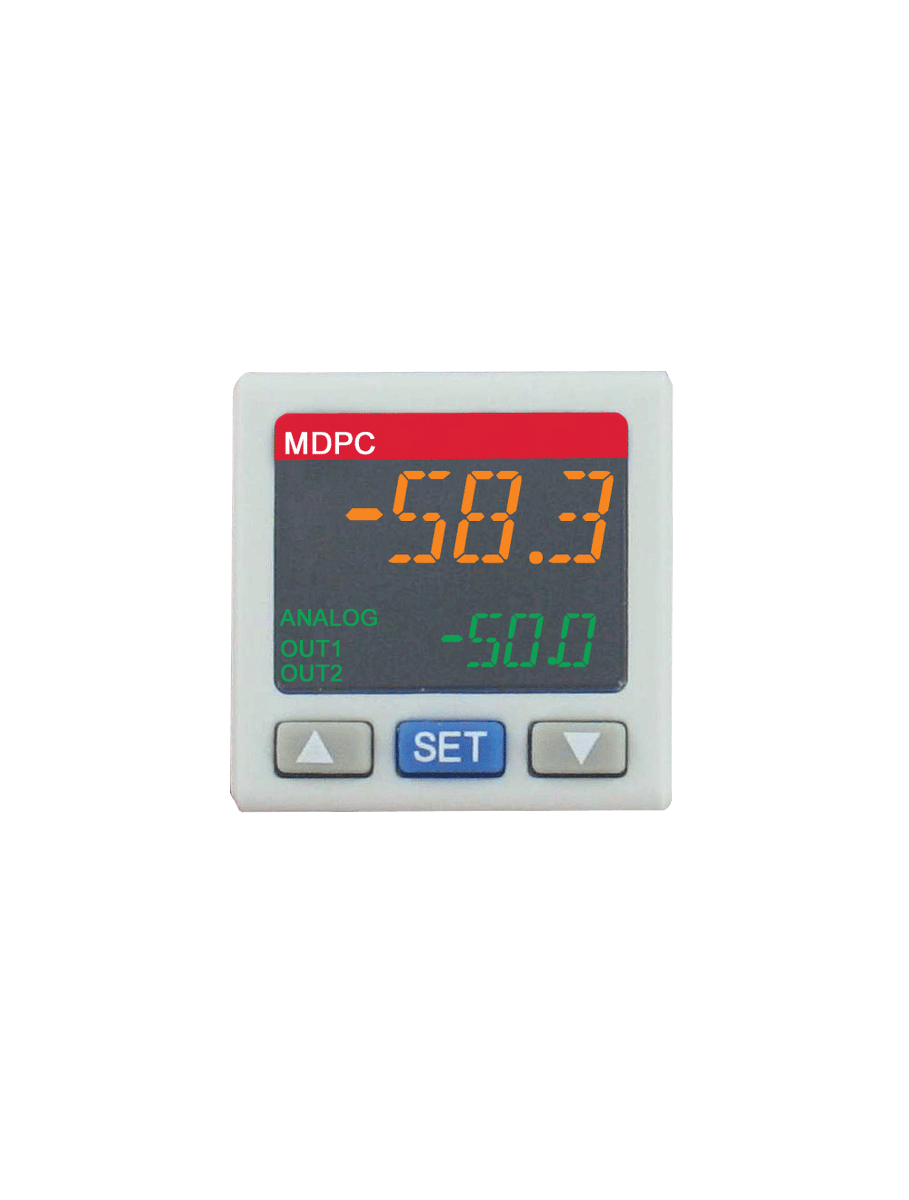

Dwyer | MDPC-131
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MDPC-131

Overview Details for MDPC-131

See catalog product page for full listing

Pressure controller | range -14.5 psi to 14.5 psi | PNP output | 4 to 20 mA | outer connection 1/8" PT | inner connection M5.

SERIES MDPC MINI DIGITAL PRESSURE CONTROLLER

Small, Lightweight, 6 Selectable Pressure Units

The Series MDPC Mini Digital Pressure Controller is a slim, gas pressure sensor that is small in size and light in weight. This pressure controller supports many installation methods and features high measurement accuracy. This small controller yields excellent stability, high shock and vibration resistance. The MDPC also provides good over-load capacity and heat resistance. It can be utilized in many industries such as: high-tech electronics, general processing, food packaging and automatic assembly. The MDPC features 6 user selectable pressure units and a large, LED 3-color display with selectable color options that allow for easy reading. Changing units is simple, and by using the included unit stickers, the pressure unit displayed becomes very clear. The fast parameter copy function makes copying parameters to other MDPC pressure controllers effortless. The key lock mode also prevents any unnecessary changes to the parameters, which can have an effect on the operation. Another characteristic of this multi-talented pressure controller is its ability to detect both positive and negative pressure. The MDPC is available in NPN, PNP, analog voltage or current output control modes.

Calibration Option available under Accessories.

California Residents:  Click Here for Proposition 65 WARNING.

  • Energy saving mode
  • 3-color display with selectable color options: green, red and orange
  • Analog output function
  • Parameter copy function
  • Unit conversion function: inHg, psi, kPa, mmHg, kg/cm² and bar
  • 10 sets of user selectable output response times
  • Key lock function
  • Fast zero reset

Specifications

Series
MDPC MINI DIGITAL PRESSURE CONTROLLER
Category/Type
Pressure
Type
Single Pressure
Series
MDPC MINI DIGITAL PRESSURE CONTROLLER
Service
Non-corrosive gas.
Wetted Materials
Brass with nickel plating.
Housing Materials
Polycarbonate; polybutylene terephthalate.
Accuracy
±3% of full range.
Pressure Limits
MDPC-1: 29 psi (200 kPa); MDPC-2: 217.6 psi (1500 kPa).
Display
2-line LCD display; 4 digits for measured value and 3.5 digits for setup display.
Power Requirements
12 to 24 VDC ±10% no isolations.
Power Consumption
40 mA max.; Current output type 60 mA max.
Process Connections
1/8" NPT; inner connection M5; for 1/8" PT contact factory.
Weight
1.3 oz (36.85 g).
Agency Approvals
CE: MDPC-121; MDPC-122; UL.
SWITCH SPECIFICATIONS
Switch Type
NPN or PNP
Electrical Rating
100 mA @ 30 VDC.
Response Time
Programmable to 2ms; 4ms; 10ms; 30ms; 50ms; 100ms; 250ms; 500ms; 1000ms or 5000ms.
Display Cycle
Programmable to 100ms; 250ms; 500ms or 1000ms.
TRANSMITTER SPECIFICATIONS
Output Signal
1 to 5 V: Minimum output load resistance 1000 Ω; 4 to 20 mA: Maximum output load resistance 400 Ω.
Zero and Span Adjustments
Menu scalable within the range.
