MCS-111050 | Solid Core Mini Current Switch. | Dwyer
Solid Core Mini Current Switch.

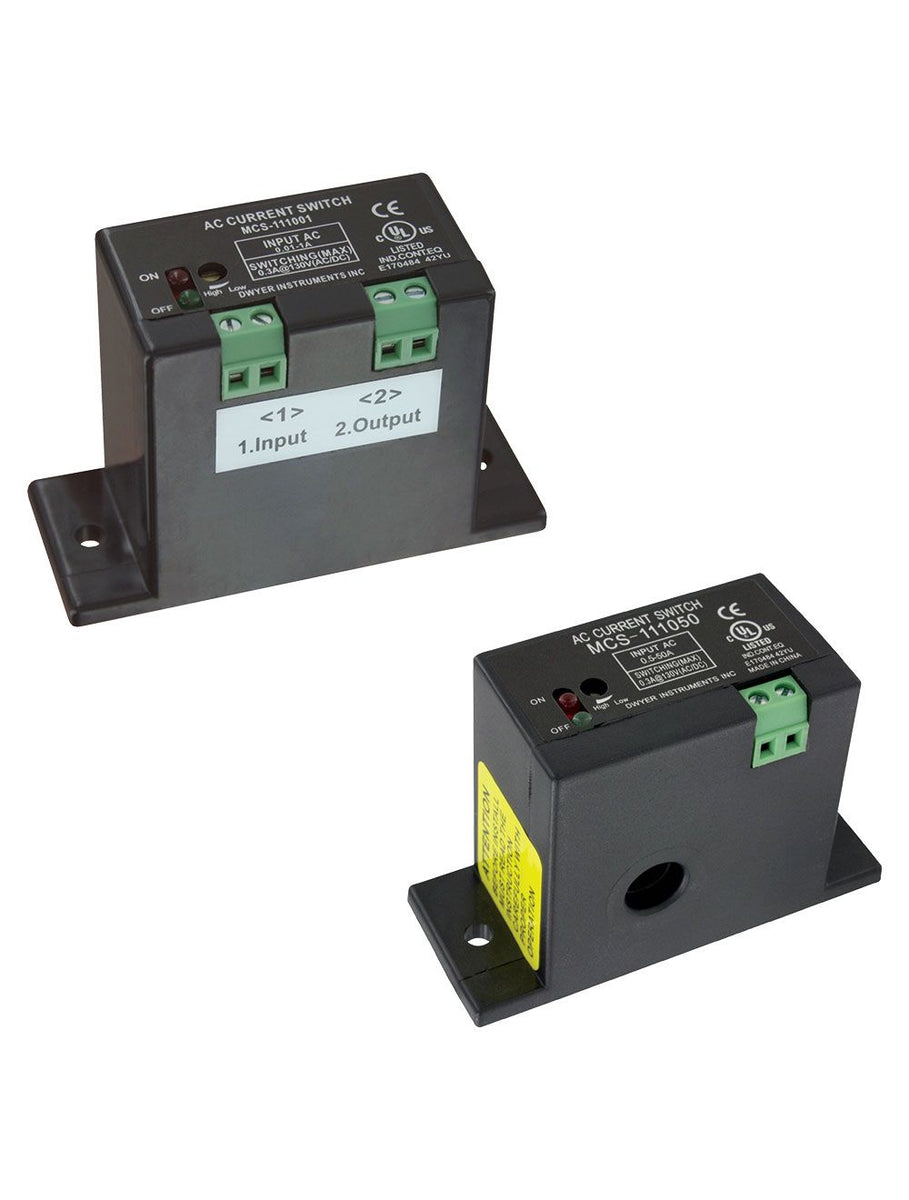

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MCS-111050
Documents and manuals
Dwyer MCS-111050 Documents
Overview
Details for MCS-111050
See catalog product page for full listing
Solid Core Mini Current Switch.
Series MCS Miniature Current Switch
Low Cost, Solid or No Core, LED Confirmation, Adjustable Set Point
The Series MCS Miniature Current Switches are ideal for monitoring the current usage in fuse boxes and small control panels. Both models have adjustable set points and LED indication to show there is power to the unit and when the switch activates. Set points can be adjusted using the potentiometer next to the LED’s. Due to the size of the switch, it is only offered in solid core and no core versions. The no core version has terminal blocks which can accept currents up to 1 A directly into the unit.
- Integral mounting flange for quick installation
- Compact size fits in any space
Specifications
- Series
- MCS Miniature Current Switch
- Category/Type
- Process Control
- Type
- Current Transformers / Switches
- Series
- MCS Miniature Current Switch
- Amperage Range
- MCS-111050: 0.5 to 50 A AC continuous; MCS-111001: 0.01 to 1 A AC continuous.
- Output Rating
- Isolated; N.O. 0.3 A @ 130 V DC/AC.
- Power Requirements
- None; self-powered.
- Hysteresis
- 1%.
- Response Time
- <200 ms.
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Humidity Limits
- 10 to 95% RH (non-condensing).
- Enclosure Rating
- UL 94V-0 flammability rated ABS; insulation class600 V.
- Weight
- 0.5 oz (14.5 g).
- Agency Approvals
- CE; RoHS; cUL; UL.
