MCS-111001 | No Core Terminal Connect Mini Current Switch. | Dwyer

No Core Terminal Connect Mini Current Switch.

Brand: DwyerSKU: MCS-111001

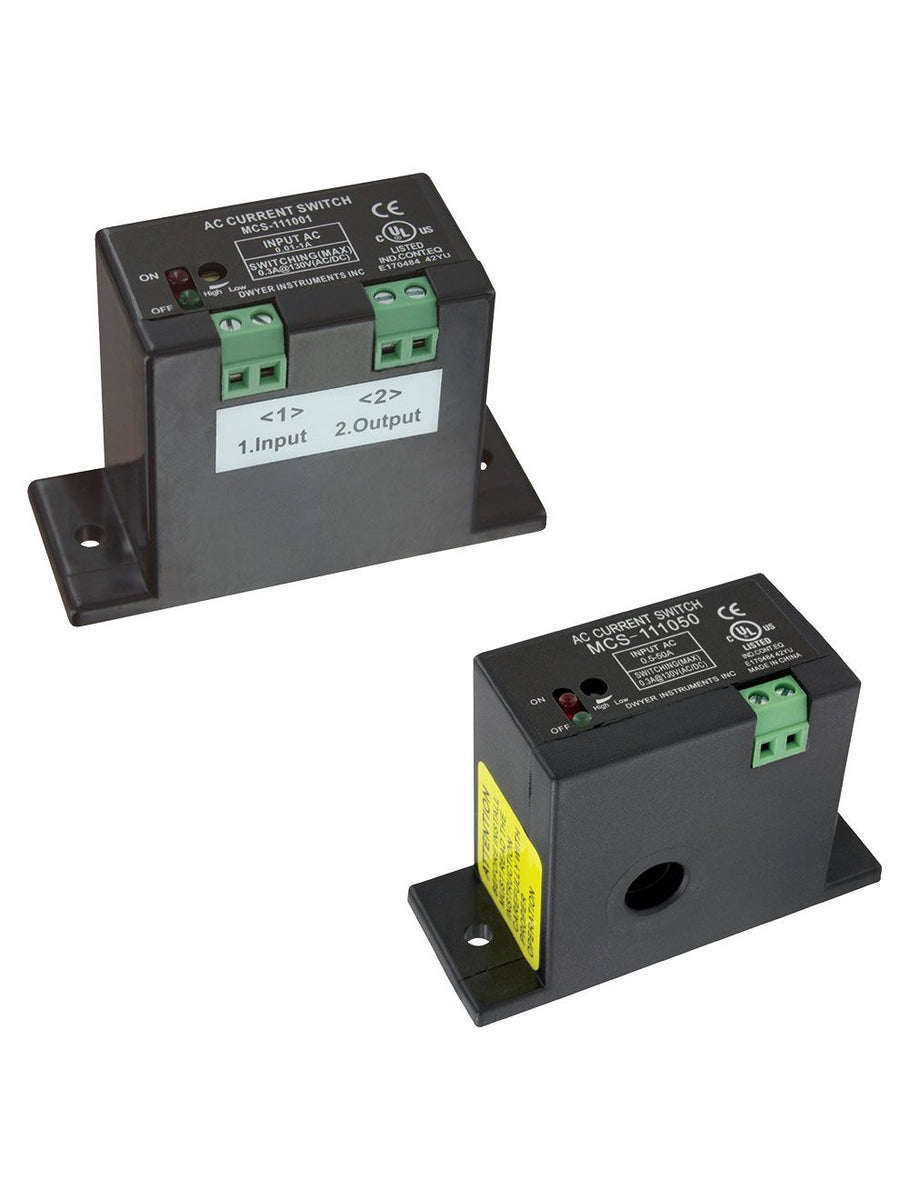

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MCS-111001

Jump to: Overview & Specifications Reviews

Overview Details for MCS-111001

See catalog product page for full listing

No Core Terminal Connect Mini Current Switch.

Series MCS Miniature Current Switch

Low Cost, Solid or No Core, LED Confirmation, Adjustable Set Point

The Series MCS Miniature Current Switches are ideal for monitoring the current usage in fuse boxes and small control panels. Both models have adjustable set points and LED indication to show there is power to the unit and when the switch activates. Set points can be adjusted using the potentiometer next to the LED’s. Due to the size of the switch, it is only offered in solid core and no core versions. The no core version has terminal blocks which can accept currents up to 1 A directly into the unit.

Integral mounting flange for quick installation
Compact size fits in any space

Specifications

Series: MCS Miniature Current Switch
Category/Type: Process Control
Type: Current Transformers / Switches
Series: MCS Miniature Current Switch
Amperage Range: MCS-111050: 0.5 to 50 A AC continuous; MCS-111001: 0.01 to 1 A AC continuous.
Output Rating: Isolated; N.O. 0.3 A @ 130 V DC/AC.
Power Requirements: None; self-powered.
Hysteresis: 1%.
Response Time: <200 ms.
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 10 to 95% RH (non-condensing).
Enclosure Rating: UL 94V-0 flammability rated ABS; insulation class600 V.
Weight: 0.5 oz (14.5 g).
Agency Approvals: CE; RoHS; cUL; UL.
