MARK II 40-250PA-AV | Molded plastic manometer | range 0-260 Pa & 0-21 mps | red fluid | .826 sp. gr. | requires Pitot tube sold separately. | Dwyer

Molded plastic manometer, range 0-260 Pa & 0-21 mps, red fluid, .826 sp. gr., requires Pitot tube sold separately.

Brand: DwyerSKU: MARK II 40-250PA-AV

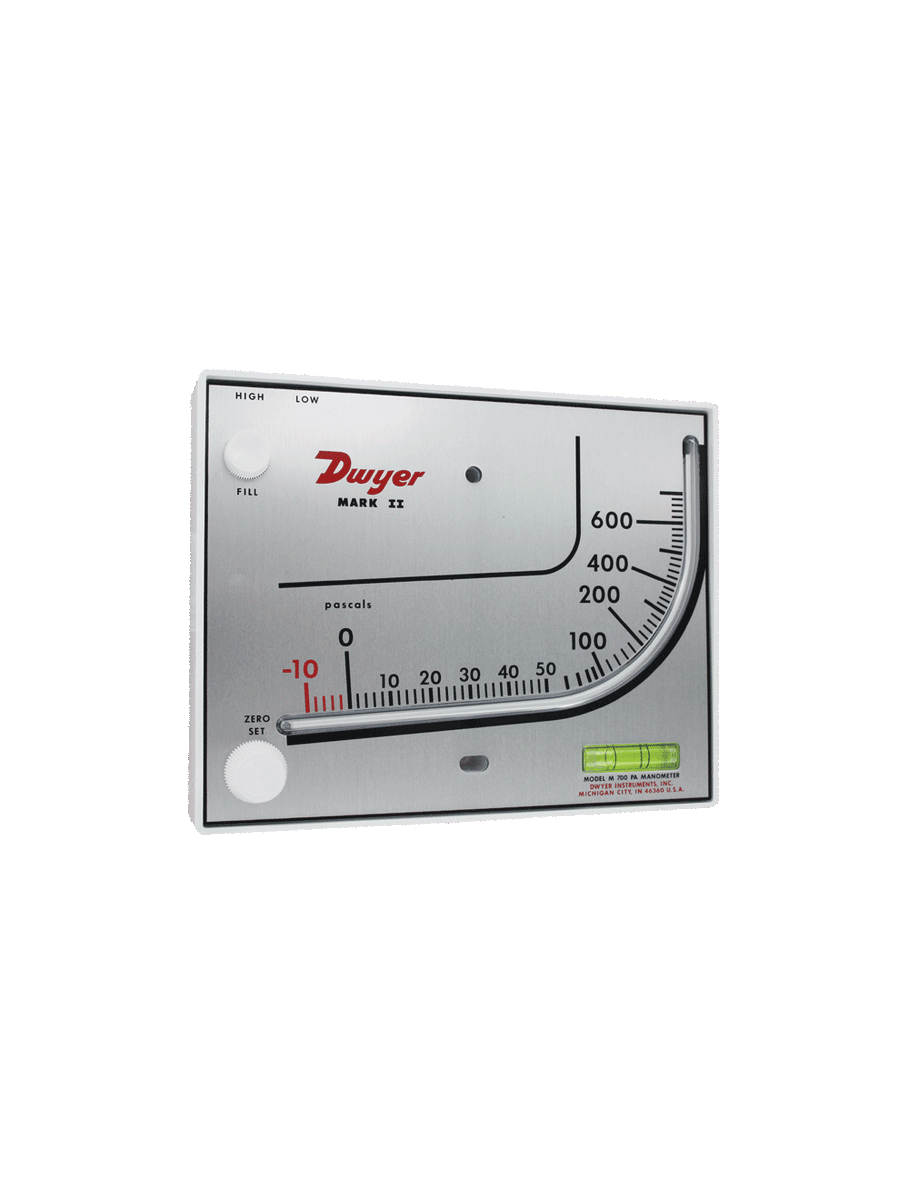

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MARK II 40-250PA-AV

Jump to: Overview & Specifications Reviews

Overview Details for MARK II 40-250PA-AV

See catalog product page for full listing

Molded plastic manometer | range 0-260 Pa & 0-21 mps | red fluid | .826 sp. gr. | requires Pitot tube sold separately.

SERIES MARK II MOLDED PLASTIC MANOMETERS

3% Accuracy for Stationary and Portable Applications

Series Mark II Molded Manometers are of the inclined and inclined-vertical types. The curved inclined-vertical tube of the Model 25 gage provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work. The Model 40 inclined gage provides linear calibration and excellent resolution throughout its range. The Model 40 is ideally suited for air velocity and air filter gage applications. Both gage types are capable of pressure measurements above and below atmospheric as well as differential pressure measurements. Included with each Mark II manometer are two tubing connectors for 1/8" pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
The Model 25 also includes 8' of flexible double column plastic tubing. Portable operation of the Model 25 is made possible by the use of the optional A-612 portable stand. A short piece of tubing can be slipped over the Model 25 pressure connections to contain the gage fluid in transit.
The Model 40 contains two 4-1/2' lengths of clear plastic tubing, a plastic swing-out stand and leveling screw for portable operation. It also features convenient rapid shutoff pressure connections and integral overpressure safety traps.

Click here, if you require a Safety Data Sheet for the Blue Gage Fluid or the Red Gage Fluid.

Product Applications

Paint booths
Air velocity measurement
Air filter gage

Broad ranging in easy to read calibrated increments
Gages ideally suited for general measurements and specific air applications
Compact, stationary or portable device, make it a simple to use tool for pressuremeasurement in OEM or user applications

Specifications

Series: MARK II MOLDED PLASTIC MANOMETERS
Category/Type: Pressure
Type: Manometers
Series: MARK II MOLDED PLASTIC MANOMETERS
: INCLINED/VERTICAL
Accuracy: ±3% FS.
Temperature Limits: 140°F (60°C).
Pressure Limits: 10 psi (70 kPa).
Weight: 1.04 lb (472 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: INCLINED
Accuracy: ±3% FS.
Temperature Limits: 150°F (65°C).
Pressure Limits: 15 psi (100 kPa).
Scale Length: Approx. 8-1/4" (21 cm).
Weight: 1.23 lb (558 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
