LPG5-D8042N | 2.5" low pressure gage | dual range 0-10" w.c.(0-2.5 kPa) | back connection | Dwyer
2.5" low pressure gage, dual range 0-10" w.c.(0-2.5 kPa), back connection
Documents and manuals
Dwyer LPG5-D8042N Documents
Overview
Details for LPG5-D8042N
2.5" low pressure gage | dual range 0-10" w.c.(0-2.5 kPa) | back connection

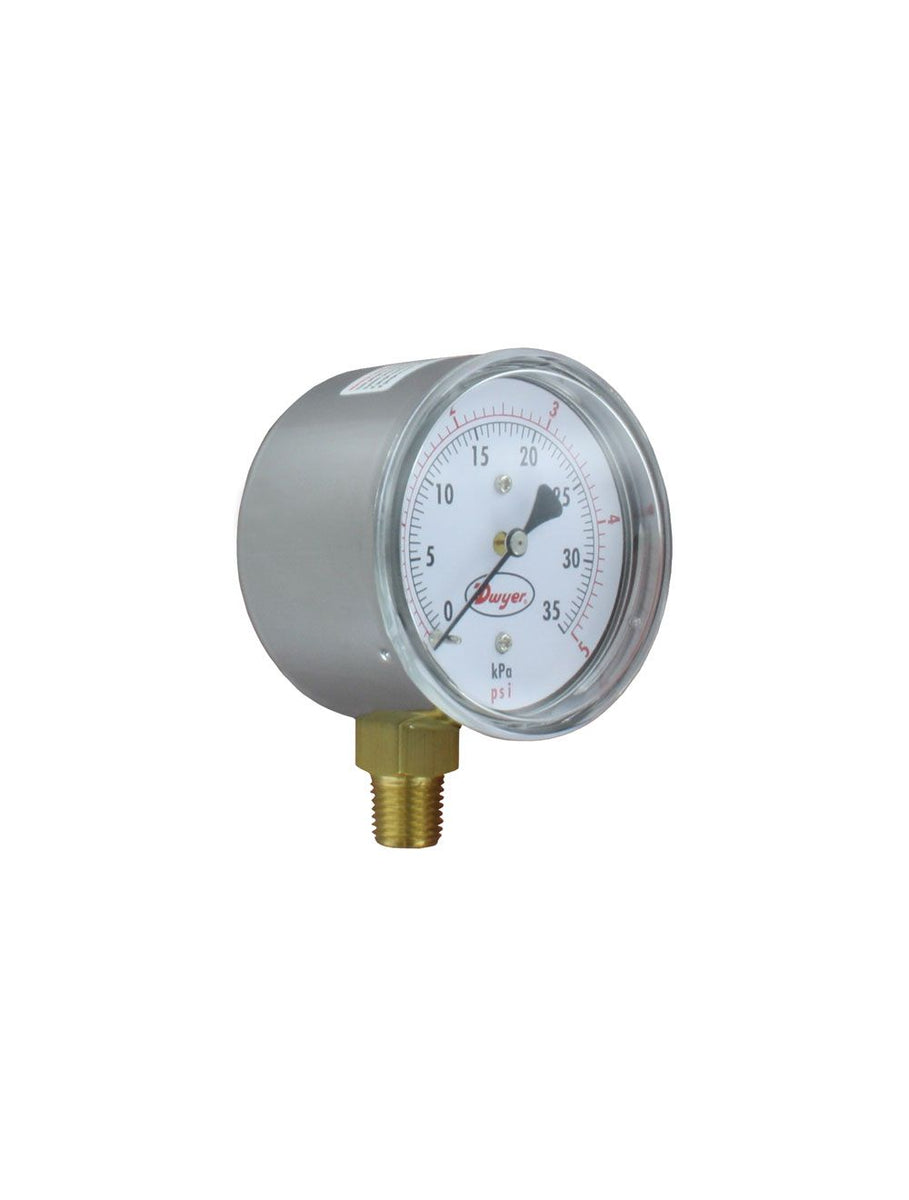

SERIES LPG5 2.5" LOW PRESSURE GAGE
The Series LPG5 Low Pressure Gages offer top of the line performancefor pressure applications from 10 in. w.c. to 10 psi. The LPG5 gages possessdual scales with 3-2-3% full-scale accuracy on a 2.5" dial. Units are made with achrome plated steel housing and brass wetted parts. Units can withstandtemperatures of -4 to 140°F (-20 to 60°C). This series is meant for themeasurement of low pressures of gases and liquids and is ideal for air flowindication, liquid level and draft measurement. Series LPG5 gages are availablewith either a bottom or back connection option.
Calibration Option available under Accessories.
Product Applications
- Air flow indication
- Liquid level
- Draft measurement
- Chrome plated steel housing and brass wetted parts resist ambient for longer servicelife in harsh environments
- Low pressure gage provides a selection to meet specific applications
- Specified with high ambient and process temperature ratings mean more robustuses and longer service-life
- Good accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
Specifications
- Series
- LPG5 2.5" LOW PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- LPG5 2.5" LOW PRESSURE GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connection; bronze tube.
- Housing
- Chrome plated steel.
- Lens
- Polycarbonate.
- Accuracy
- ± 3-2-3% FS.
- Pressure Limits
- Full scale range.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Size
- 2.5" (63 mm).
- Process Connections
- 1/4" male NPT.
- Weight
- 8 oz (227g).
