LPG4-D8522N | Low pressure gage | range 0-80" w.c. (0-20 kPa). | Dwyer

Low pressure gage, range 0-80" w.c. (0-20 kPa).

Brand: DwyerSKU: LPG4-D8522N

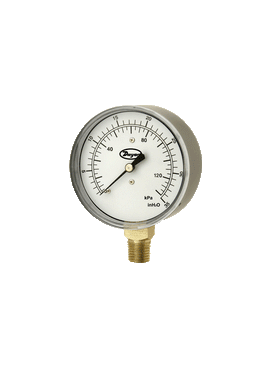

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LPG4-D8522N

Jump to: Overview & Specifications Reviews

Overview Details for LPG4-D8522N

See catalog product page for full listing

Low pressure gage | range 0-80" w.c. (0-20 kPa).

SERIES LPG4 2.5" LOW PRESSURE GAGE

1.5% Full Scale Accuracy in a 2.5" Gage

Our Series LPG4 2.5" Low Pressure Gage offers top of the line performance and accuracy for pressure and vacuum applications up to and including 160 in w.c. The LPG4 is constructed from a single beryllium-copper diaphragm affixed to a precision-machined brass plate. This innovative design, together with a high-precision, milled-teeth brass movement and nickel-silver pinion and bearing surface, provide the user with a top of the line low pressure instrument.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air flow indication
Liquid level
Draft measurement

Low pressure gage provides a selection to meet specific applications
Specified with high ambient and process temperature ratings mean more robustuses and longer service-life
High accuracy gage for applications requiring more precise measurement is aconcern

Specifications

Series: LPG4 2.5" LOW PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: LPG4 2.5" LOW PRESSURE GAGE
Service: Compatible gases & liquids.
Wetted Materials: Brass and beryllium copper.
Housing: Drawn steel; black finish.
Lens: Polycarbonate (removable).
Accuracy: ±1.5% FS.
Pressure Limit: 100% of range scale.
Temperature Limits: Process: -40 to 160°F (-40 to 70°C); Ambient: -40 to 140°F (-40 to 60°C).
Size: 2.5" (63 mm)
Process Connections: 1/4" male NPT.
Enclosure Rating: NEMA 3 (IP54).
Weight: 7.3 oz (0.21 kg).
