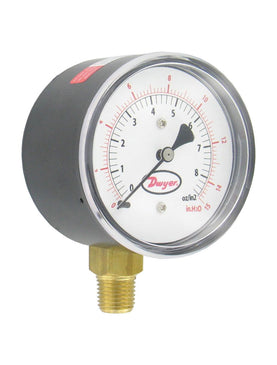

LPG3-D8422N | Low pressure gage | range 0-55" w.c. (0-32.0 oz/in²). | Dwyer
Low pressure gage, range 0-55" w.c. (0-32.0 oz/in²).
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LPG3-D8422N
Documents and manuals
Dwyer LPG3-D8422N Documents
Overview
Details for LPG3-D8422N
See catalog product page for full listing
Low pressure gage | range 0-55" w.c. (0-32.0 oz/in²).
SERIES LPG3 LOW PRESSURE GAGE
1.6% FS Accuracy in a 2-1/2" Gage
Series LPG3 Low Pressure Gages are designed to be especially sensitive with an elastic element that expands and contracts with very small changes in pressure for ASME Grade A accuracy. This series is meant for the measurement of low pressures of gases and liquids and is ideal for air flow indicators, liquid level indicators and draft gages. Our new low pressure gages are available in 2-1/2" dial with either a bottom or back connection option.
Specifications
- Series
- LPG3 LOW PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- LPG3 LOW PRESSURE GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass.
- Housing Materials
- Steel with black finish.
- Lens
- Polycarbonate.
- Accuracy
- 1.6 % FS. ANSI B40.1 Grade 1A.
- Pressure Limit
- 110%.
- Temperature Limits
- -40 to 150°F (-40 to 65°C).
- Size
- 2-1/2" (63 mm)
- Process Connections
- 1/4" NPT; bottom or back.
- Weight
- 6.5 oz (184 g).
