LFME-12-F2 | Polycarbonate flowmeter | range 1.2-12 GPM (5-50 LPM) water | 1" male NPT | 316 SS float. | Dwyer
Polycarbonate flowmeter, range 1.2-12 GPM (5-50 LPM) water, 1" male NPT, 316 SS float.

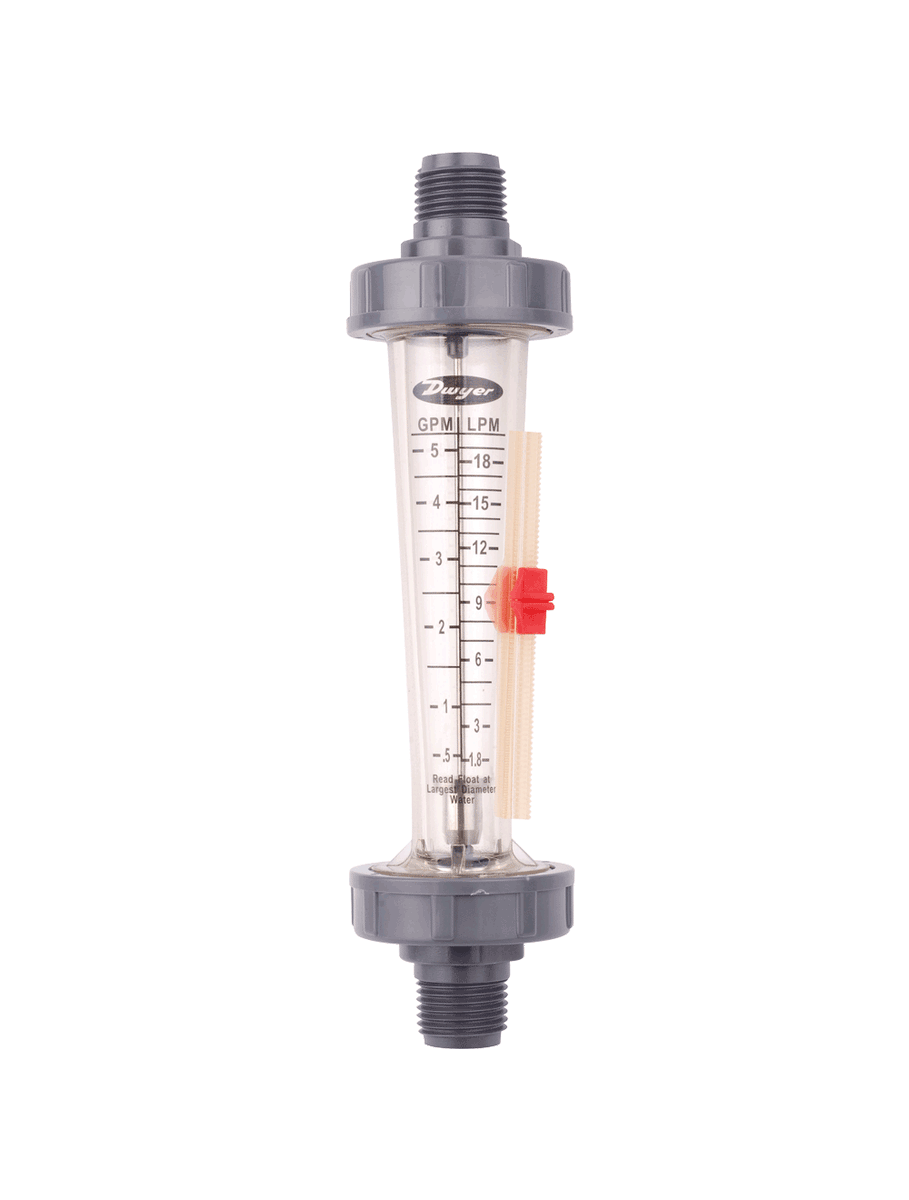

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LFME-12-F2
Documents and manuals
Dwyer LFME-12-F2 Documents
Overview
Details for LFME-12-F2
See catalog product page for full listing
Polycarbonate flowmeter | range 1.2-12 GPM (5-50 LPM) water | 1" male NPT | 316 SS float.
Series LFM Polycarbonate Flowmeters
Chemically Resistant, In-Line or Panel Mount Options, Adjustable Set Point Indicator Option
The Series LFM Polycarbonate Flowmeters are made of precision, injection molded polycarbonate bodies and fittings. This series consists of LFMA, LFMB, LFMC, LFMD, LFME and LFMF flowmeters with 3" (76 mm), 6" (152 mm), 5" (127 mm), 6" (152 mm), 8" (203 mm) and 11" (279 mm) respective scales. They feature dual, direct reading scales measuring in both GPM and LPM.
CAUTION: Series LFM Flowmeters are for indoor use only or areas without direct sunlight. Polycarbonate is adversely affected by ultraviolet light.
Calibration Option is available in the Accessory tab.
Product Applications
- Chill water flow
- Reverse osmosis systems
- Deionized water systems
- Low installation costs with standard in-line male NPT process connections and 90° elbow fitting for panel mount option
- Heat and chemically resistant polycarbonate body and fittings feature a low cost for high durability
- Textured background on flowmeter bodies enhance scale readability saving time
- Easy to clean bodies yield low maintenance costs
- Adjustable set point indicator allows for easy visual set point indication decreasing costly flow reading error for LFMC, LFMD, LFME & LFMF
Specifications
- Series
- LFM Polycarbonate Flowmeters
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- LFM Polycarbonate Flowmeters
- Service
- Water.
- Wetted Materials
- Body: Polycarbonate; Flange nut: ABS; Float stop: LFMA; LFMB; LFMC: ABS; LFMD; LFME; LFMF: Polypropylene; O-rings: Fluoroelastomer; Rod & float: 316 SS; Connections: 20 mm & 63 mm metric union fittings: ABS; 32 mm & 40 mm metric union fittings: PVC; 1/2" & 3/4" male NPT fittings for LFMA; LFMB; LFMC: ABS; 3/4" male and female NPT fittings for LFMD: PA66 nylon; 1" & 2" male NPT fittings: PA66 nylon.
- Pressure Limit
- 87 psi (6 bar) at 68°F (20°C); 90° elbow fittings 116 psi (8 bar) at 68°F (20°C).
- Accuracy
- ±5%.
- Process Connection
- LFMA: 1/2" male NPT. Optional 20 mm metric union; LFMB: 1/2" male NPT. Optional 20mm metric union or 1/2" male NPT with 90° elbow; LFMC: 1/2" male NPT. Optional 20 mm metric union; 3/4" male NPT; or 1/2" male NPT with 90° elbow; LFMD: 3/4" male NPT. Optional 32 mm metric union; 3/4" female NPT; or 3/4" male NPT with 90° elbow; LFME: 1" male NPT. Optional 40 mm metric union; 1" female NPT; or 1" male NPT with 90° elbow; LFMF: 2" male NPT. Optional 63 mm metric union or 2" female NPT.
- Weight
- LFMA: 2 oz (56.7 g); LFMB: 3 oz (85.0 g); LFMC: 4 oz (113.4 g); LFMD: 10oz (283.5 g); LFME: 15 oz (425.2 g); LFMF: 40 oz (1.1 kg).
- CAUTION: Series LFM Flowmeters are for indoor use only or areas without direct sunlight. Polycarbonate is adversely affected by ultraviolet light.
