LCT216-110 | Digital timer/tachometer/counter | relay output. | Dwyer

Digital timer/tachometer/counter, relay output.

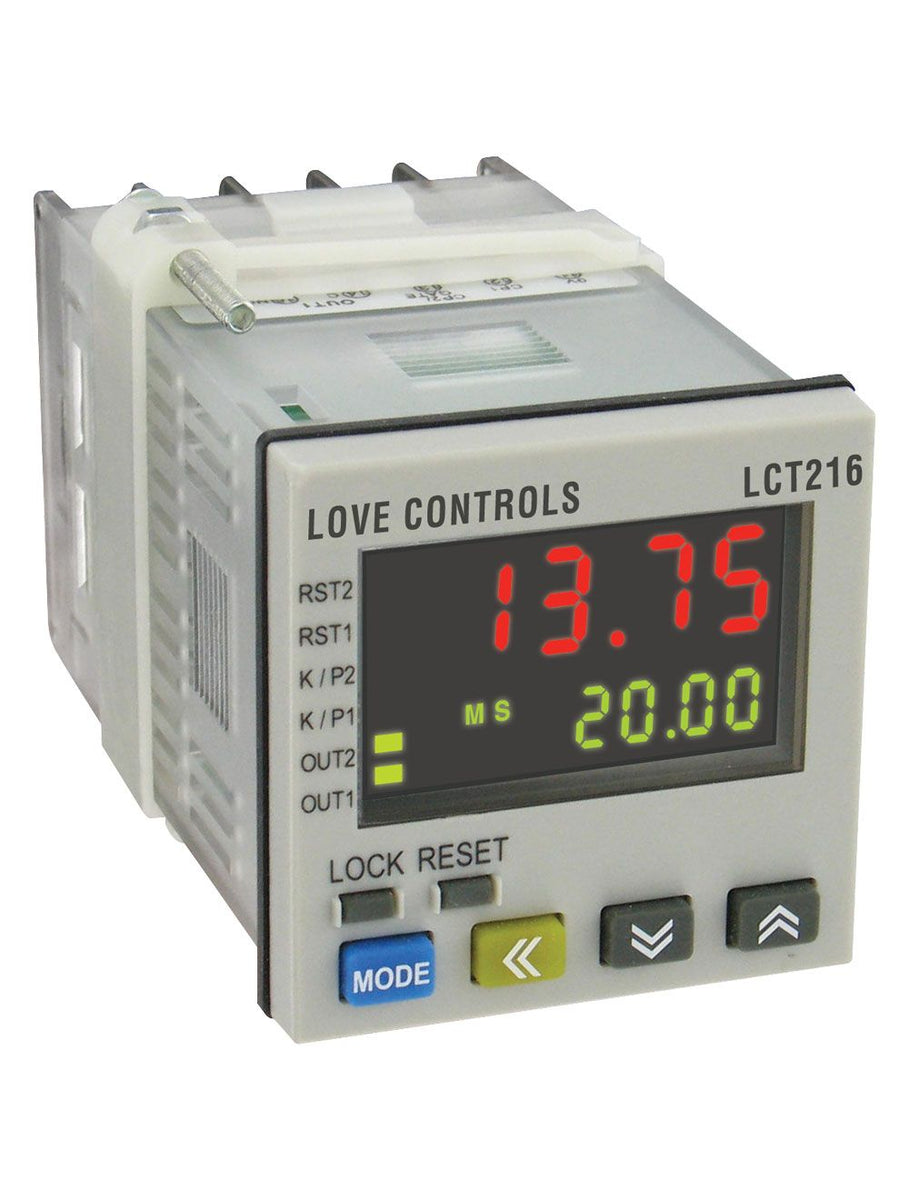

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LCT216-110

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer LCT216-110 Documents

Instruction Manual Series LCT216 Catalog Page More Info

Overview

Details for LCT216-110

See catalog product page for full listing

Digital timer/tachometer/counter | relay output.

SERIES LCT216 DIGITAL TIMER / TACHOMETER / COUNTER

3 Controls in 1 Device, DIP Switch Configuration

The Series LCT216 Digital Timer / Tachometer / Counter combines a versatile timer, counter, and tachometer in one device. The bright, easy-to-read display shows both the desired set point and the current process value as well as the operating mode that the control is functioning in. The fourteen pre-programmed timer functions are easy to set up and cover most applications. The counting functions include one stage or two-stage counting along with batch, total, or dual counting modes. The Series LCT216 can also be used as a tachometer to measure rotational speeds. For quick setup, many of the programming parameters can be set with external dip switches located on the side of the unit.

Product Applications

Industrial ovens
Batch counting in conveyor systems
Silk screening equipment

Fourteen pre-programmed timer functions
One stage, two-stage, batch, total, and dual counting modes

Specifications

Series: LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
Category/Type: Process Control
Type: Timers
Series: LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
Operating Temperature Ranges: 32 to 122°F (0 to 50°C).
Humidity Conditions: 35 to 85% RH (non-condensing).
Control Output Ratings: (Out 1) Relay: SPST 5A at 250 VAC; Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max; (Out 2) Relay: SPST 5A at 250 VAC; Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max.
Reset Time: 0.001 s. minimum.
Inputs: Dry contact; PNP; or NPN.
Timing Functions: 14 pre-programmed timing functions.
Power Requirements: 100 to 240 VAC 50 / 60 Hz.
Power Consumption: Less than 10 VA.
Internal Power Supply: 12 VDC ±10%; 100 mA.
Display: Two-line 6 digit negative transmissive LCD display.
Weight: 4 oz (114 g).
Agency Approvals: CE; UL.
